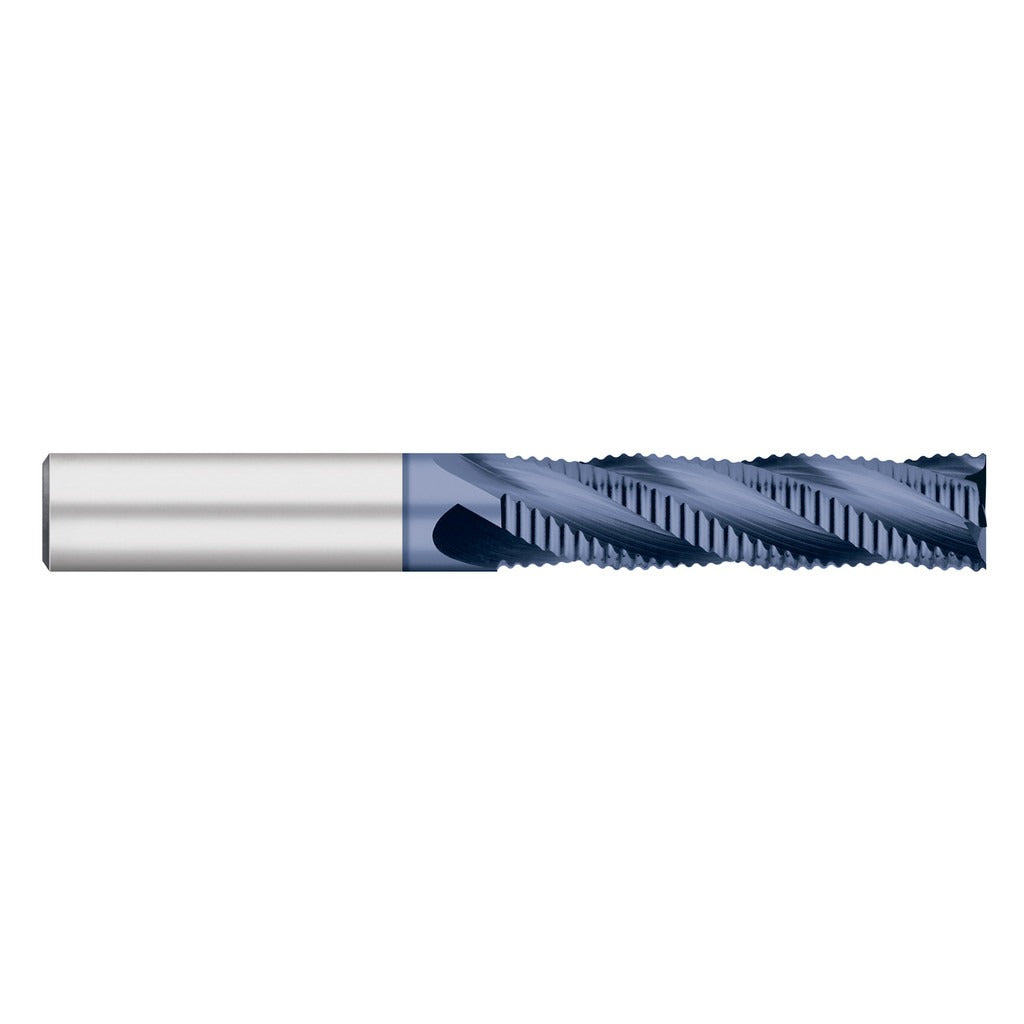

Titan Usa TC29650 Roughing End Mill 3/4 in 4 Flute Carbide

Product Description

The TITAN USA TC29650 is a solid carbide roughing end mill designed for aggressive material removal in CNC milling operations. Built with four flutes, a fine pitch roughing profile, and a square end geometry, this tool generates smaller chips and reduces cutting forces compared to standard end mills. The AlTiN coating provides high heat resistance and extended tool life in ferrous and hardened materials. The 3/4-inch diameter with a matching 3/4-inch shank and a 3-inch length of cut makes it well suited for deep-pocket roughing passes where rigidity and chip evacuation both matter.

This end mill fits general-purpose roughing applications in job shops, production machining, and toolroom environments. It is used in vertical and horizontal CNC machining centers for roughing steel, stainless steel, cast iron, and similar ferrous alloys. The right-hand cutting and right-hand spiral flute direction are standard for conventional climb-milling setups. The single-end configuration and centercutting capability allow plunge entry where required. Machinists running steel or hardened materials at moderate-to-high speeds will find the fine pitch pattern effective at managing vibration and chatter during heavy cuts.

Key Features

• Solid carbide construction for high rigidity and wear resistance
• AlTiN coating for elevated heat resistance and extended tool life in ferrous materials
• Fine pitch roughing profile reduces cutting forces and controls chatter
• 4-flute, right-hand spiral geometry with square end and centercutting capability
• 3/4-inch shank diameter matches cutter diameter for secure toolholder engagement
• 30-degree helix angle supports efficient chip evacuation during deep passes

Compatibility

Designed as an OEM-style replacement or direct-use roughing end mill for CNC machining centers and manual mills accepting a 3/4-inch straight shank toolholder.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool. Seat the shank to the full depth recommended by the toolholder manufacturer and verify runout with a dial indicator before initiating a cut. Follow shop-specific feeds, speeds, and depth-of-cut parameters based on the workpiece material and machine capability.
