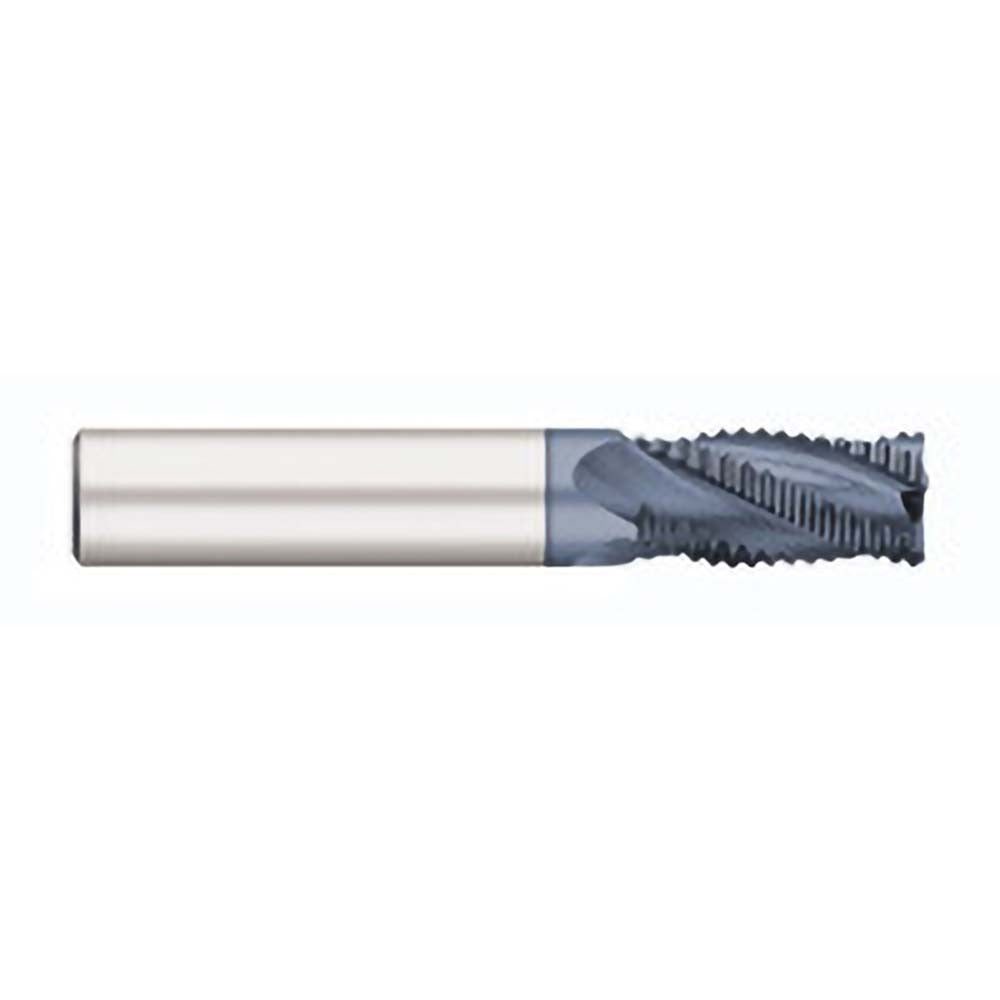

Titan Usa TC29540 Roughing End Mill 5/8 in Solid Carbide

Product Description

The TITAN USA TC29540 is a solid carbide roughing end mill designed for aggressive material removal in milling operations. Built with 4 flutes and a fine-pitch spiral geometry, it generates smaller chips and reduces vibration during heavy cuts. The square end profile produces sharp, defined shoulders on workpiece features. At 5/8 inch in diameter with a 1-5/8 inch length of cut and 3-1/2 inch overall length, this is a regular-length tool suited for standard milling depths. An AlTiN coating improves heat resistance and extends tool life in ferrous and high-temp alloy cutting applications. Machinists and tool-and-die professionals are the primary installers of this tool.

This roughing end mill is used in CNC vertical and horizontal milling operations across job shops, production machining, and tool-and-die environments. It is particularly suited for roughing passes on steel, stainless steel, and similar ferrous materials where rapid stock removal is the priority. The single-end, right-hand cutting and right-hand flute direction make it compatible with standard spindle configurations. The centercutting design allows plunge milling where the application requires it.

Key Features

• 5/8 inch diameter with 5/8 inch shank for direct collet or end mill holder mounting
• 4-flute fine-pitch geometry reduces chip load per tooth during roughing passes
• AlTiN coating provides oxidation resistance and hardness at elevated cutting temperatures
• Centercutting capable for plunge entry without a pre-drilled pilot hole
• Right-hand cut and right-hand spiral for use in standard CNC mill spindle configurations
• Solid carbide construction delivers rigidity and wear resistance over high-speed steel alternatives

Compatibility

Designed as an OEM-style solid carbide roughing end mill for use in standard CNC or manual milling machines accepting a 5/8 inch shank via collet, end mill holder, or hydraulic chuck.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before inserting or removing any end mill. Ensure the shank is fully seated and properly torqued in the holder per the toolholder manufacturer specifications. Inspect the cutting edges for chips or wear before each use, and verify runout with a dial indicator after setup to confirm concentricity.
