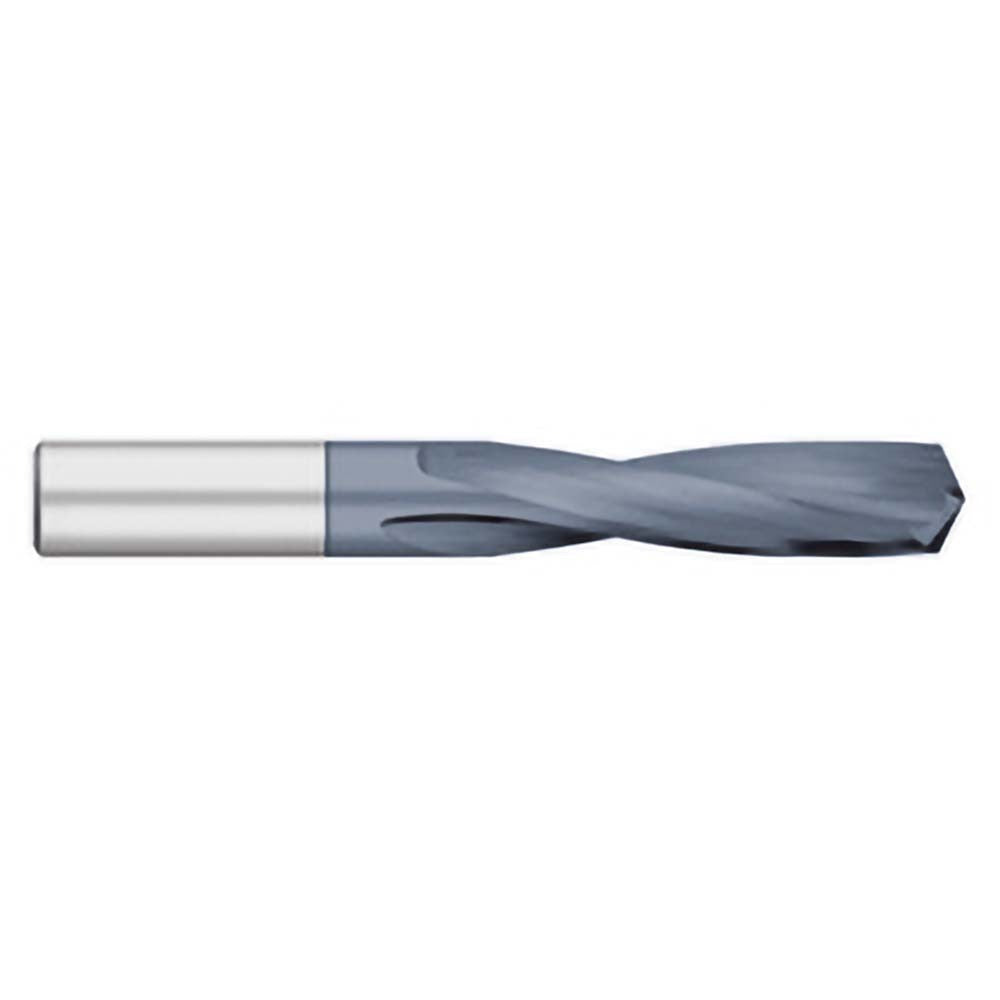

Titan Usa TC29010 Screw Machine Drill Bit 5/32 in Carbide

Product Description

The TITAN USA TC29010 is a screw machine length drill bit designed for high-performance drilling in metal fabrication, machining, and industrial maintenance applications. Built from solid carbide and coated with AlTiN (aluminum titanium nitride), this bit handles hardened steels, stainless, cast iron, and abrasive alloys where high-speed steel tooling fails. The 135-degree split point geometry reduces walking on entry and lowers thrust force, letting the bit start cleanly without a center punch on flat stock. At 2 inches overall length, the stub-length format provides rigidity and minimizes deflection in short-reach drilling operations.

This bit is sized at 5/32 inch (0.1563 inch decimal) and fits within the 0.1500 to 0.2000 inch drill bit size range. It is suited for use in CNC machining centers, drill presses, and handheld power tools where a straight cylindrical shank is compatible. The 7/8 inch flute length and regular spiral geometry promote consistent chip evacuation in shallow-to-moderate depth holes. Machinists and maintenance technicians working in job shops, production floors, and field repair environments are the primary users of this bit.

Key Features

• Solid carbide construction for hardness and heat resistance in demanding materials
• AlTiN coating extends tool life in high-temperature cutting conditions
• 135-degree split point reduces entry thrust and eliminates walking on flat surfaces
• Screw machine (stub) length provides rigidity and reduces deflection during drilling
• Right-hand cutting with regular spiral flute for standard chip evacuation
• Straight cylindrical shank fits standard drill chucks and collets

Compatibility

Designed as an OEM-style replacement screw machine length drill bit compatible with standard straight-shank drill chucks and collets in the 0.1500 to 0.2000 inch size range.

Installation Notes

Installation and use of this drill bit should be performed by machinists or qualified trade professionals familiar with cutting tool selection and machine operation. Secure the shank fully in the chuck or collet before operation and verify runout is within acceptable limits for the application. Always power down and de-energize the machine before changing tooling. Do not exceed the recommended feed and speed parameters for the workpiece material and machine spindle.
