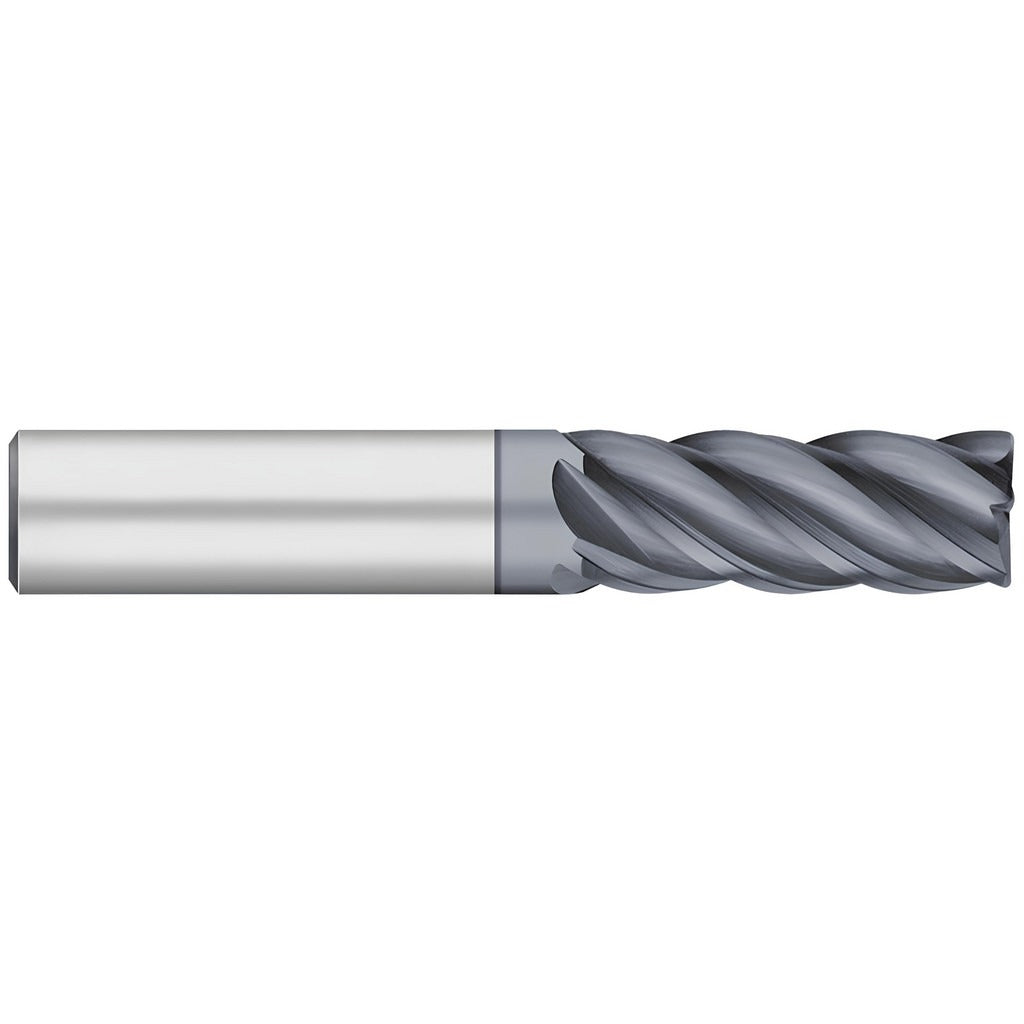

Titan Usa TC27127 Corner Radius End Mill 1/2 in 5 Flute

Product Description

The TITAN USA TC27127 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. With a 1/2 inch diameter, 5 flutes, and a 0.03 inch corner radius, it delivers both roughing and finishing capability in a single tool. The AlCromax (ALCRO-MAX) PVD coating provides thermal resistance and wear protection suited to hard and abrasive workpiece materials. The long-length geometry features a 2 inch length of cut and 4 inch overall length, giving machinists extended reach in deep-pocket and slotting operations. Right-hand cutting and right-hand flute direction are standard. Installation is handled by machining professionals using compatible straight-shank toolholders.

This end mill is built for cutting superalloys, titanium alloys, Inconel, stainless steel, cast iron, alloy steel, and other ferrous and high-temperature alloy materials. The high helix angle promotes efficient chip evacuation and smooth cutting action in tough materials. The corner radius geometry reduces edge chipping and extends tool life compared to sharp-corner profiles, making it well suited for finishing contoured surfaces and pocket floors in aerospace, mold-making, and precision machining environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• ALCRO-MAX PVD coating for thermal protection in superalloy and stainless steel cutting
• 0.03 inch corner radius reduces edge stress and improves surface finish
• 5-flute, high-helix design supports both roughing and finishing in a single pass
• Long-length geometry with 2 inch reach for deep-pocket and extended-reach applications
• Right-hand cut, straight-cylindrical shank compatible with standard toolholders

Compatibility

Designed for use with standard straight-shank toolholders accepting a 1/2 inch shank diameter. Intended for CNC machining centers cutting superalloys, titanium alloys, Inconel, stainless steel, cast iron, and alloy steel workpieces.

Installation Notes

Installation is performed by qualified machining professionals on CNC milling equipment. Ensure the toolholder collet or chuck is clean and properly torqued before operation. Confirm spindle direction matches the right-hand cutting designation of this tool before starting the machine. Follow your machine tool manufacturer guidelines and applicable shop safety procedures when changing cutting tools.
