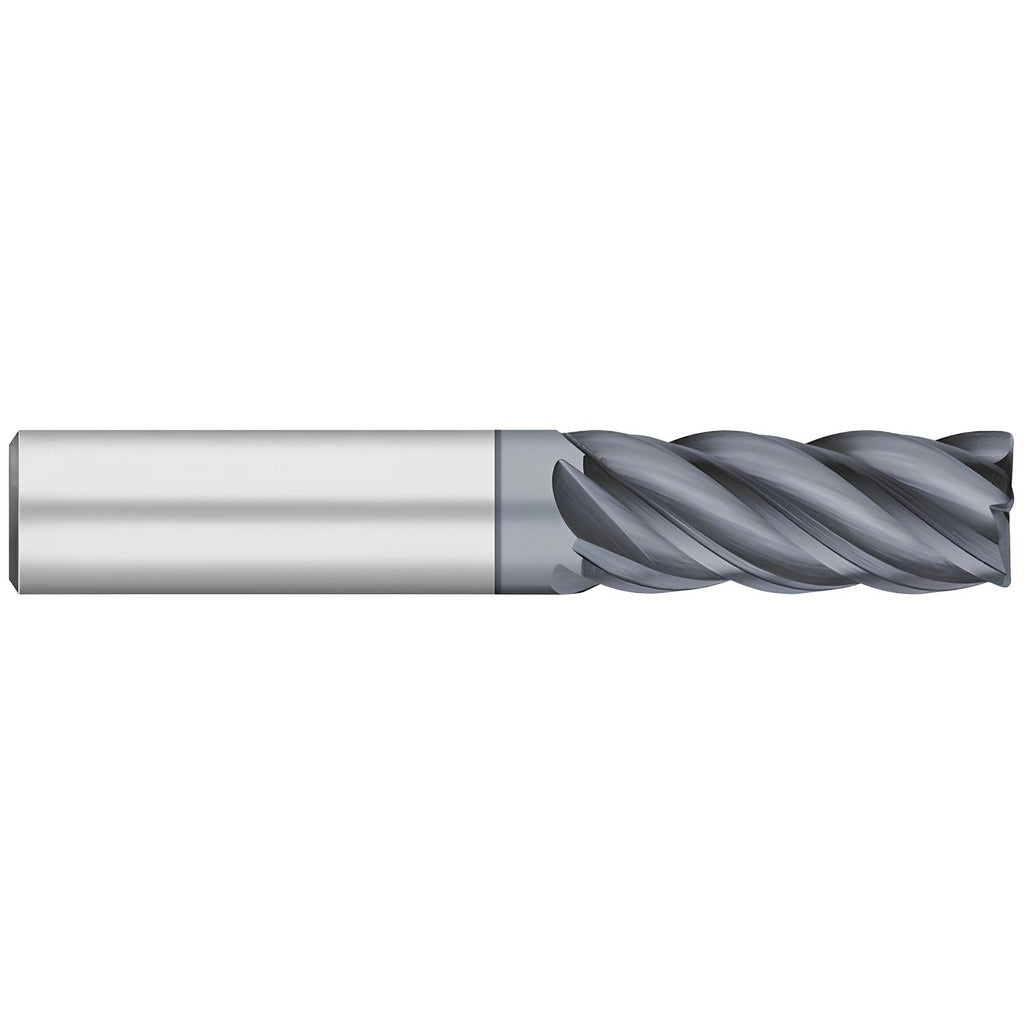

Titan Usa TC26461 Corner Radius End Mill 1/2 in 5 Flute

Product Description

The TITAN USA TC26461 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. It features a 1/2 inch diameter, a 1-1/4 inch length of cut, and a 0.03 inch corner radius that reduces stress concentration at the cutting edge and extends tool life in interrupted cuts. The five-flute, right-hand helical geometry supports both roughing and finishing operations in a single tool. An AlCromax (ALCRO-MAX) PVD coating provides thermal resistance and oxidation protection, making this end mill well suited for cutting superalloys, titanium, stainless steel, and other difficult ferrous materials. Licensed machinists and CNC operators running production or job-shop work are the primary users.

This end mill is built for use in materials including superalloys, titanium alloy, Inconel, stainless steel, alloy steel, and cast iron. The high helix angle promotes chip evacuation in tough, work-hardening materials where heat buildup is a concern. With a 3 inch overall length and a straight-cylindrical 1/2 inch shank, it mounts directly into standard milling toolholders. It is a single-end, centercutting-capable design suited for slotting, profiling, and peripheral milling operations in both vertical and horizontal machining centers.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• AlCromax (ALCRO-MAX) PVD coating for elevated thermal resistance and extended tool life in superalloys and stainless steel
• 0.03 inch corner radius reduces edge chipping and stress risers on finished workpiece corners
• Five-flute, high-helix geometry supports both roughing and finishing in a single pass
• Right-hand cut and right-hand flute direction for compatibility with standard CNC spindle rotation
• Normal pitch with straight-cylindrical shank for direct mounting in standard toolholders

Compatibility

Designed for use with standard milling toolholders accepting a 1/2 inch straight-cylindrical shank. Primary workpiece materials include superalloys, titanium alloy, Inconel, stainless steel, alloy steel, and cast iron.

Installation Notes

Installation and operation should be performed by qualified machinists familiar with CNC or manual milling equipment. Ensure the toolholder is clean and the shank is fully seated before tightening to the toolholder manufacturer's specification. Verify spindle direction is set to right-hand rotation before engaging the cut. Follow applicable shop safety procedures and machine guarding requirements when handling carbide tooling.
