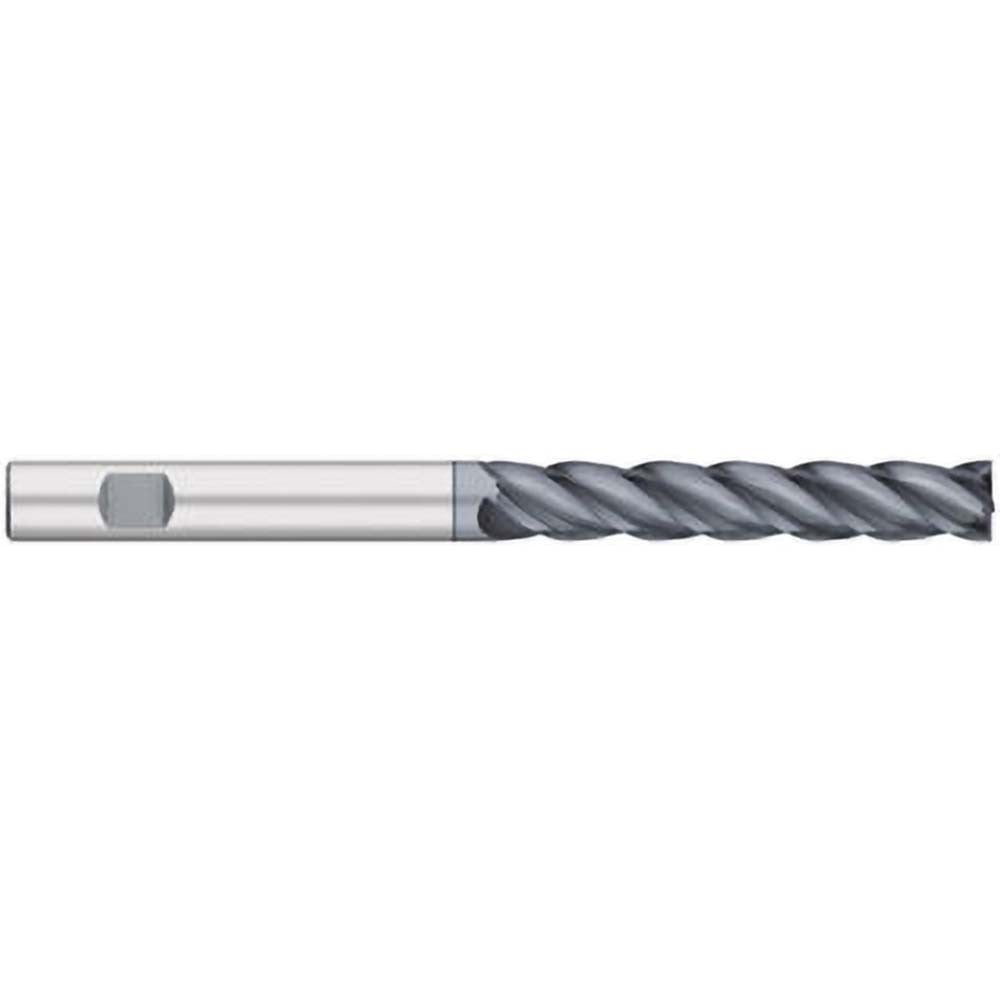

Titan Usa TC24552 Square End Mill 3/4 in 4 Flute Carbide

Product Description

The TITAN USA TC24552 is a solid carbide square end mill designed for precision milling in demanding metalworking and machining applications. With a 3/4 inch cutting diameter and 4 inches length of cut, this single-end tool handles deep-reach slotting, profiling, and peripheral milling operations. The 4-flute, right-hand cutting geometry paired with a 38-degree helix angle promotes efficient chip evacuation and smooth surface finishes. The AlCrO-MAX coating adds heat and wear resistance, extending tool life in high-speed applications on hardened steels, stainless, and other abrasive materials. Micrograin carbide substrate supports the edge integrity needed for tight-tolerance work.

This end mill fits standard CNC machining centers and manual mills equipped with a 3/4 inch collet or end mill holder. The 7 inch overall length and 4 inch length of cut make it well suited for deep-cavity milling, long-reach profiling, and applications where standard-length tools cannot reach. The variable index flute spacing helps reduce harmonic chatter during aggressive cuts, making it a practical choice for shops running ferrous and non-ferrous materials at elevated feeds and speeds.

Key Features

• 3/4 inch cutting diameter with 4 inch length of cut for deep-reach applications
• 4-flute right-hand configuration with 38-degree helix for efficient chip removal
• AlCrO-MAX coating for elevated heat resistance and extended tool life
• Micrograin solid carbide construction for edge sharpness and substrate toughness
• Variable index flute geometry reduces chatter during high-feed cuts
• Center-cutting design allows plunge entry into workpiece material

Compatibility

Designed for use in CNC machining centers and manual knee mills with 3/4 inch collet or end mill holder tooling. Suitable for milling ferrous and non-ferrous metals including hardened steels and stainless alloys.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Secure the shank fully within the collet or holder to the manufacturer-recommended engagement depth before tightening. Power down and lock out the spindle before changing tooling. Verify runout with a dial indicator after mounting to confirm concentricity before beginning a cut.
