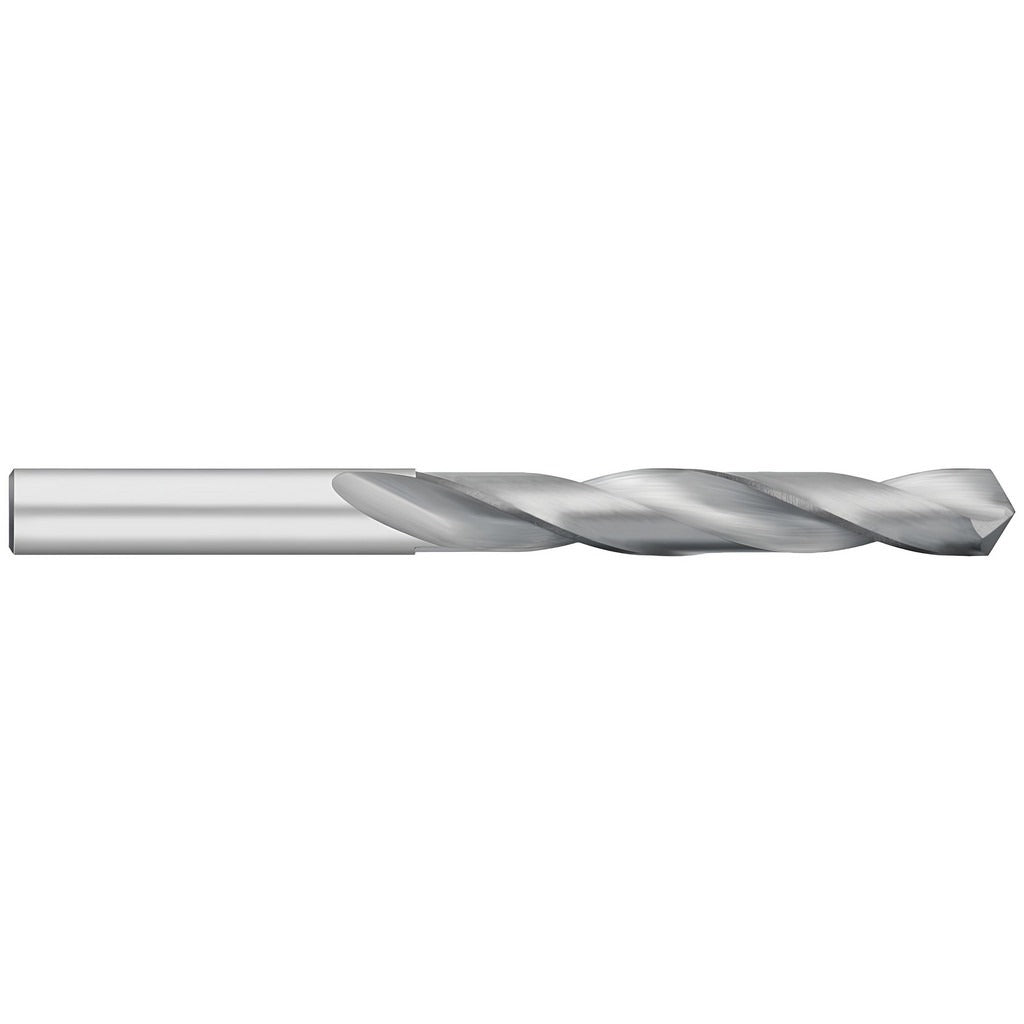

Titan Usa TC19202 Solid Carbide Jobber Drill Bit

Product Description

The TITAN USA TC19202 is a solid carbide jobber-length drill bit designed for precision drilling in aluminum, non-ferrous metals, and similar materials. Ground to a 118-degree split point, it starts on contact without walking and cuts cleanly through softer alloys and plastics. The bright, uncoated carbide body tolerates heat from high-speed runs while maintaining edge integrity. At 0.2210 inches in diameter (Wire Size 2) with a 3.0-inch overall length and 1.75-inch flute length, this bit fits standard jobber-drill applications where a rigid, general-purpose cutting tool is required. Machinists, tool-and-die techs, and maintenance professionals reach for this bit in both manual and CNC drilling setups.

The TC19202 is suited for general-purpose drilling operations in production shops, maintenance facilities, and fabrication environments. Its straight cylindrical shank seats directly in standard drill chucks and collets without modification. Primary target materials include aluminum, brass, copper, and other non-ferrous metals where carbide holds a significant edge-life advantage over high-speed steel. The regular spiral flute geometry promotes chip evacuation during through-hole and blind-hole drilling. This bit is part of the TITAN USA TC19 series, which covers general-purpose solid carbide jobber drills across a range of decimal-inch sizes.

Key Features

• Solid carbide construction provides superior rigidity and edge retention compared to high-speed steel in non-ferrous applications
• 118-degree split point reduces thrust force and eliminates center-punch requirements on most setups
• Bright, uncoated finish maintains dimensional accuracy and suits use with most cutting fluids or dry
• Regular spiral flute geometry with 2 flutes promotes consistent chip clearance
• Straight cylindrical shank fits standard drill chucks and ER collets without adapters
• Maximum drilling depth of 1.75 inches suits through-holes and moderate blind-hole depths

Compatibility

Designed as a general-purpose OEM-style solid carbide jobber drill for use in standard drill chucks, collets, and CNC machining center spindles accepting a 0.2210-inch straight shank.

Installation Notes

Solid carbide drill bits are brittle and must be run at appropriate speeds and feeds for the workpiece material — consult published carbide speeds-and-feeds charts for aluminum and non-ferrous metals before use. Secure the workpiece firmly before drilling; lateral loading or chatter can chip a carbide cutting edge. Do not use carbide drills in hand-held portable drills where runout and side-loading are difficult to control. Inspect the cutting edge before each use and replace the bit at the first sign of chipping or edge breakdown.
