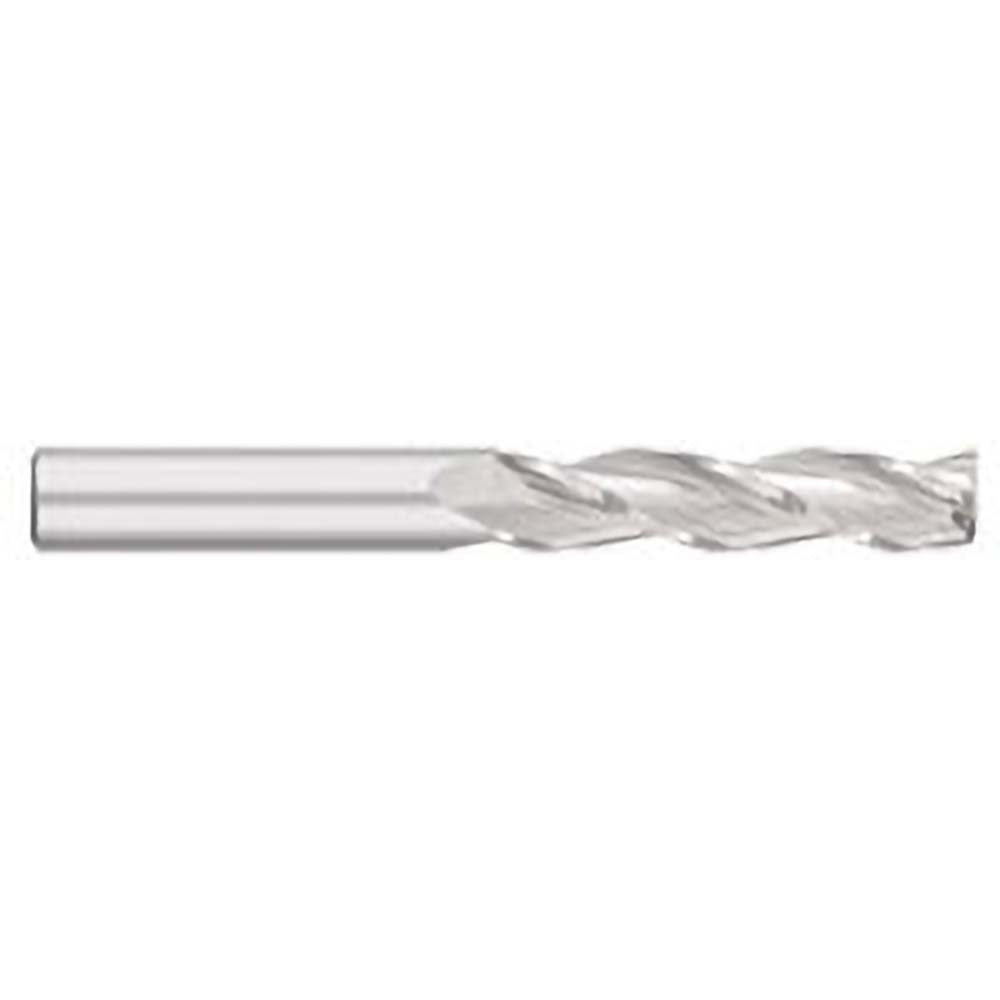

Titan Usa TC17317 Square End Mill 1/4 in 3 Flute Carbide

Product Description

The TITAN USA TC17317 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 0.25-inch mill diameter and a 1.5-inch length of cut, this single-end tool delivers clean, square-shouldered profiles in a compact form factor. The 3-flute, 30-degree right-hand helix geometry balances chip evacuation with surface finish quality. Micrograin carbide construction provides the hardness and edge retention required for demanding cuts in ferrous and non-ferrous materials. The bright, uncoated finish makes this tool well-suited for use with cutting fluids and general-purpose milling where coating is not required.

This end mill is intended for use in CNC machining centers, manual milling machines, and similar rotary cutting setups where a right-hand cutting, right-hand flute tool is called for. It is a single-end, non-extended-reach tool, making it appropriate for standard-depth slotting, profiling, and peripheral milling operations. The 1/4-inch shank diameter accommodates common collet and end mill holder sizes found in light-duty to mid-range machining setups. Machinists and CNC operators in job shops, maintenance environments, and production facilities are the primary users of this tool.

Key Features

• Solid micrograin carbide construction for superior hardness and edge retention
• 3-flute geometry with 30-degree right-hand helix for balanced chip removal and finish quality
• 1.5-inch length of cut supports standard-depth slotting and profiling passes
• Centercutting design allows plunge entry as well as peripheral and slot milling
• Bright, uncoated finish compatible with cutting fluid applications and general-purpose use
• 6-inch overall length with 1/4-inch shank for compatibility with standard collet systems

Compatibility

Designed as an OEM-style replacement or standard-stock solid carbide square end mill for use in 1/4-inch collets and end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by machinists or CNC operators. Ensure the spindle is fully stopped and the machine is powered down or in a safe-stop state before changing tooling. Clean the collet bore and shank before seating to ensure runout is minimized. Follow machine tool manufacturer torque specifications for collet nut tightening, and verify tool projection and length offset in the control before beginning a cut.
