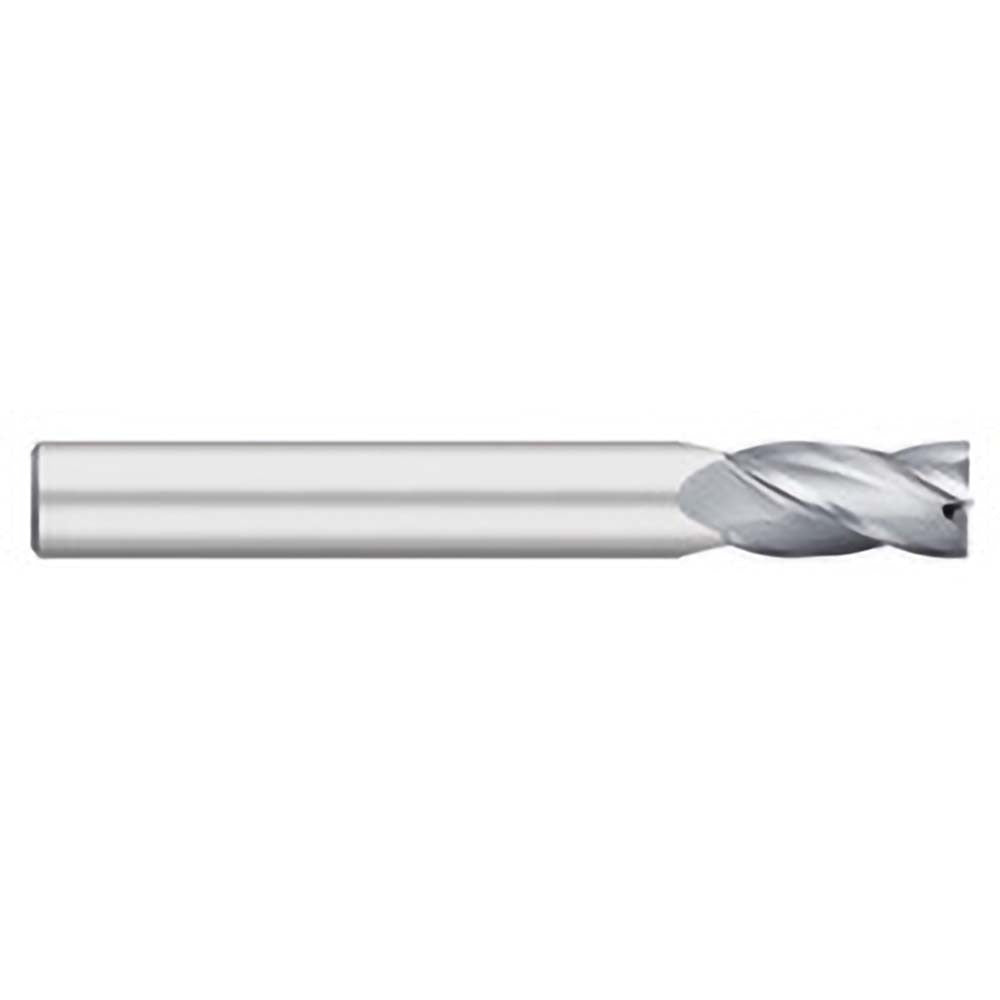

Titan Usa TC15564 Square End Mill 1 in 4 Flute Carbide

Product Description

The TITAN USA TC15564 is a solid carbide square end mill designed for precision milling operations in metal, composites, and other hard materials. With a 1-inch cutting diameter and 4-flute geometry, this single-end tool delivers clean, flat-bottomed cuts in roughing and finishing applications. The 30-degree helix angle promotes efficient chip evacuation and reduces cutting forces. A bright, uncoated finish means this end mill is ready to run as-is or can be used where coatings are not required. It is installed and operated by machinists and CNC programmers in job shops, manufacturing facilities, and toolrooms.

This end mill is suited for vertical machining centers, CNC knee mills, and manual milling machines where a 1-inch shank diameter is called for. With a 2.25-inch length of cut and a 5-inch overall length, it handles moderate-depth passes in steel, aluminum, cast iron, and similar workpiece materials. The right-hand cut and right-hand flute direction are standard for conventional and climb milling on most machine spindles. The micrograin carbide substrate provides wear resistance and edge retention during extended production runs.

Key Features

• Solid micrograin carbide construction for wear resistance and edge retention
• 4-flute, upcut design with 30-degree helix for efficient chip evacuation
• 1-inch cutting diameter with a matching 1-inch shank diameter for rigid setup
• 2.25-inch length of cut supports moderate-depth milling passes
• Centercutting design allows plunge entry into workpiece material
• Bright, uncoated finish suitable for a wide range of workpiece materials

Compatibility

Designed as a direct-fit replacement or new-install square end mill for CNC and manual milling machines accepting a 1-inch straight shank with ER or side-lock toolholding.

Installation Notes

A licensed machinist or qualified CNC operator should install and set this end mill using appropriate toolholding — such as an ER collet chuck or end mill holder rated for the 1-inch shank diameter. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool. Check runout at the toolholder before beginning a cut, and confirm cutting parameters against the workpiece material and machine horsepower rating. Do not exceed the recommended depth of cut for the flute length or overhang.
