Titan Usa TC10509 Square End Mill 0.1406 in 4 Flute Carbide

Product Description

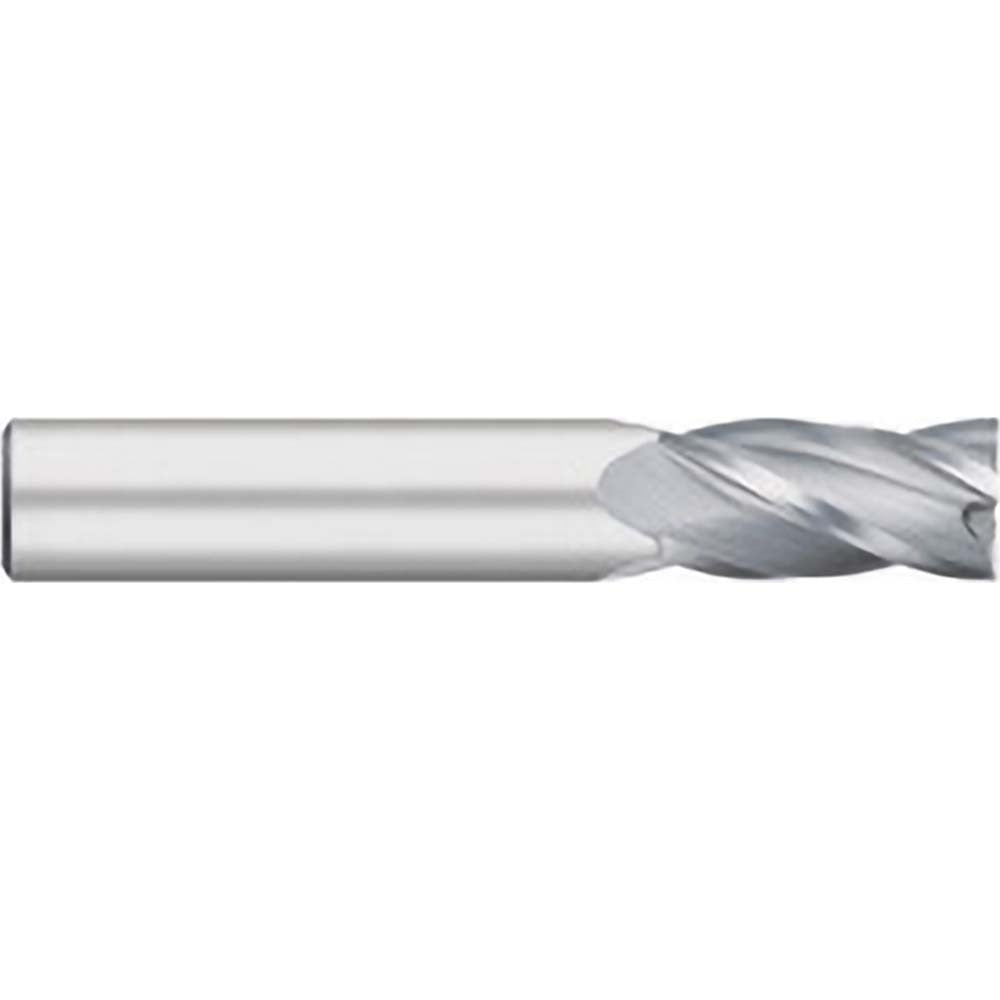

The TITAN USA TC10509 is a 4-flute solid carbide square end mill designed for precise milling operations in ferrous and non-ferrous metals, composites, and plastics. It features a 0.1406-inch cutting diameter, a 0.5625-inch length of cut, and a 0.1875-inch shank diameter with a 2-inch overall length. The micrograin carbide construction delivers hardness and edge retention suited to tight-tolerance finish and semi-finish work. The bright, uncoated finish makes it a straightforward general-purpose choice where coating is not required. This tool is installed and operated by machinists and CNC programmers in job shops, production environments, and toolrooms.

This end mill is suited for slotting, profiling, and peripheral milling operations on CNC machining centers and manual knee mills. The 30-degree helix angle promotes smooth chip evacuation during upcut operations, reducing heat buildup at the cutting edge. The right-hand cut and right-hand flute direction are standard for conventional CNC spindle setups. Its small diameter makes it appropriate for fine-detail work, narrow-slot cutting, and finish passes in confined geometries on small to medium workpieces.

Key Features

• Micrograin solid carbide construction for edge hardness and extended tool life
• 4 flutes with 30-degree right-hand helix for efficient chip evacuation
• Upcut, right-hand cut geometry compatible with standard CNC spindle rotation
• Center-cutting capable, allowing plunge entry into workpiece material
• Bright, uncoated finish for general-purpose use across a range of materials
• Square end profile for flat-bottom slots and sharp 90-degree shoulder features

Compatibility

Designed as a general-purpose solid carbide square end mill for use in CNC machining centers and manual mills accepting a 0.1875-inch shank diameter collet or tool holder.

Installation Notes

Installation should be performed by a qualified machinist following standard toolroom practice. Secure the 0.1875-inch shank in a properly sized collet or end mill holder and confirm runout with a dial indicator before cutting. Verify spindle speed and feed rate against manufacturer cutting data for the workpiece material before engaging the cut. Never exceed the rated length of cut or apply side loads beyond the tool's designed parameters, as solid carbide is rigid but brittle under shock loading.
