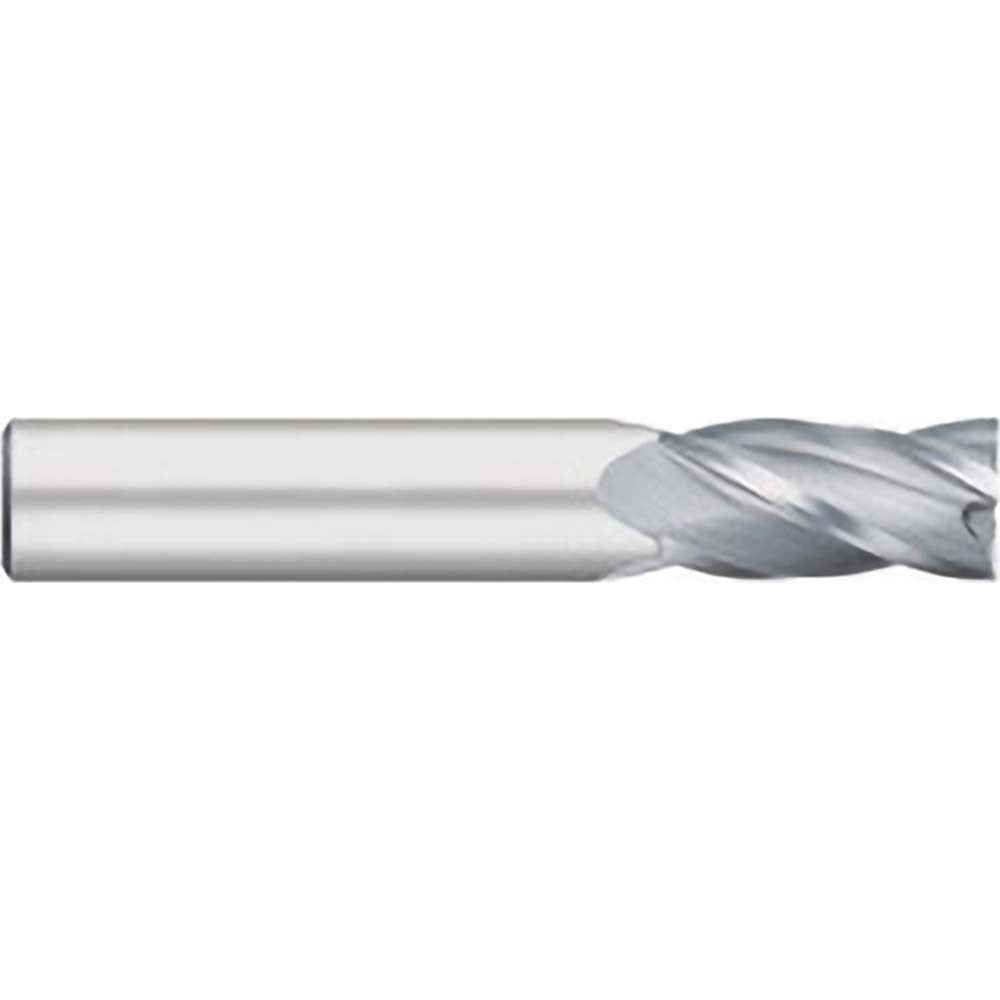

Titan Usa TC10505 Square End Mill 5/64 in 4 Flute Carbide

Product Description

The TITAN USA TC10505 is a solid carbide square end mill designed for precision milling operations in metal, plastics, and composites. With a 5/64 inch (0.0781 inch) cutting diameter and 4 flutes, this single-end tool delivers clean, accurate cuts in tight-tolerance applications. The 30-degree right-hand helix promotes efficient chip evacuation and smooth cutting action. A bright/uncoated finish makes it well-suited for non-ferrous materials and general-purpose milling where coating is not required. Machinists and tool-and-die professionals use this end mill in CNC machining centers and manual milling machines alike.

This end mill is appropriate for light-duty precision work requiring a small-diameter cutting tool. The 1/4 inch length of cut and 1-1/2 inch overall length make it a practical choice for shallow-pocket milling, slotting, and profiling operations. The 1/8 inch shank diameter fits standard collets and tool holders sized for small-diameter tooling. Micrograin carbide construction provides edge stability and wear resistance during repeated cuts in demanding materials.

Key Features

• Solid micrograin carbide construction for edge stability and extended tool life
• 4-flute geometry for improved surface finish and material removal rate
• 30-degree right-hand helix promotes efficient chip evacuation
• Centercutting design allows plunge entry into workpiece
• Bright/uncoated finish suited for aluminum, brass, and other non-ferrous materials
• Single-end configuration with right-hand cutting direction

Compatibility

Designed as an OEM-style replacement or standard tooling option for CNC machining centers and manual mills accepting a 1/8 inch shank collet or tool holder.

Installation Notes

Installation should be performed by a qualified machinist following established shop safety procedures. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully in the collet or tool holder and torque to the tool holder specification. Verify runout with a dial indicator before beginning a cut to prevent premature tool wear or breakage at this small diameter.
