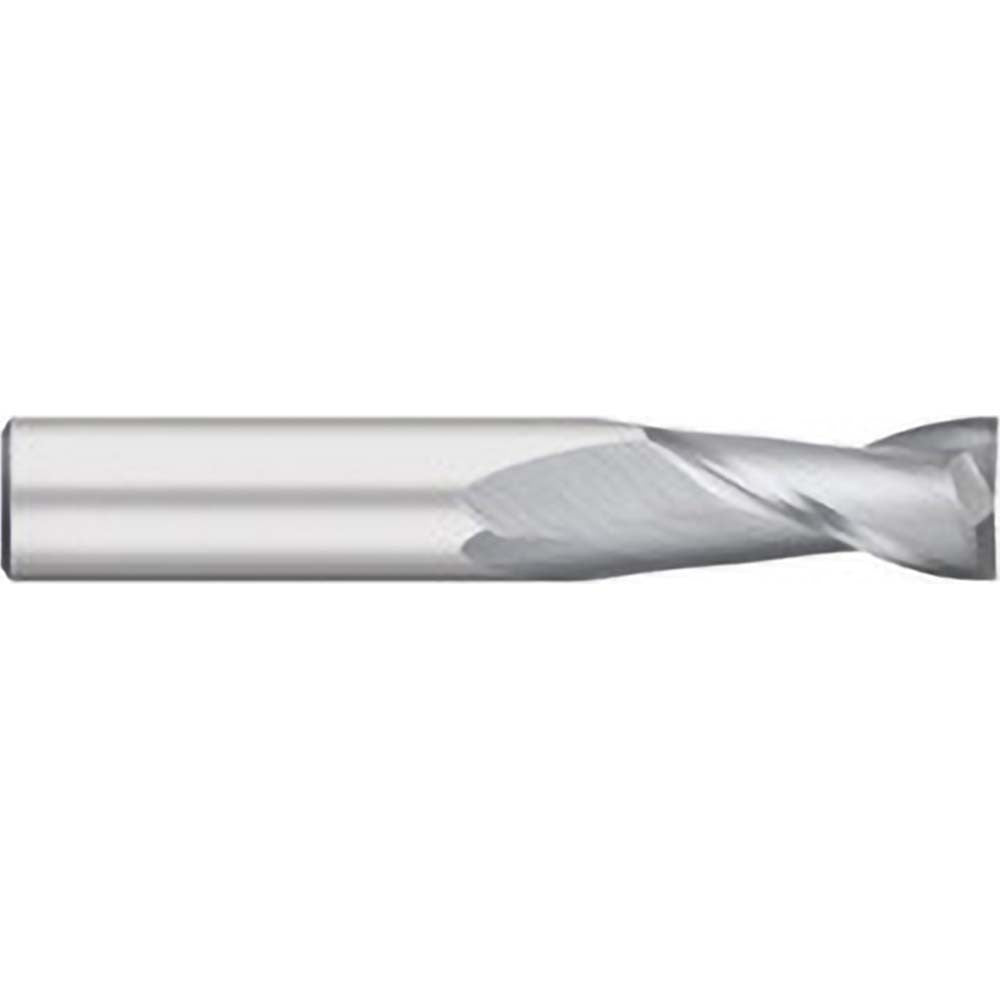

Titan Usa TC10048 Square End Mill 0.75in 2 Flute Solid Carbide

Product Description

The TITAN USA TC10048 is a solid carbide square end mill designed for precision material removal in milling operations. It features a 0.75-inch cutting diameter, a 1.5-inch length of cut, and a 4-inch overall length, making it well-suited for a range of slotting, profiling, and peripheral milling tasks. The two-flute configuration provides efficient chip evacuation, and the 30-degree helix angle promotes smooth cutting action. Manufactured from micrograin solid carbide, this end mill delivers rigidity and wear resistance in demanding machining environments. The bright, uncoated finish leaves the carbide substrate exposed for use across a broad range of workpiece materials.

This end mill is intended for use in vertical machining centers, CNC mills, and manual knee mills where a standard 0.75-inch shank is required. The 0.75-inch shank diameter matches the cutting diameter, simplifying collet and tool holder selection. Its right-hand cut, right-hand flute, upcut geometry positions it for conventional milling setups in production and job-shop environments. Machinists and tool-and-die professionals working with ferrous and non-ferrous metals, plastics, and composites will find this a practical general-purpose option.

Key Features

• 0.75-inch cutting diameter with 1.5-inch length of cut for slotting and profiling
• Micrograin solid carbide construction for rigidity and extended tool life
• 30-degree helix angle promotes smooth chip flow and reduced cutting forces
• Right-hand cut with upcut flute direction for conventional milling operations
• Center-cutting capable, allowing plunge entry into workpiece material
• Bright, uncoated finish suitable for a wide range of materials

Compatibility

Designed as a standard 0.75-inch shank square end mill compatible with ER, DA, and straight-bore collet systems and tool holders accepting a 0.75-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the machine spindle is fully powered down and locked out before changing tooling. Secure the end mill in a properly sized collet or tool holder to the manufacturer-specified drawbar or retention torque for your machine. Verify runout with a dial indicator before commencing cutting operations to protect both the tool and the workpiece.
