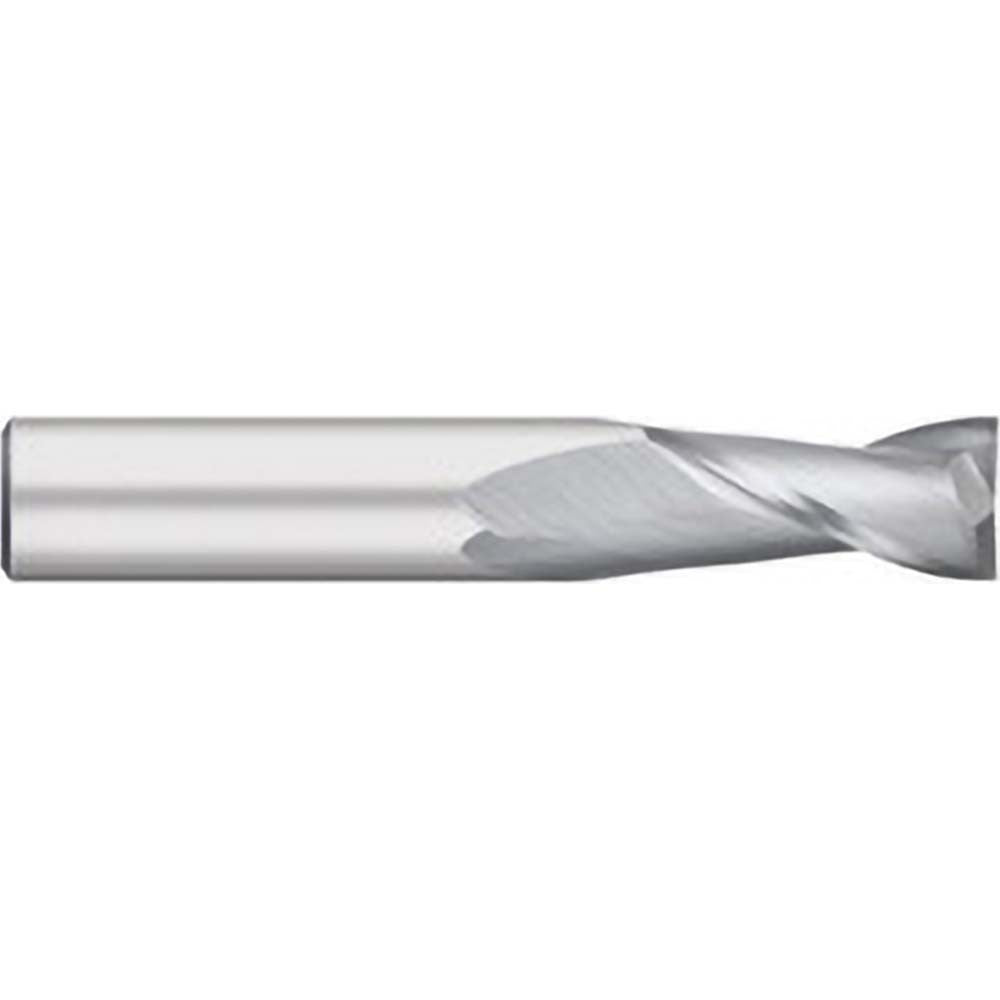

Titan Usa TC10013 Square End Mill 0.2031 in 2 Flute Carbide

Product Description

The TITAN USA TC10013 is a 2-flute solid carbide square end mill designed for precise material removal in milling applications. Built from micrograin carbide with a bright uncoated finish, this end mill measures 0.2031 inches in diameter with a 0.25 inch shank diameter and a 2.5 inch overall length. The 0.625 inch length of cut and 30-degree helix angle support efficient chip evacuation and surface finish quality. Center-cutting capability allows direct plunging into workpieces. This tool is installed and operated by machinists and CNC programmers working in shop environments.

The TC10013 is suited for general-purpose milling in ferrous and non-ferrous materials where a small-diameter, short-reach tool is appropriate. The upcut flute geometry and right-hand cut direction are standard for conventional CNC vertical machining center setups. The 13/64 inch diameter and 1/4 inch shank make this tool a practical choice for detail work, slotting, and peripheral milling in tight geometries. Typical applications include profiling, contouring, and full-slot milling passes at light-to-moderate depths of cut.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• 0.2031 inch (13/64 inch) cutting diameter with 0.625 inch length of cut
• 30-degree helix angle with upcut flute geometry for efficient chip removal
• Center-cutting design permits direct plunge entry
• Right-hand cut and right-hand flute direction for standard spindle rotation
• Bright uncoated finish suitable for a wide range of work materials

Compatibility

Designed as an OEM-style replacement or working end mill for CNC machining centers and manual mills accepting a 0.25 inch straight shank collet or end mill holder.

Installation Notes

Installation is performed by a machinist or CNC operator using an appropriate collet, shrink-fit holder, or end mill holder rated for the 0.25 inch shank diameter. Ensure the spindle is fully stopped and the machine is in an e-stop or powered-down state before changing tooling. Verify runout at the tool tip after installation before beginning any cut. Follow the machine manufacturer and tooling supplier feeds-and-speeds guidelines for the specific work material being machined.
