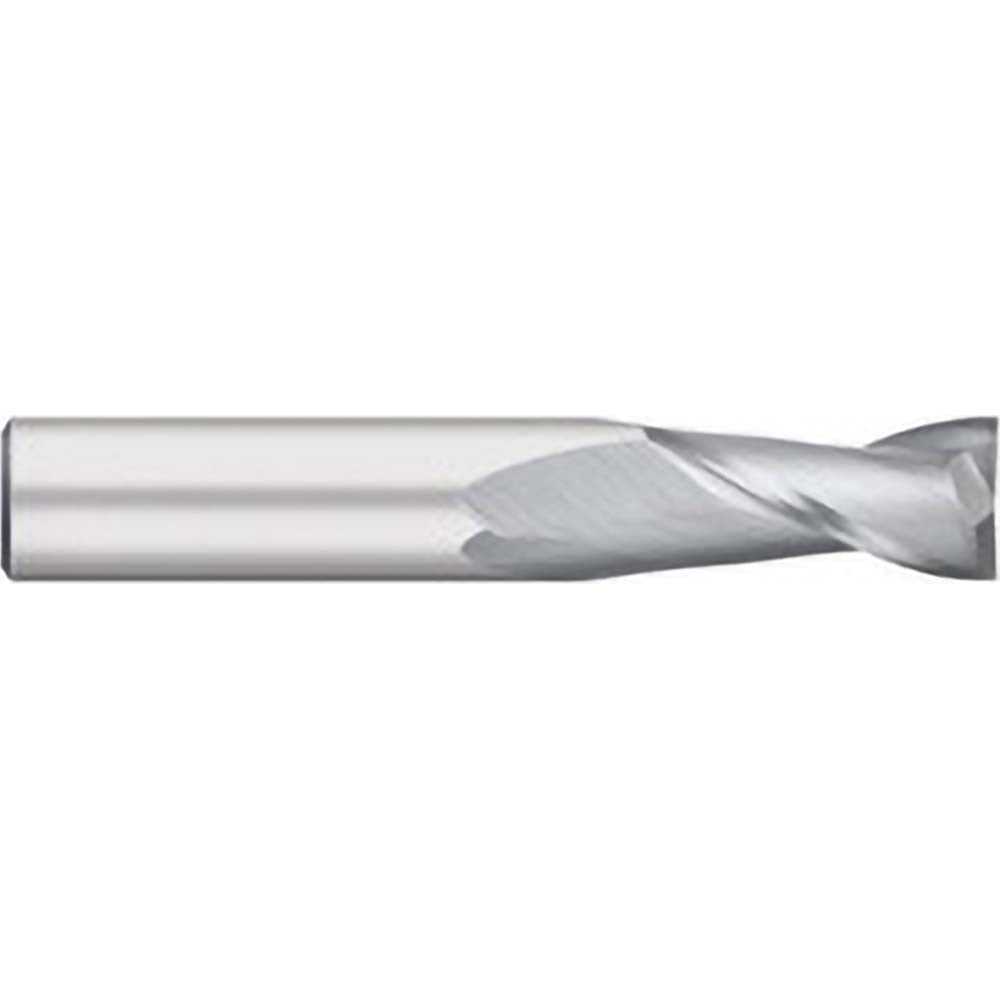

Titan Usa TC10004 Square End Mill 1/16 in 2 Flute Carbide

Product Description

The TITAN USA TC10004 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 1/16 inch (0.0625 inch) cutting diameter and a 1/4 inch length of cut, this end mill is built for tight-tolerance work in small-feature machining. The micrograin carbide construction provides the hardness and wear resistance needed for ferrous and non-ferrous materials. A 30-degree helix angle promotes efficient chip evacuation and reduces cutting forces. This tool is single-end, right-hand cutting, and right-hand flute direction, making it compatible with standard CNC and manual milling setups.

The TC10004 is suited for light-duty slotting, profiling, and contouring in precision machining environments, including tool rooms, production shops, and CNC machining centers. Its 1/8 inch shank diameter fits standard collets used in small-bore toolholders. The bright uncoated finish makes it a straightforward choice for general-purpose milling where coating is not required by the application. It is typically installed and used by machinists and CNC operators working with small-diameter features in both prototype and production runs.

Key Features

• 1/16 inch cutting diameter with 1/4 inch length of cut for small-feature precision work
• 2-flute geometry promotes chip clearance in slotting and profiling cuts
• Micrograin solid carbide construction for hardness and edge retention
• 30-degree helix angle reduces cutting forces and improves chip flow
• Centercutting design allows plunge entry into the workpiece
• Bright uncoated finish suitable for general-purpose milling applications

Compatibility

Designed as an OEM-style replacement or standard tooling option for CNC mills and manual milling machines accepting a 1/8 inch shank diameter collet or toolholder.

Installation Notes

Installation and tool changes should be performed with the machine powered down and in a locked-out state per standard OSHA lockout/tagout procedures. Ensure the collet and toolholder are clean and free of debris before seating the shank. Do not exceed the recommended depth of cut for a 1/16 inch diameter end mill, as small-diameter carbide tools are susceptible to breakage under excessive lateral load. Consult machine manufacturer guidelines and applicable shop safety codes before operation.
