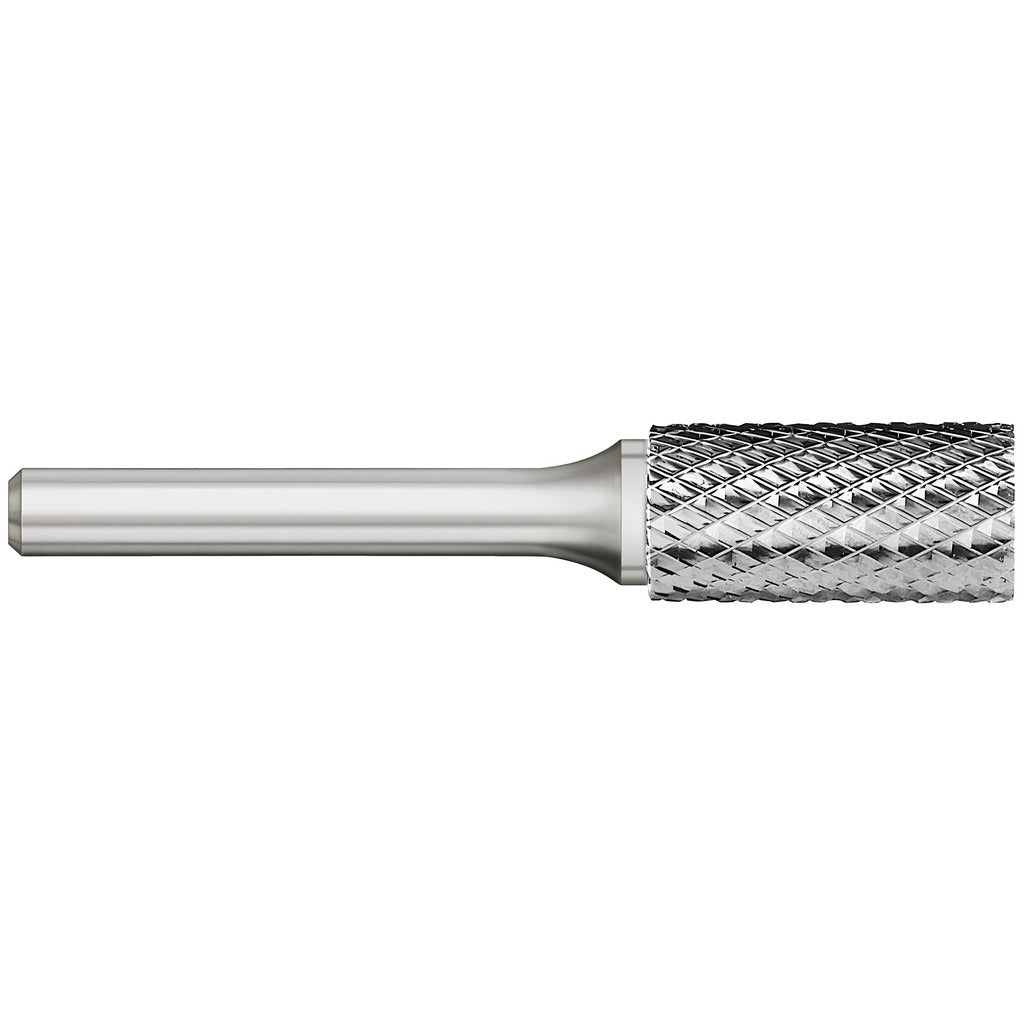

Titan Usa TB19326 Carbide Bur SA-3 Cylinder 3/8 in

Product Description

The TITAN USA TB19326 is a double-cut carbide abrasive bur in the SA-3 cylinder profile, designed for aggressive material removal on ferrous and non-ferrous metals. The uncoated carbide head delivers consistent cutting performance across a 3/8-inch cutting diameter with a 3/4-inch length of cut. At 2.5 inches overall length and a 1/4-inch shank, this bur fits standard die grinders and rotary tool setups used by machinists, fabricators, and maintenance technicians. The double-cut tooth pattern produces a finer finish and faster chip clearing compared to single-cut configurations.

This bur is suited for deburring, shaping, and material removal in metal fabrication, weld cleanup, and general machining applications. The cylinder head geometry makes it effective for working inside slots, flat-bottom cavities, and along straight edges. It handles both ferrous metals such as steel and cast iron and non-ferrous metals such as aluminum and copper. The 1/4-inch shank is the standard size accepted by most pneumatic and electric die grinders used in shop and field environments.

Key Features

• SA-3 cylinder profile for straight-wall and flat-bottom material removal
• Double-cut tooth style for faster stock removal and reduced chatter
• Uncoated carbide head rated up to 63,000 RPM
• 3/8-inch cutting diameter with 3/4-inch length of cut
• 1/4-inch shank fits standard die grinders and rotary tools
• Compatible with ferrous and non-ferrous metal applications

Compatibility

Designed for use with standard 1/4-inch collet die grinders and rotary tools. Suitable for ferrous and non-ferrous metal stock including steel, cast iron, aluminum, and copper alloys.

Installation Notes

Install the TB19326 into a die grinder or rotary tool equipped with a 1/4-inch collet. Ensure the collet is fully tightened before operation and confirm the tool is rated to handle speeds up to 63,000 RPM. Disconnect the air supply or unplug the tool before changing burs. Use appropriate eye protection and gloves when working with carbide rotary burs on metal.
