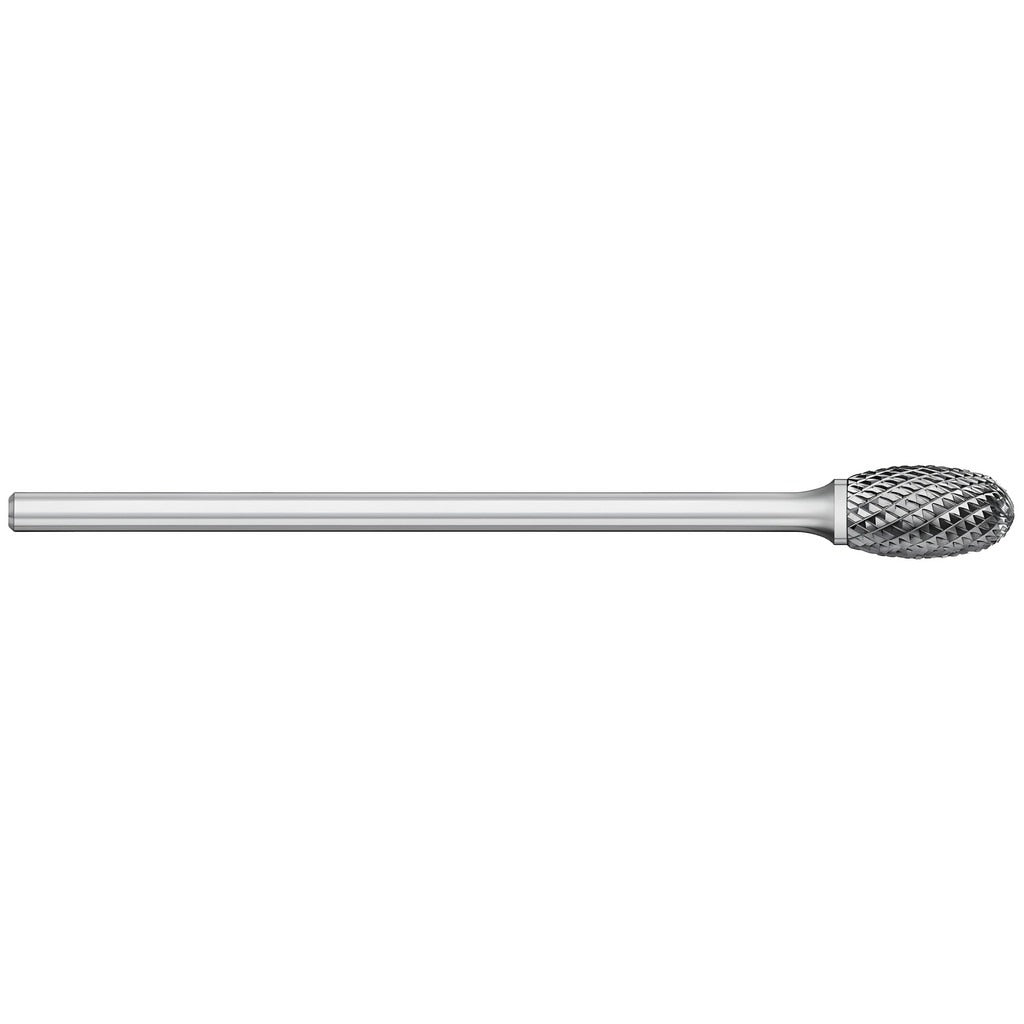

Titan Usa TB19155 Carbide Egg Bur Double Cut 1/8 Shank

Product Description

The TITAN USA TB19155 is a double-cut carbide abrasive bur with an egg-shaped head, designed for material removal and finishing work on ferrous and non-ferrous metals. The bur features a 1/8-inch shank diameter and an overall length of 3 inches, making it compatible with standard die grinders and rotary tools. The uncoated carbide head delivers consistent cutting performance across a wide range of metal types. Rated for up to 80,000 RPM, it handles high-speed stock removal without sacrificing control. Industry specification SE-41L3 identifies the head geometry for cross-referencing with equivalent tooling.

This bur is suited for deburring, contouring, and shaping operations in metalworking, fabrication, and maintenance applications. The egg head profile allows access to curved surfaces, concave recesses, and irregular geometries where flat or cylindrical burs cannot reach efficiently. Typical users include machinists, fabricators, and maintenance technicians working with steel, aluminum, cast iron, and other common metals. The 1/8-inch shank fits the collet sizes found on most standard pneumatic and electric die grinders.

Key Features

• Double-cut tooth pattern for faster material removal and finer finish compared to single-cut burs
• Egg-shaped carbide head suited for contouring concave and curved surfaces
• Rated to 80,000 RPM for use with high-speed die grinders and rotary tools
• 1/8-inch shank diameter fits standard die grinder collets
• Uncoated carbide head works on both ferrous and non-ferrous metals
• Industry specification SE-41L3 for direct cross-reference to equivalent bur geometries

Compatibility

Designed as an OEM-style replacement and standard-specification carbide bur for use in die grinders and rotary tools accepting a 1/8-inch shank collet. Compatible with applications on ferrous and non-ferrous metals per the SE-41L3 industry specification.

Installation Notes

Carbide burs are installed and replaced by machinists and fabricators using standard collet wrenches. Always power down and disconnect the die grinder or rotary tool before changing burs. Confirm the collet size matches the 1/8-inch shank before tightening. Do not exceed the 80,000 RPM rating; verify the tool speed rating before use.
