Titan Usa SD94738 Reduced Shank Drill Bit 19/32 in Hss

Product Description

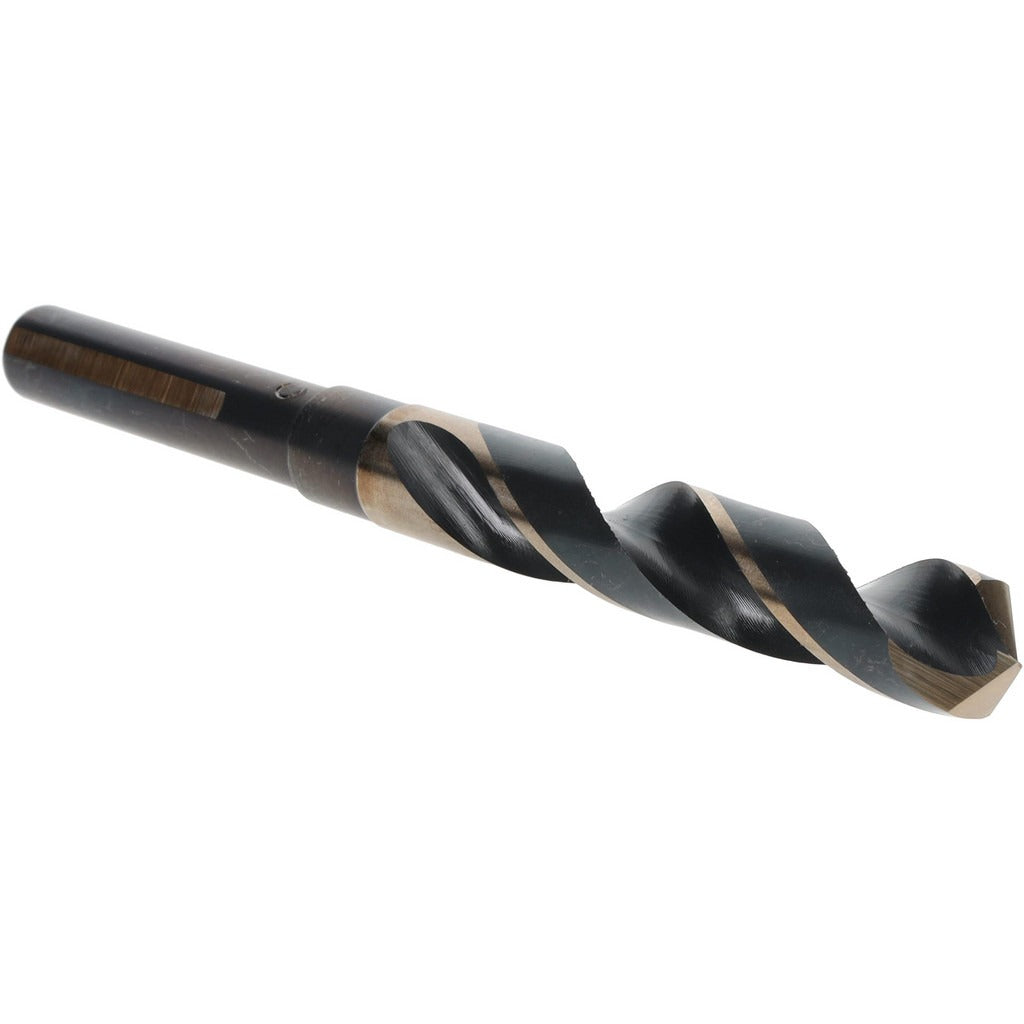

The TITAN USA SD94738 is a reduced shank twist drill bit machined from high-speed steel and finished with a black oxide and straw coating. It carries a 19/32-inch cutting diameter (0.5938 inches decimal) and steps down to a 1/2-inch reduced shank with a flat, allowing it to seat in standard 1/2-inch drill chucks when the full cutting diameter would otherwise require a larger chuck. The 118-degree split point angle is a general-purpose geometry suited to steel, cast iron, aluminum, and most common shop materials. Two flutes channel chips out of the hole efficiently during drilling operations.

This bit is used in metalworking, fabrication, mechanical maintenance, and general industrial applications where a 19/32-inch hole is required but the available drill press or hand drill is limited to a 1/2-inch chuck capacity. The reduced shank design makes it a practical choice for maintenance technicians, millwrights, and fabricators working with standard equipment. It fits into Series 623 tooling and is sold individually.

Key Features

• 19/32-inch cutting diameter with 1/2-inch reduced shank for use in standard 1/2-inch chucks
• High-speed steel construction provides hardness and heat resistance for metal drilling
• Black oxide and straw finish reduces friction and provides light corrosion resistance
• 118-degree drill point angle for general-purpose use across a wide range of materials
• Reduced shank with flat on 3 sides prevents slippage in chuck
• Two-flute design promotes efficient chip evacuation during drilling

Compatibility

Designed as a general-purpose replacement reduced shank drill bit for use in any drill press or hand drill equipped with a 1/2-inch chuck capacity. Part of TITAN USA Series 623.

Installation Notes

Install and remove drill bits only with the drill fully powered off and unplugged or locked out per OSHA lockout/tagout procedures. Secure the reduced shank firmly in the chuck, tightening all three chuck key positions to engage the flat. Inspect the cutting edges for chipping or wear before use. Apply appropriate cutting fluid when drilling ferrous metals to extend bit life and improve hole finish.
