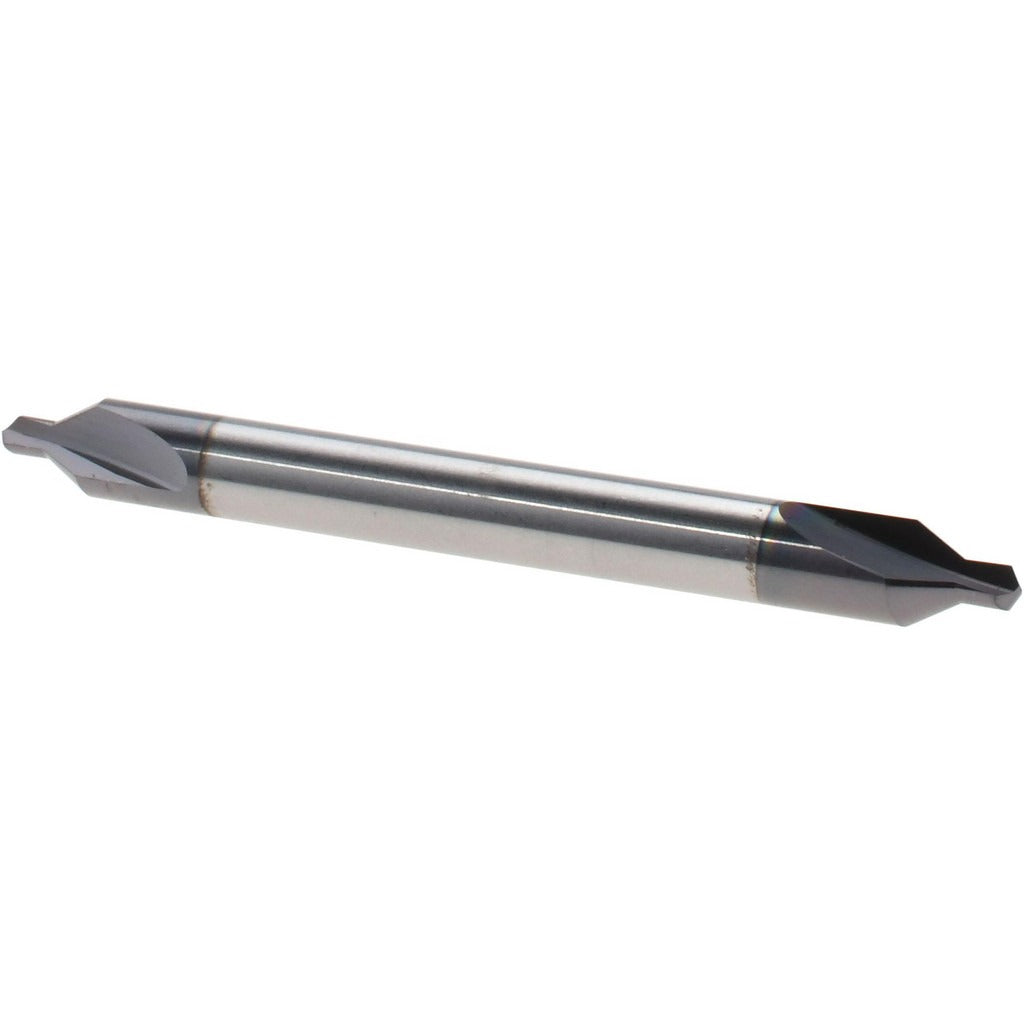

Titan Usa CS36002 Combo Drill Countersink Solid Carbide

Product Description

The TITAN USA CS36002 is a combination drill and countersink designed for precision hole preparation in metalworking and machining applications. This solid carbide tool features an AlTiN (aluminum titanium nitride) coating that extends tool life by reducing heat buildup and wear at the cutting edge. It carries a No. 2 trade size with a 3/16 inch body diameter, a 5/64 inch drill point diameter, and a 118-degree drill point angle. The 60-degree included angle makes it well suited for standard countersinking operations. Machinists, tool-and-die workers, and CNC operators use this style of tool when a single pass must both drill a pilot hole and form a countersink seat in one operation.

The CS36002 fits production and job-shop environments where tight tolerances on countersink depth and concentricity are required. It is appropriate for use on ferrous metals, stainless steel, aluminum, and hard alloys where the AlTiN finish provides thermal resistance. The 2 inch overall length suits standard drill chucks and collet holders used in benchtop drill presses, mill-drill machines, and CNC machining centers. Right-hand cutting direction is compatible with conventional spindle rotation. The double-end type design and plain cutting edge style make setup straightforward.

Key Features

• Solid carbide construction provides rigidity and wear resistance in hard materials
• AlTiN coating reduces friction and extends tool life at elevated cutting temperatures
• 118-degree drill point angle suits general-purpose drilling in metal
• 60-degree included countersink angle matches standard fastener head geometry
• Right-hand cut, plain cutting edge for use with conventional spindle rotation
• Double-end type design with 2 inch overall length for compatibility with common toolholders

Compatibility

Designed as an OEM-style replacement or direct-use combo drill countersink for standard drill chucks and collet holders accepting a 3/16 inch body diameter shank.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Secure the tool firmly in a properly sized collet or drill chuck before operation and verify runout before cutting. Power down and lock out the spindle before changing or inspecting the tool. Follow cutting speed and feed recommendations for solid carbide tooling and the specific workpiece material to avoid chipping the cutting edge.
