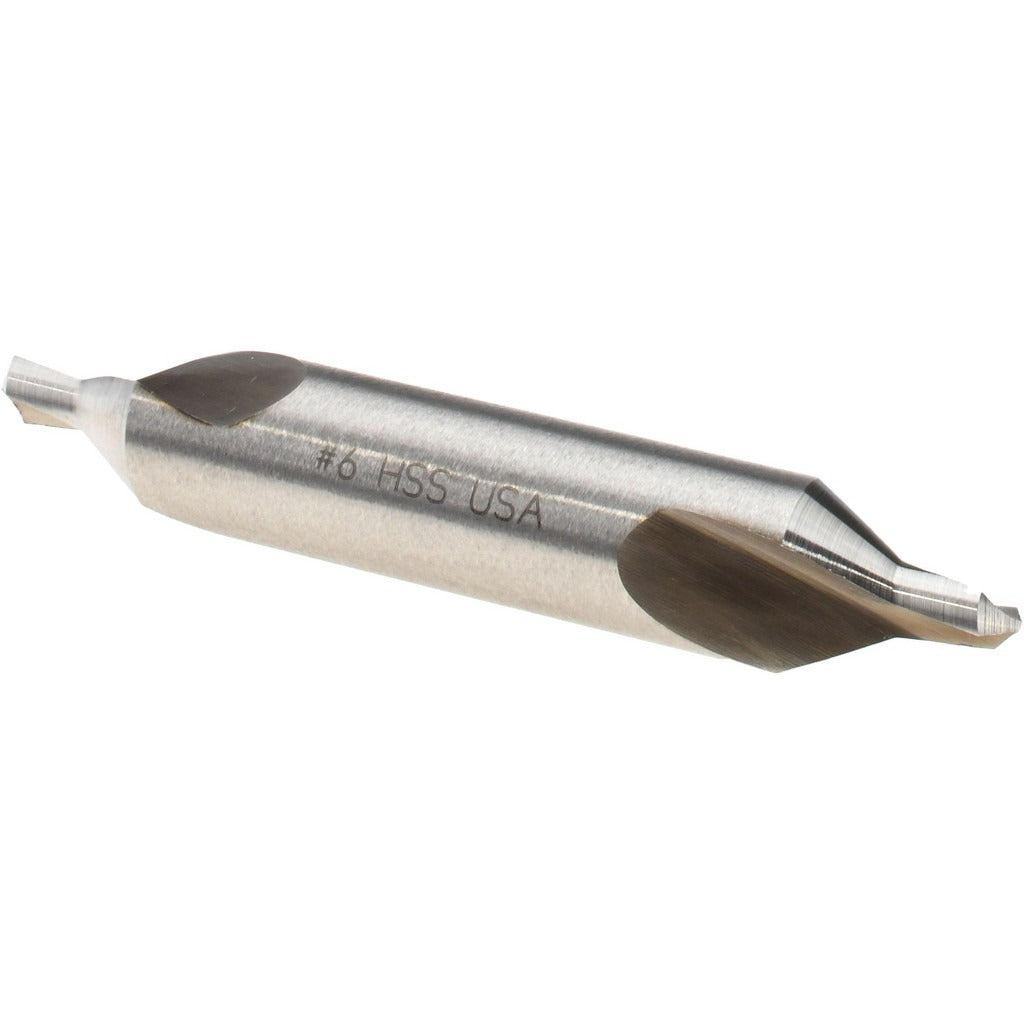

Titan Usa CS10006 Combo Drill Countersink Size 6 Hss

Product Description

The TITAN USA CS10006 is a combination drill and countersink bit designed to perform two operations in a single pass: drilling a pilot hole and cutting a countersink in one step. Built from high-speed steel with a bright, uncoated finish, this tool suits trade professionals who need consistent, repeatable results when setting screws flush or below a work surface. The size 6 designation corresponds to a 0.2188-inch drill point diameter, a 1/2-inch body diameter, and a 3-inch overall length. The 118-degree drill point angle and 60-degree included countersink angle make this bit compatible with standard flat-head fastener seating requirements.

This combo drill countersink is suited for use in metalworking, fabrication, and general mechanical assembly applications. Its right-hand cutting direction and plain cutting edge style are standard for most drill press and hand-drill operations. The double-end configuration extends tool life by providing two usable cutting ends. Machinists, pipefitters, and maintenance technicians working with ferrous and non-ferrous metals will find this tool appropriate for production and field repair work alike.

Key Features

• Combines pilot drilling and countersinking into a single operation for faster workflow
• High-speed steel construction provides durability across a range of metal workpieces
• Double-end design extends usable tool life
• 118-degree drill point angle suits standard metal drilling applications
• 60-degree included angle seats flat-head fasteners correctly
• Bright, uncoated finish for general-purpose use without coating-specific limitations

Compatibility

Designed as a standard size 6 combo drill countersink for use with conventional flat-head screw applications in metal fabrication and mechanical assembly operations.

Installation Notes

This tool is typically used by machinists, maintenance technicians, and trade professionals operating drill presses or portable power drills. Secure the workpiece firmly before operation and use appropriate cutting fluid when working with ferrous metals to extend tool life. Inspect the cutting edges before each use and replace the bit or flip to the second end when wear is detected. Follow applicable shop safety standards and use appropriate eye protection during all drilling operations.
