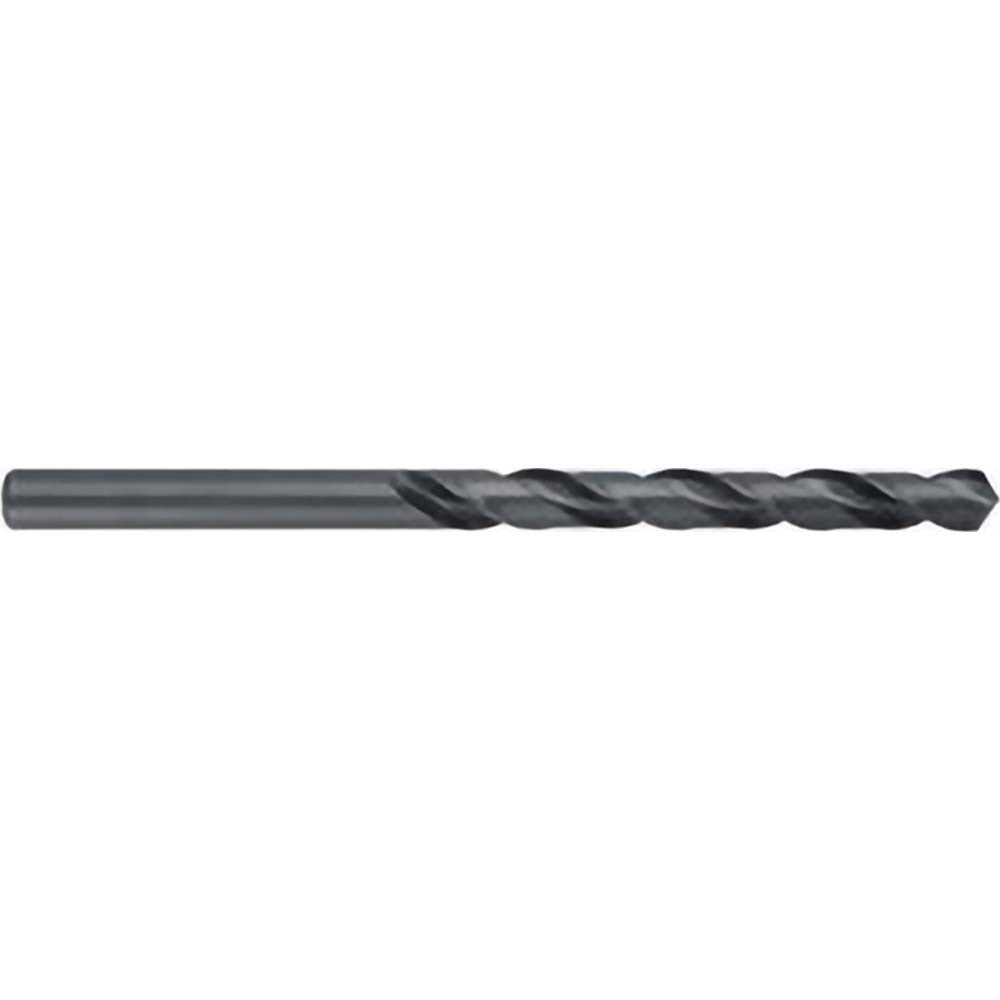

Titan Usa CD52508 Taper Length Drill Bit 1/8 in Hss

Product Description

The TITAN USA CD52508 is a taper length drill bit designed for precision drilling in metal, wood, and general fabrication work. Built from high-speed steel with a black oxide coating, it resists heat buildup and corrosion during extended use. The 118-degree split point reduces walking on entry and requires no center punch on most materials. At 5.125 inches overall length with a 2.75-inch spiral flute, this bit offers greater reach than a jobber-length drill while maintaining the rigidity needed for accurate hole placement. It is sold as a single unit and suits both shop and field applications.

This bit fits standard drill chucks accepting a straight cylindrical shank at 0.125 inches diameter. The taper length profile makes it well suited for applications where a jobber bit is too short but a long-series bit would introduce too much flex. Typical use cases include drilling through structural steel, pipe flanges, sheet metal stacks, and heavy-gauge fabricated assemblies. Electricians, pipefitters, ironworkers, and general contractors regularly reach for taper length geometry when working in tight bays or through deeper material sections.

Key Features

• High-speed steel construction handles elevated cutting temperatures without premature edge failure
• Black oxide coating reduces friction and provides light corrosion resistance during storage and use
• 118-degree point angle suits general-purpose drilling across metals and wood
• Right-hand spiral flute evacuates chips efficiently and is compatible with standard drill drivers and drill presses
• Straight cylindrical shank fits all standard 3-jaw chucks without adapters
• Taper length body provides extended reach beyond jobber-length bits while limiting deflection

Compatibility

Designed as a standard taper length drill bit for use in any drill press, hand drill, or drill driver equipped with a chuck accepting a 0.125-inch straight shank.

Installation Notes

Secure the workpiece firmly before drilling to prevent rotation or movement. Use appropriate cutting fluid or coolant when drilling ferrous metals to extend bit life and maintain edge sharpness. Inspect the cutting edges before each use and replace the bit if chipping or dullness is observed. Disposal of worn high-speed steel tooling should follow applicable local regulations for metal waste.
