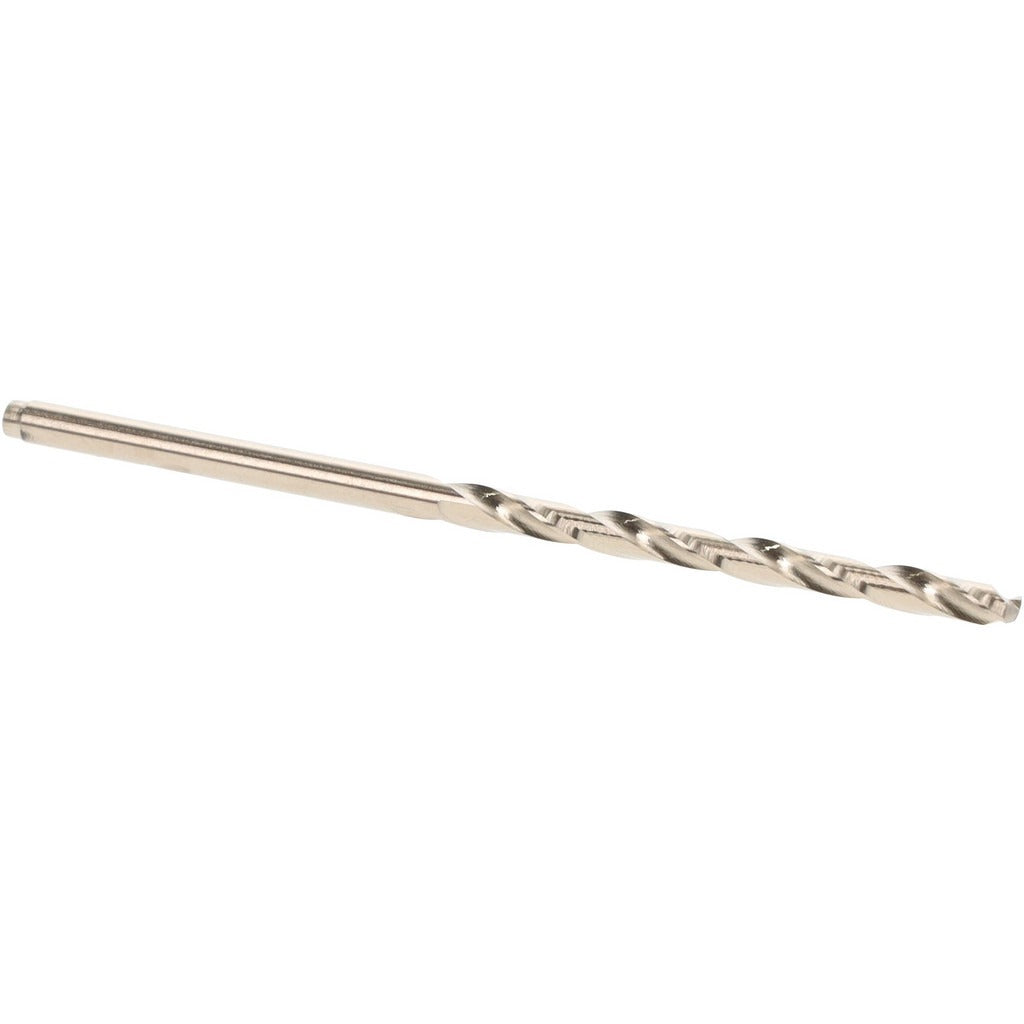

Titan Usa CD50007 Cobalt Jobber Drill Bit 7/64 Inch

Product Description

The TITAN USA CD50007 is a cobalt jobber-length drill bit designed for demanding drilling applications in hard and abrasive materials. Built from cobalt high-speed steel with an oxide and TiN coating, this bit delivers extended tool life when cutting through stainless steel, superalloys, and titanium. It features a 135-degree split point for reduced walking and faster penetration without a center punch. The straight cylindrical shank measures 7/64 inch (0.1094 inch decimal) and fits standard drill chucks. With a 2-flute right-hand spiral and a regular spiral type, chip evacuation stays clean throughout the cut. Licensed tradespeople and machinists reach for this bit when carbon-steel twist drills fall short on tough base metals.

The CD50007 is suited for drilling stainless steel, superalloys, and titanium in fabrication, maintenance, and service applications. The 1-1/2 inch flute length supports drilling depths up to 1.5 inches, making it a practical choice for through-hole and blind-hole work in structural components, pipe fittings, and brackets. It is sold individually, which suits field technicians and service pros who need a single replacement bit without purchasing a full index set.

Key Features

• Cobalt high-speed steel construction for heat and wear resistance in hard metals
• Oxide and TiN coating extends cutting edge life and reduces friction
• 135-degree split point reduces drill walking and lowers thrust force required
• Right-hand, 2-flute regular spiral promotes efficient chip removal
• Straight cylindrical shank compatible with standard drill chucks — no adapter required
• 14xD flute-to-diameter ratio provides jobber-length reach for typical through-hole drilling

Compatibility

Designed as an OEM-style replacement or direct-use cobalt jobber drill bit for applications requiring a 7/64 inch diameter bit with a straight cylindrical shank; primary workpiece materials are stainless steel, superalloys, and titanium per the CD50 series specification.

Installation Notes

Install in a keyed or keyless drill chuck rated for the shank diameter before applying power. Secure the workpiece firmly before drilling to prevent movement and tool breakage. Use appropriate cutting fluid or coolant when drilling stainless steel and superalloys to dissipate heat and extend bit life. Inspect the cutting edges before each use; cobalt bits subjected to overheating may chip rather than dull gradually.
