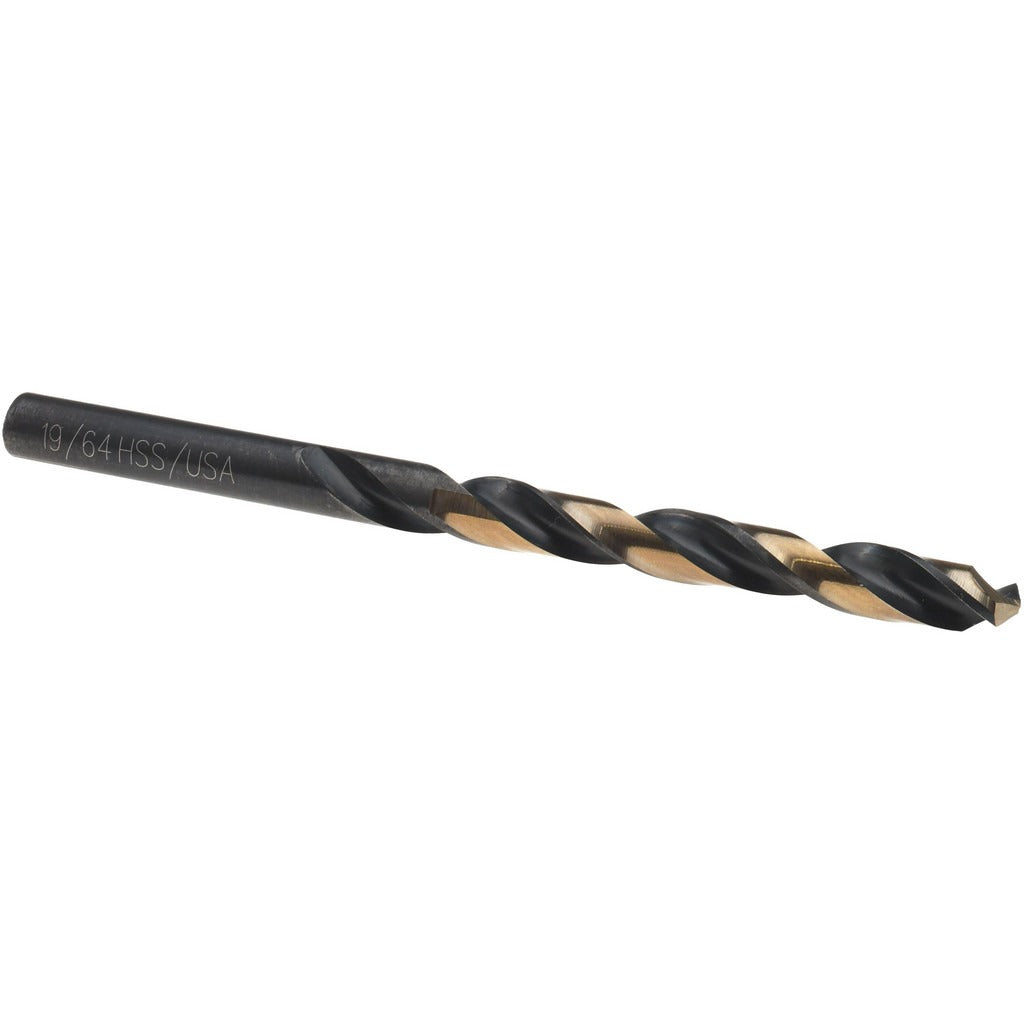

Titan Usa CD44519 Jobber Drill Bit 19/64 in Hss Split Point

Product Description

The TITAN USA CD44519 is a heavy-duty high speed steel (HSS) jobber-length drill bit designed for precision drilling in ferrous and non-ferrous metals. The 19/64 inch diameter bit features a 135-degree split point that reduces walking and improves self-centering on entry, minimizing the need for a center punch. A black and gold oxide coating adds surface hardness and provides moderate lubricity during cutting. With an overall length of 4.375 inches and a flute length of 3.0625 inches, this bit handles general-purpose through-hole drilling in typical machining, fabrication, and field service applications. It is part of the CD44 series and is rated as a heavy-duty grade bit.

This drill bit is suited for drilling steel and cast iron in production, maintenance, and repair environments. The right-hand spiral flute design with a regular spiral type promotes efficient chip evacuation during through-hole operations. The straight cylindrical shank with a diameter of 0.2969 inches fits standard 3-jaw drill chucks used across drill presses, hand drills, and CNC drilling setups. Machinists, fabricators, pipefitters, and field service technicians working with structural steel or cast iron components will find this bit appropriate for daily use.

Key Features

• 19/64 inch (0.2969 inch) diameter with matching straight shank for secure chuck grip
• 135-degree split point reduces thrust force and improves entry accuracy on metal surfaces
• High speed steel construction with black and gold oxide coating for extended wear resistance
• Regular spiral flute with 3.0625 inch flute length supports maximum drilling depth of 3.0625 inches
• Right-hand cutting direction compatible with standard drill press and handheld drill operation
• Heavy-duty grade designation rated for repeated use in steel and cast iron workpieces

Compatibility

Designed for drilling steel and cast iron workpieces. Fits any standard drill chuck accepting a 0.2969 inch straight cylindrical shank. Compatible with drill presses, handheld electric drills, and CNC drilling equipment equipped with a 3-jaw chuck.

Installation Notes

This bit is installed and removed by a licensed machinist, fabricator, or qualified technician using a standard keyed or keyless drill chuck. Secure the shank fully in the chuck before operation and verify chuck tightness to prevent slippage. Use appropriate cutting fluid or lubricant when drilling steel or cast iron to extend bit life and improve hole quality. Inspect the cutting edges and split point for wear or chipping before each use and replace the bit if the point shows visible damage.
