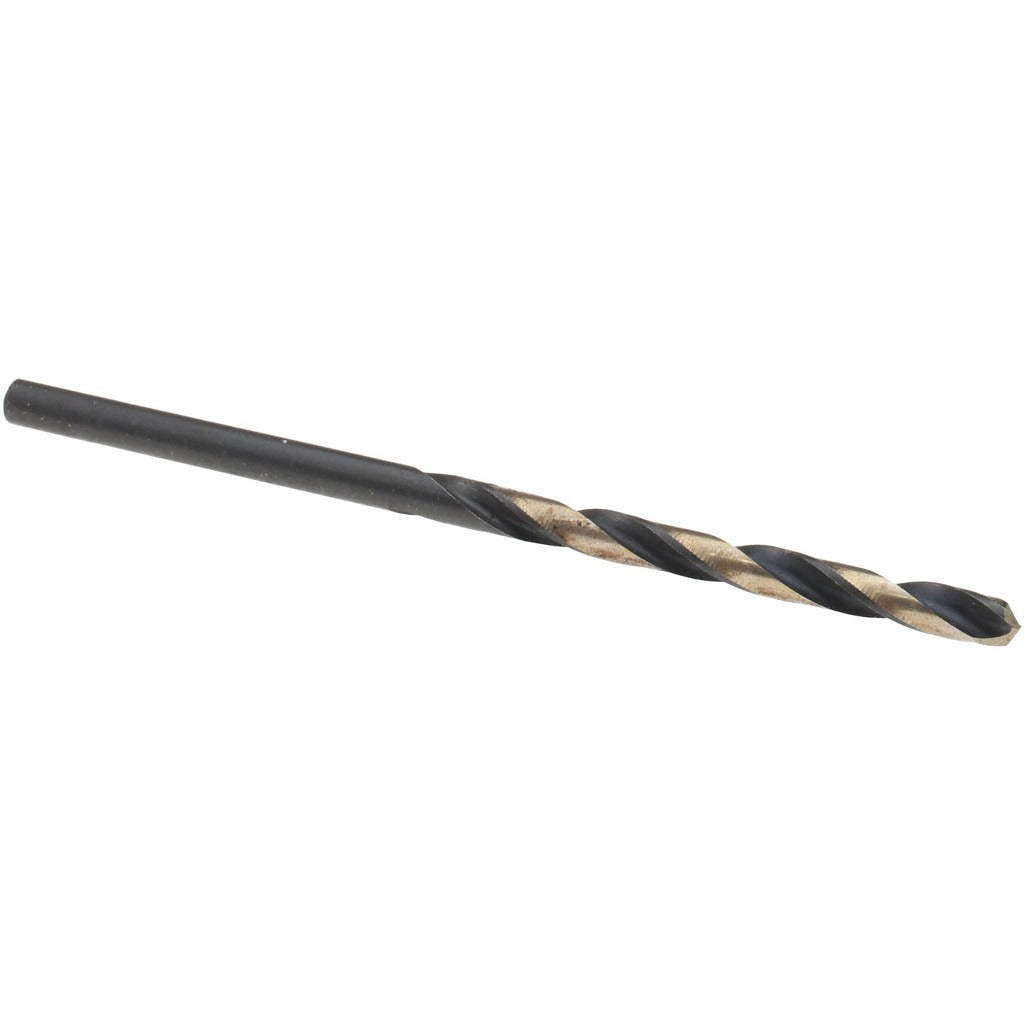

Titan Usa CD44508 Jobber Drill Bit 1/8 Inch Hss

Product Description

The TITAN USA CD44508 is a jobber-length twist drill bit designed for general-purpose drilling in metal and hard materials. Built from high speed steel (HSS) with a black oxide and TiN coating, it resists heat and wear during extended use. The 135-degree split point reduces walking at the start of a hole and requires less feed pressure than a standard 118-degree point. The bit measures 1/8 inch (0.1250 inch) in diameter with a 2-3/4 inch overall length and a 1-5/8 inch flute length. A straight-cylindrical shank seats securely in standard three-jaw chucks on hand drills, drill presses, and CNC spindles. Two spiral flutes clear chips efficiently throughout the cut.

The CD44508 is suited for drilling steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium. It is a practical choice for HVAC technicians, plumbers, electricians, and fabricators who need a reliable small-diameter bit for sheet metal, structural steel, and pipe work. It fits any standard drill chuck that accepts a 1/8 inch straight-cylindrical shank, making it compatible with corded and cordless drills and benchtop drill presses used in trade and shop environments.

Key Features

• 135-degree split point reduces drill walking and lowers feed pressure on hard materials
• High speed steel construction handles heat generated in steel and stainless steel drilling
• Black oxide and TiN coating extends tool life and reduces friction
• 1-5/8 inch flute length supports drilling depths up to 1.6250 inches
• Right-hand cutting, two-flute spiral design for efficient chip evacuation
• Straight-cylindrical shank fits standard three-jaw chucks without adapters

Compatibility

Designed for use in any standard drill chuck accepting a 1/8 inch straight-cylindrical shank, including hand drills, drill presses, and CNC drilling applications. Rated for use in steel, stainless steel, cast iron, non-ferrous metal, and superalloys and titanium workpieces.

Installation Notes

Secure the shank fully in the chuck before drilling and verify the chuck is tightened with the chuck key on all three positions. Use cutting fluid or coolant when drilling stainless steel or superalloys to reduce heat buildup and extend bit life. For drill press use, clamp the workpiece securely and set spindle speed appropriate to the material and bit diameter. Inspect the cutting edges before each use and replace the bit if the point shows chipping or the coating is worn through at the flute edges.
