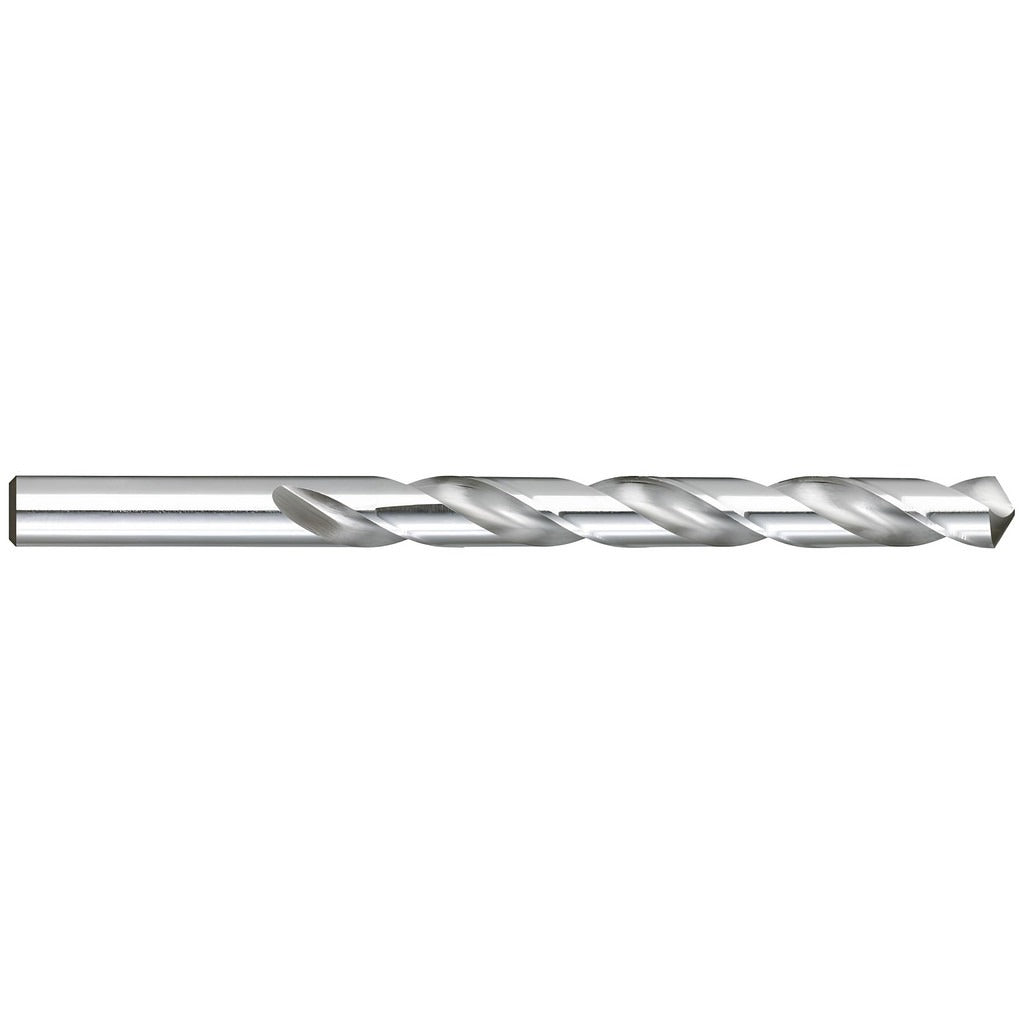

Titan Usa CD40851 Jobber Drill Bit Size 52 Hss

Product Description

The TITAN USA CD40851 is a size 52 wire gauge jobber-length drill bit manufactured from high speed steel with a bright uncoated finish. It features a 118-degree standard point angle and a right-hand spiral flute configuration, making it suited for general-purpose drilling in non-ferrous metals and similar materials. The straight cylindrical shank measures 0.0670 inches in diameter, matching the bit diameter, and the overall length is 2 inches with a flute length of 1 inch and a maximum drilling depth of 1 inch. Licensed trades and machining professionals use this bit in standard drill chucks on benchtop or handheld equipment where wire gauge sizing is specified.

The CD40851 is designed for drilling non-ferrous metal workpieces in production and maintenance applications. Its 15xD flute-to-diameter ratio supports chip evacuation during through-hole and blind-hole operations. The regular spiral flute geometry is appropriate for materials such as aluminum, brass, copper, and similar non-ferrous stock. Typical install and use scenarios include fabrication shops, mechanical contractors, and service technicians requiring precise small-diameter hole work. Sold individually with a minimum order quantity of 12 units per order.

Key Features

• Size 52 wire gauge, 0.0670 inch decimal equivalent diameter
• 118-degree standard point angle for general-purpose entry and centering
• High speed steel construction for durability across repeated use cycles
• Bright uncoated finish — no coating buildup that could affect tolerance in tight-clearance holes
• Right-hand cutting, regular spiral flute for efficient chip removal
• Diameter tolerance of -0.0005 to +0.0000 inches for consistent hole sizing

Compatibility

Designed as a standard jobber-length drill bit for use in any drill press, hand drill, or CNC equipment accepting a straight cylindrical shank of 0.0670 inches diameter; part of the TITAN USA CD40 series.

Installation Notes

Installation is performed by machinists, mechanical contractors, or maintenance technicians using standard drill equipment with a compatible chuck. Ensure the shank is fully seated and the chuck is tightened before operation. Use appropriate speeds and feeds for the workpiece material to avoid bit deflection or premature wear on small-diameter tooling. Secure the workpiece firmly before drilling to prevent movement and maintain hole location accuracy.
