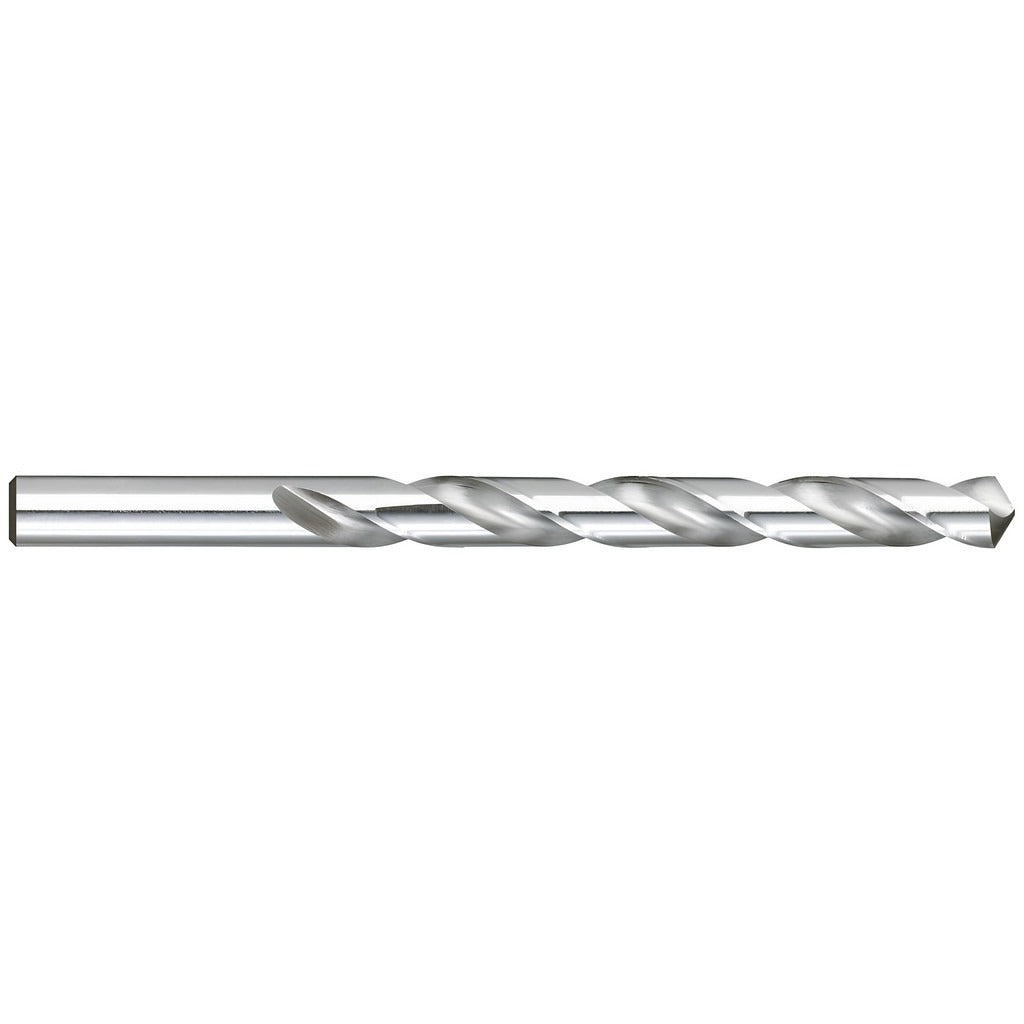

Titan Usa CD40834 Jobber Drill Bit No. 31 Hss 118 Deg

Product Description

The TITAN USA CD40834 is a No. 31 wire-size jobber-length drill bit ground from high speed steel with a standard 118-degree split point. Designed for general-purpose drilling, it produces clean through-holes in non-ferrous metals, plastics, and soft materials. The bright, uncoated finish keeps the bit at its as-ground hardness without added coating thickness. At 2.625 inches overall length with a 1.5-inch spiral flute, this is a standard jobber proportions bit suited for drill presses, hand drills, and CNC drilling operations where a straight-cylindrical shank and right-hand cut are required.

The CD40834 is used in production, maintenance, and light fabrication environments wherever a wire-gauge No. 31 hole is needed. The 0.1110-inch diameter, two-flute regular-spiral geometry suits drilling in aluminum, brass, copper, and similar non-ferrous workpieces. It is sold individually and fits standard drill chucks accepting straight-cylindrical shanks. Machinists, pipefitters, electricians, and HVAC technicians commonly stock wire-gauge bits like this for pilot holes, tap drilling, and sheet-metal work.

Key Features

• No. 31 wire size with 0.1110-inch diameter and tight tolerance of -0.0005 to +0.0000 inches
• 118-degree standard point angle for general-purpose entry in non-ferrous metals
• High speed steel construction provides hardness and wear resistance without coating
• Regular right-hand spiral flute, 1.5 inches long, promotes chip evacuation
• Straight-cylindrical shank at 0.1110-inch diameter fits standard drill chucks
• 14xD flute-to-diameter ratio delivers full jobber-length reach at 2.625 inches OAL

Compatibility

Designed as a standard jobber-length drill bit for use in any drill press, hand drill, or CNC spindle accepting a straight-cylindrical shank of 0.1110 inches diameter; suitable for drilling non-ferrous metals and similar materials.

Installation Notes

Secure the shank fully in the chuck before operation and confirm runout is within acceptable limits for the application. Always wear appropriate eye protection and secure the workpiece to prevent rotation. Ensure the drill press or hand tool is powered off and properly locked out before changing bits. Cutting fluid or coolant is not required for light non-ferrous work, but applying cutting oil will extend bit life in production drilling cycles.
