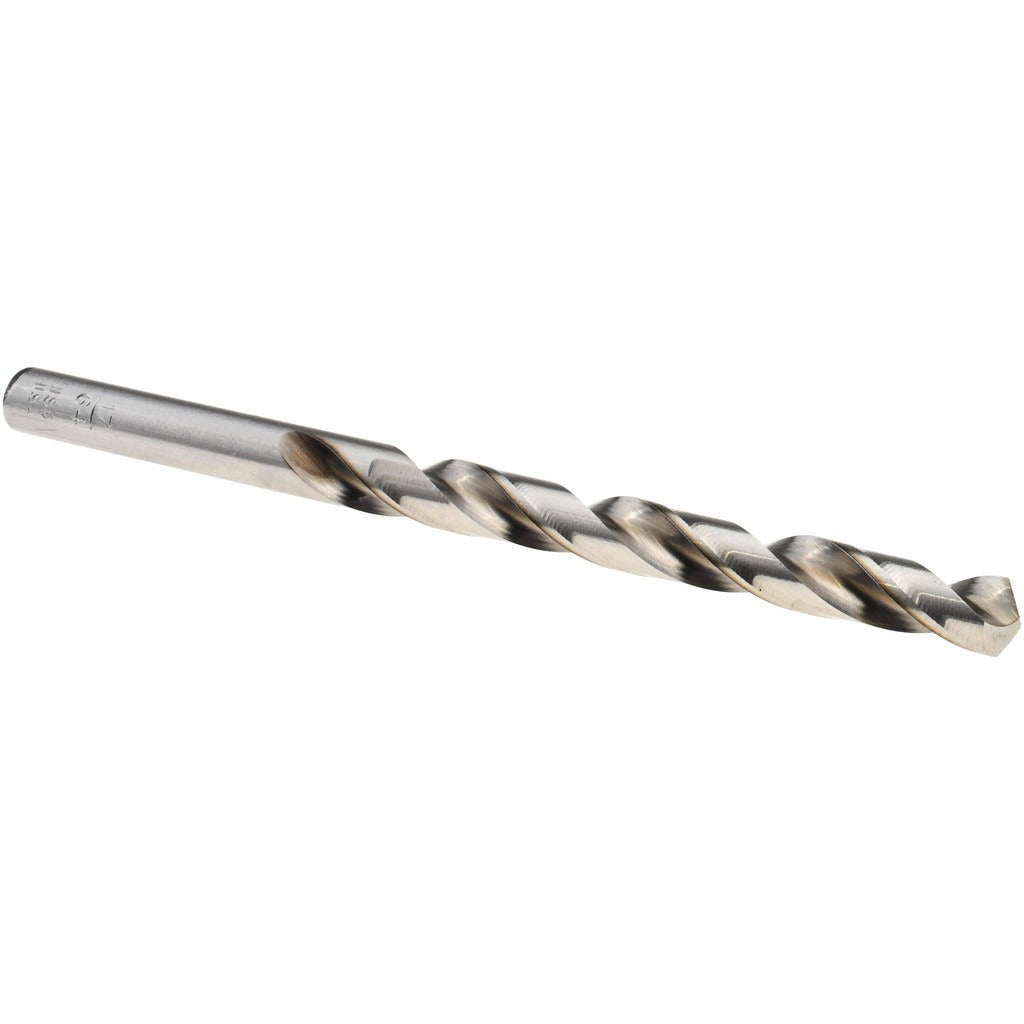

Titan Usa CD40617 Jobber Drill Bit 17/64 Inch Hss

Product Description

The TITAN USA CD40617 is a high speed steel jobber-length drill bit designed for general-purpose drilling in non-ferrous metals and similar materials. It measures 17/64 inch (0.2656 inch) in diameter with an overall length of 4.125 inches and a flute length of 2.875 inches. The standard 118-degree point angle makes it suitable for a wide range of common drilling applications. The bright, uncoated finish keeps the surface clean and allows technicians to inspect the bit for wear at a glance. This bit is part of the TITAN USA CD40 Series and is sold individually.

This drill bit is intended for right-hand rotation drilling in non-ferrous metals such as aluminum, brass, and copper, as well as plastics and similar softer workpiece materials. It is well-suited for use in maintenance, repair, and fabrication environments where a standard jobber-length bit is needed. The straight cylindrical shank fits standard three-jaw drill chucks found on handheld drills, drill presses, and CNC equipment. Electricians, plumbers, HVAC technicians, and general tradespeople commonly use bits in this size range for conduit, pipe, sheet metal, and bracket work.

Key Features

• 17/64 inch diameter with a tight tolerance of -0.0010 to +0.0000 inch for consistent hole sizing
• 118-degree standard point angle for reliable starting and penetration in non-ferrous materials
• High speed steel construction provides durability across repeated use
• Bright, uncoated finish allows easy visual inspection of the cutting edge
• Two-spiral flutes with regular helix for efficient chip evacuation
• Straight cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as a standard jobber-length drill bit for use in any three-jaw chuck drill press, handheld power drill, or compatible CNC spindle accepting a straight cylindrical shank with a 17/64 inch (0.2656 inch) diameter. Rated for primary use in non-ferrous metal workpiece materials.

Installation Notes

Install securely in a properly sized drill chuck and confirm the shank is fully seated before operating. Always wear appropriate eye protection when drilling. Secure the workpiece firmly to prevent movement during cutting. Inspect the cutting edges before each use and replace the bit if chipping or excessive wear is observed.
