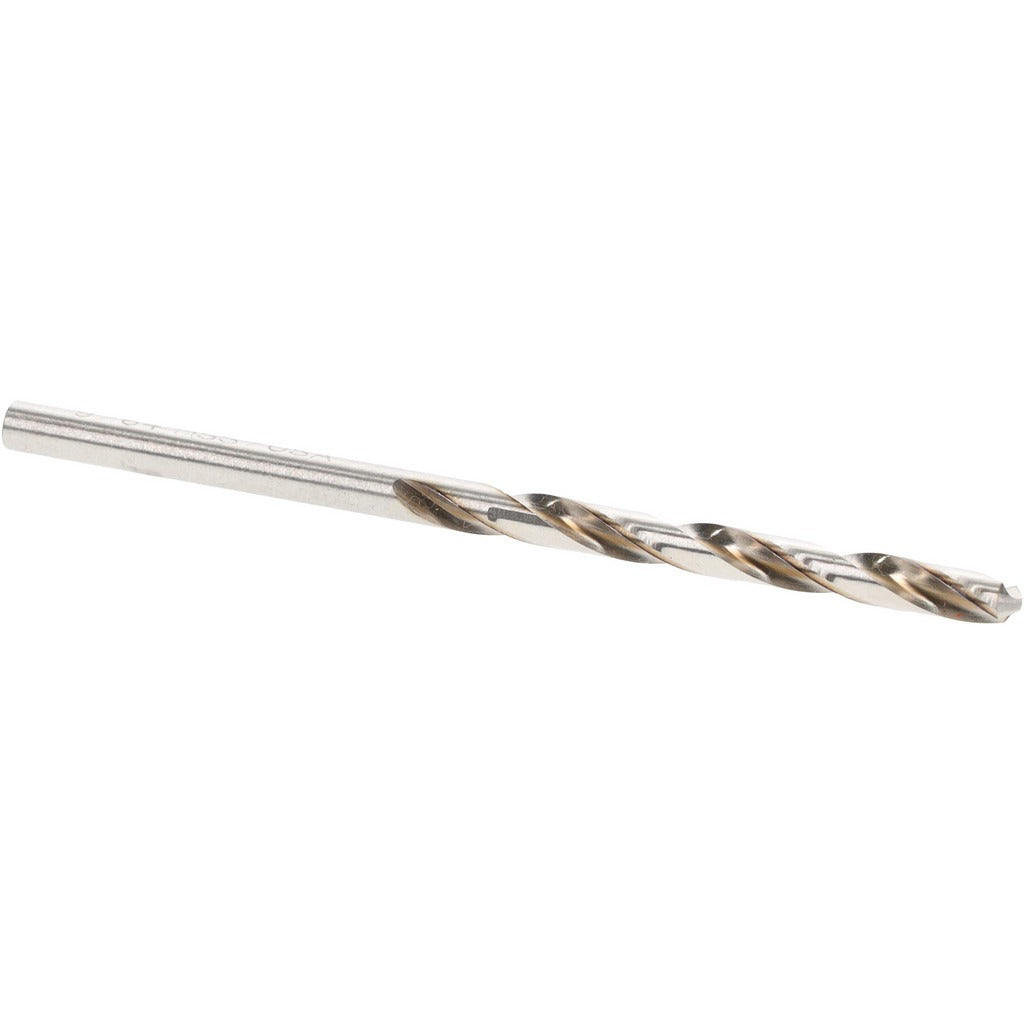

Titan Usa CD40609 Jobber Drill Bit 9/64 Inch Hss

Product Description

The TITAN USA CD40609 is a 9/64 inch (0.1406 inch) high speed steel jobber-length drill bit designed for general-purpose drilling in non-ferrous metals and similar materials. It features a standard 118-degree point angle and a bright, uncoated finish. The two-flute spiral design with a regular spiral type provides efficient chip evacuation during drilling. With an overall length of 2.875 inches and a flute length of 1.75 inches, this bit fits standard drill chucks and is suited for use by machinists, HVAC technicians, electricians, and plumbers who need reliable small-diameter drilling on the job.

The CD40609 is well suited for light-duty production drilling and general maintenance applications in both shop and field environments. Its straight cylindrical shank fits directly into standard drill chucks without adapters. Typical use cases include pilot hole drilling, sheet metal work, and light structural drilling in non-ferrous materials. The compact jobber length makes it practical for use in hand drills and drill presses alike.

Key Features

• 9/64 inch diameter (0.1406 inch) with a diameter tolerance of -0.0007 to +0.0000 inches for consistent sizing
• 118-degree standard point angle for general-purpose drilling in non-ferrous metals
• High speed steel construction provides durability across a wide range of drilling applications
• Bright, uncoated finish — no coating to chip or peel during use
• Two-flute regular spiral design promotes efficient chip removal and reduces heat buildup
• Straight cylindrical shank (9/64 inch) for direct chuck mounting with no adapter required

Compatibility

Designed as a standard jobber-length drill bit for use in hand drills, drill presses, and similar drilling equipment accepting a straight cylindrical shank. Rated for drilling in non-ferrous metals as the primary workpiece material.

Installation Notes

Secure the shank fully in the drill chuck before use and verify the chuck is tightened with a key where applicable. Always wear appropriate eye protection when drilling. For best results and longest bit life, use cutting fluid when drilling metals and avoid excessive feed pressure on small-diameter bits. Inspect the cutting edges before each use and replace any bit showing signs of wear or damage.
