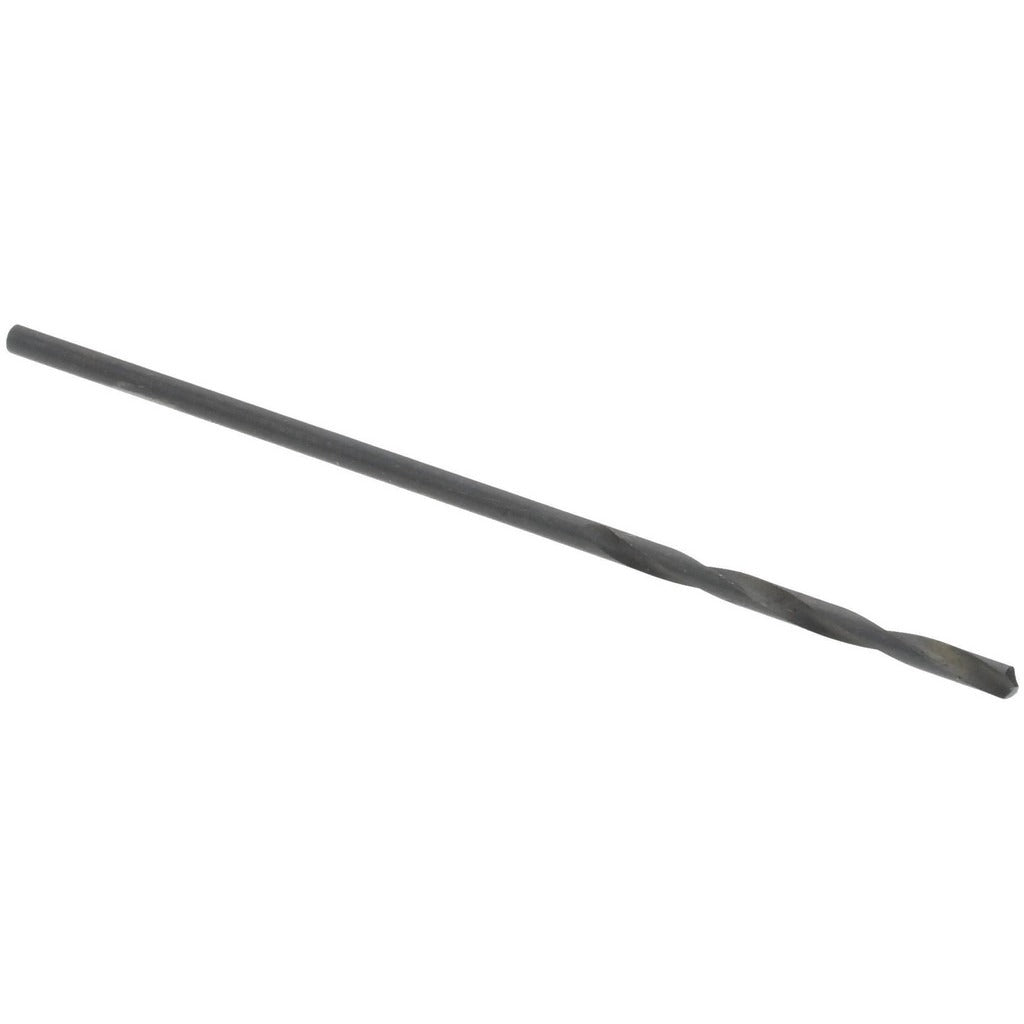

Titan Usa CD40260 Jobber Drill Bit 60 Hss Black Oxide

Product Description

The TITAN USA CD40260 is a wire gauge size 60 jobber-length drill bit designed for precision drilling in tight-tolerance applications. Manufactured from high speed steel (HSS) with a black oxide coating, it measures 0.0400 inches in diameter and 1.625 inches overall length. The 118-degree standard point angle suits general-purpose drilling across a wide range of workpiece materials. The two-flute, regular spiral design promotes efficient chip evacuation during through-hole and blind-hole operations. This bit is intended for use by machinists, tool and die technicians, and maintenance professionals who require consistent performance in small-diameter drilling work.

This drill bit is suited for drilling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. Its 11/16-inch flute length supports a maximum drilling depth of 0.6875 inches, making it appropriate for short-run production and maintenance drilling tasks on CNC machines, drill presses, and hand-held power tools. The straight-cylindrical shank with a 0.0400-inch diameter fits standard drill chucks without the need for adapters.

Key Features

• Wire gauge size 60 at 0.0400 inches diameter for precise small-diameter drilling
• 118-degree standard point angle for general-purpose use across multiple workpiece materials
• High speed steel construction provides hardness and heat resistance during metal cutting
• Black oxide coating reduces friction and provides light corrosion resistance
• Two-flute regular spiral design promotes chip clearance and consistent hole finish
• Straight-cylindrical shank compatible with standard drill chucks

Compatibility

Designed as a general-purpose jobber drill bit in the TITAN USA CD40 Series, compatible with any drill chuck that accepts a 0.0400-inch straight-cylindrical shank. Suitable for use in CNC machining centers, drill presses, and portable power drills.

Installation Notes

Installation and use of this drill bit should be performed by qualified machinists or maintenance technicians familiar with small-diameter tooling. Ensure the drill chuck is fully secured and the workpiece is properly clamped before operation. Power down the machine completely before changing bits. Consult machine manufacturer specifications for appropriate spindle speed and feed rate when drilling the listed workpiece materials.
