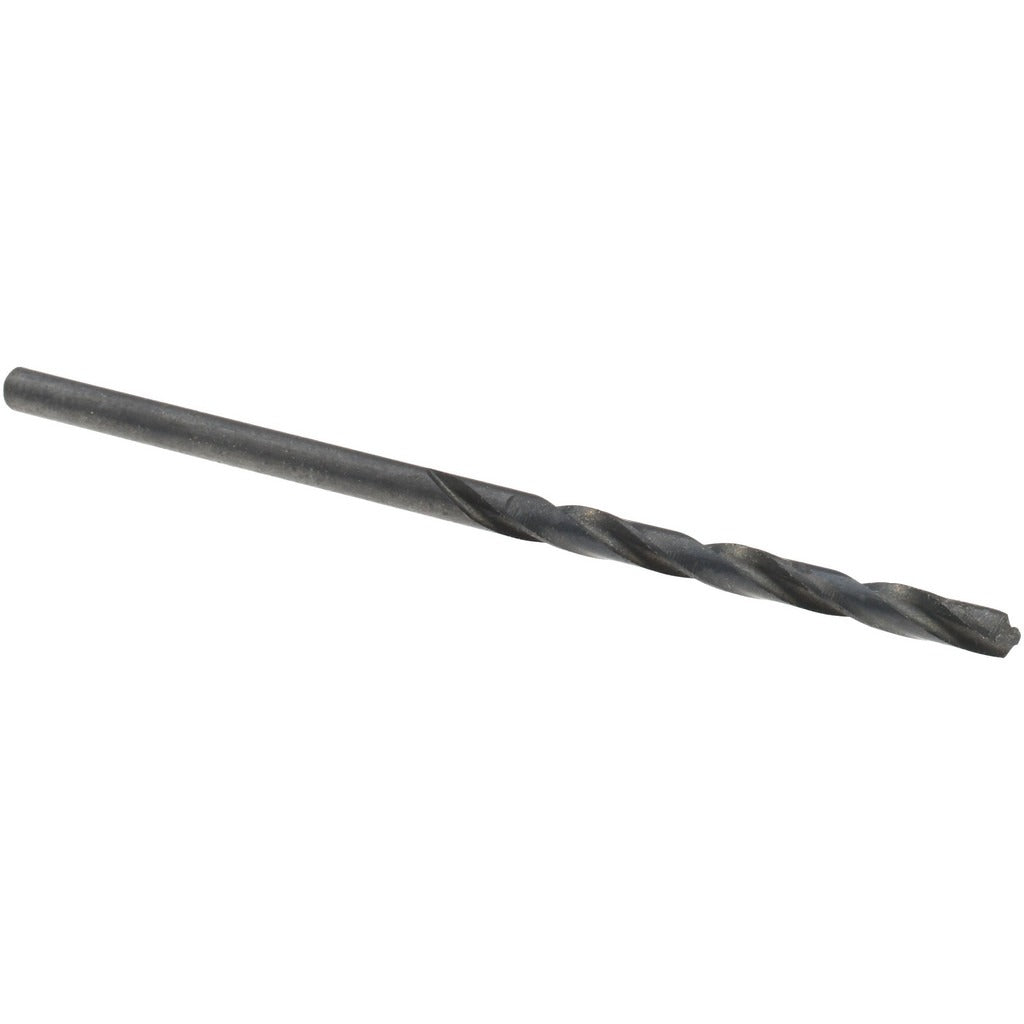

Titan Usa CD40234 Jobber Drill Bit No 34 Wire Size Hss

Product Description

The TITAN USA CD40234 is a wire-gauge jobber-length drill bit sized to No. 34 (0.1110 inches), designed for precision drilling in metalworking applications. Built from high speed steel (HSS) with a black oxide coating, it delivers consistent performance across a range of ferrous and non-ferrous workpiece materials. The standard 118-degree split-point geometry initiates cleanly without a center punch on most metals. At 2.625 inches overall length with a 1.5-inch spiral flute, this bit fits standard drill chucks and is a common choice for production shops, MRO technicians, and field service work requiring precise wire-gauge hole sizing.

This bit is suited for drilling steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium. The straight cylindrical shank and regular spiral flute make it compatible with conventional drill presses, hand drills, and CNC drilling setups. The 14xD flute-to-diameter ratio supports controlled chip evacuation in moderate-depth applications up to 1.5 inches. It is a practical choice for electricians, machinists, pipefitters, and maintenance trades needing reliable wire-gauge drilling capacity in a standard jobber format.

Key Features

• No. 34 wire gauge size — 0.1110 inches diameter with a tolerance of -0.0005 to +0.0000 inches
• 118-degree standard point angle for broad material compatibility
• High speed steel construction with black oxide coating for wear resistance and corrosion protection
• Right-hand cutting, regular spiral flute for efficient chip removal
• Straight cylindrical shank — fits standard drill chucks without adapters
• 1.5-inch maximum drilling depth at 14xD flute-by-diameter ratio

Compatibility

Designed as a standard jobber-length drill bit for use in any drill press, hand drill, or CNC machine accepting a straight cylindrical shank. Suitable for drilling steel, stainless steel, cast iron, non-ferrous metals, and superalloys per workpiece material codes P, M, K, N, and S.

Installation Notes

Install into a properly sized drill chuck and tighten securely before operation. Ensure the workpiece is clamped or fixtured to prevent movement during drilling. Apply appropriate cutting fluid when drilling stainless steel, cast iron, or superalloys to extend bit life and improve hole quality. Inspect the cutting edges before each use and replace the bit if chipping or excessive wear is present.
