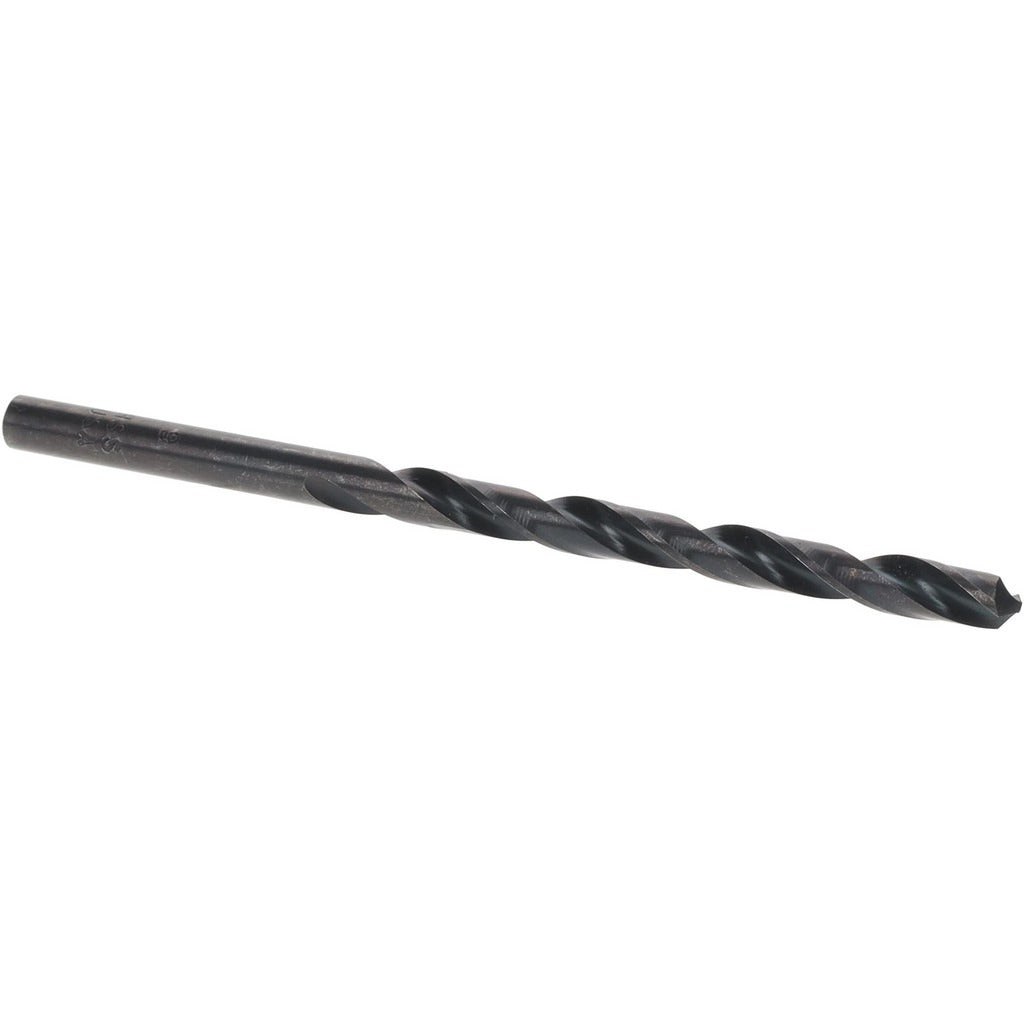

Titan Usa CD40209 Jobber Drill Bit No. 9 Hss Black Oxide

Product Description

The TITAN USA CD40209 is a No. 9 wire-size jobber-length drill bit designed for general-purpose drilling in metalworking applications. Ground from high speed steel and finished with a black oxide coating, this bit delivers consistent performance across a range of workpiece materials. The 118-degree standard point angle provides a self-centering entry suitable for most production and maintenance drilling tasks. The straight cylindrical shank accepts standard drill chucks without modification. At 3.625 inches overall length with a 2.4375-inch flute length, the CD40209 fits the classic jobber-length profile preferred by machinists and maintenance technicians for everyday through-hole work.

This drill bit is suited for drilling steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium. It is a practical choice for job-shop, maintenance-repair-operations, and light production environments where a reliable wire-gauge drill is needed without specialty tooling. The right-hand, regular-spiral, two-flute configuration promotes efficient chip evacuation during standard drilling operations. Maximum drilling depth matches the flute length at 2.4375 inches, making it appropriate for through-holes and blind holes within that range. It belongs to the CD40 series, which covers jobber drills in the 0.1500 to 0.2000 decimal inch diameter range.

Key Features

• No. 9 wire size with a 0.1960-inch diameter for precision wire-gauge hole sizing
• 118-degree standard point angle for reliable entry on flat and curved workpiece surfaces
• High speed steel construction with black oxide finish to reduce friction and inhibit corrosion
• Right-hand, regular-spiral, two-flute design promotes effective chip removal
• Straight cylindrical shank with zero flats fits standard three-jaw drill chucks
• No coolant-through requirement, simplifying use in manual drill presses and hand drills

Compatibility

Designed as a standard jobber-length wire-gauge drill bit compatible with any drill press, CNC machining center, or hand drill equipped with a chuck capable of accepting a 0.1960-inch straight cylindrical shank. Suitable for drilling steel, stainless steel, cast iron, non-ferrous metals, and superalloys and titanium as indicated by material codes P, M, K, N, and S.

Installation Notes

Installation is performed by machinists, tool-and-die technicians, or maintenance professionals using a drill press, mill, or hand drill with an appropriately sized chuck. Secure the shank fully in the chuck and verify runout before beginning the cut. Always wear appropriate eye protection and secure the workpiece before drilling. Follow applicable shop safety standards and machine manufacturer guidelines for feed rate and speed selection based on workpiece material.
