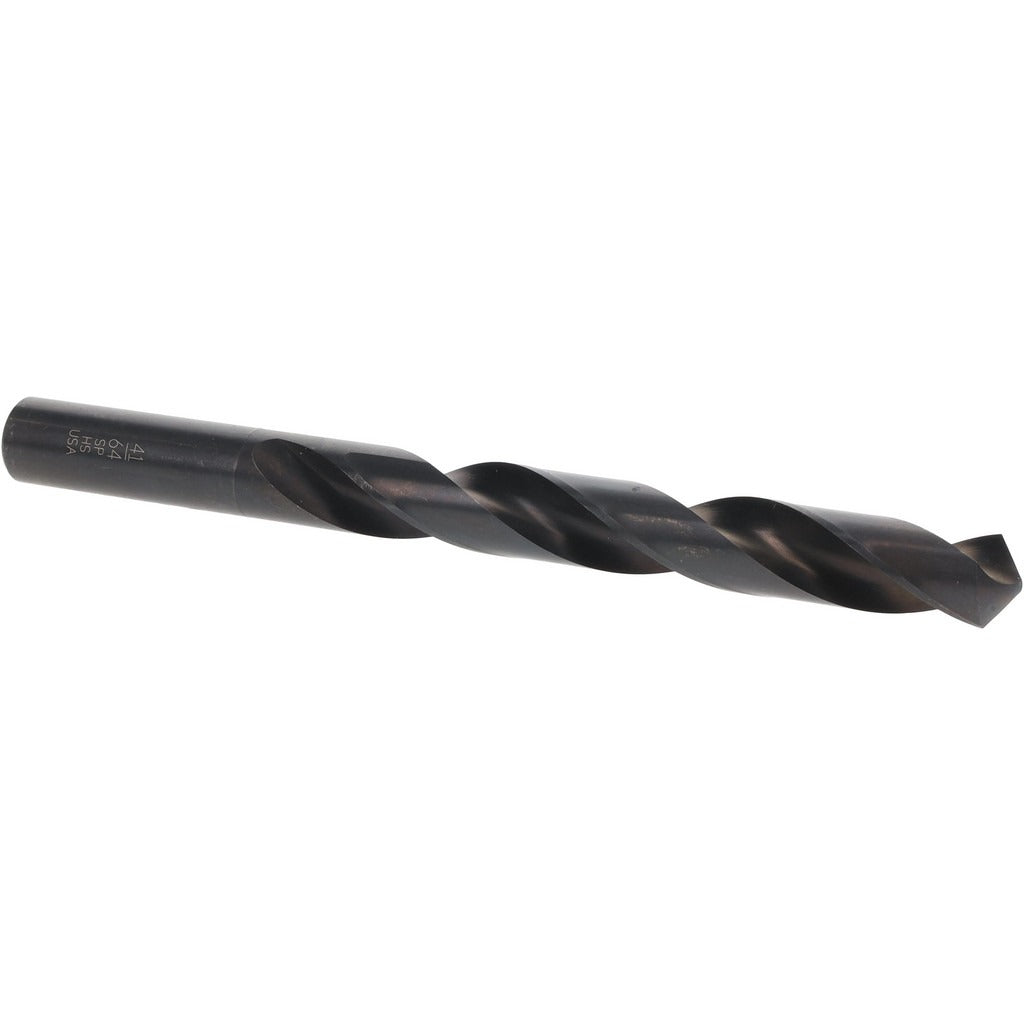

Titan Usa CD40041 Jobber Drill Bit 41/64 Inch Hss

Product Description

The TITAN USA CD40041 is a jobber-length drill bit designed for general-purpose drilling in metal and other industrial materials. Built from high speed steel with a black oxide coating, it measures 41/64 inches (0.6406 inches) in diameter and carries a standard 118-degree point angle suited for drilling into steel, stainless steel, cast iron, and non-ferrous metals. The overall length is 7.125 inches with a spiral flute configuration that promotes chip evacuation during through-hole and blind-hole drilling operations. This bit is a staple in both shop and field environments where consistent hole quality and tool longevity are required.

The CD40041 is intended for drilling applications in metal fabrication, mechanical assembly, HVAC installation, plumbing rough-in, and general trade work. The straight cylindrical shank seats securely in standard drill chucks across a wide range of handheld and bench-mounted drilling equipment. Its regular spiral and two-flute geometry make it well suited for drilling steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium-bearing materials. This bit is sold individually and is appropriate wherever a fractional 41/64-inch diameter hole is required.

Key Features

• 41/64 inch (0.6406 inch) diameter with a diameter tolerance of -0.0012 to +0.0000 inches for consistent hole sizing
• 118-degree standard point angle for general-purpose drilling across a broad range of workpiece materials
• High speed steel construction with black oxide coating for improved surface hardness and corrosion resistance
• Two spiral flutes with 5.1875-inch flute length support effective chip removal and a maximum drilling depth of 5.1875 inches
• Straight cylindrical shank (0.6406 inch diameter, 1.9375 inches long) fits standard drill chucks without adapters
• Right-hand cutting direction, regular spiral, no coolant-through requirement — suitable for dry drilling operations

Compatibility

Designed as an OEM-style replacement and standard-stock jobber drill bit compatible with any drill press, magnetic drill, or handheld drill equipped with a chuck sized to accept a straight cylindrical 41/64-inch shank. Part of the TITAN USA CD40 Series.

Installation Notes

Installation is performed by machinists, maintenance technicians, HVAC mechanics, electricians, and plumbers using standard drill chucks. Ensure the workpiece is securely clamped before drilling to prevent rotation or kick. Use appropriate cutting fluid or lubricant when drilling stainless steel, superalloys, or hardened steel to extend tool life. Inspect the cutting edges before each use and replace the bit if chipping or excessive wear is present.
