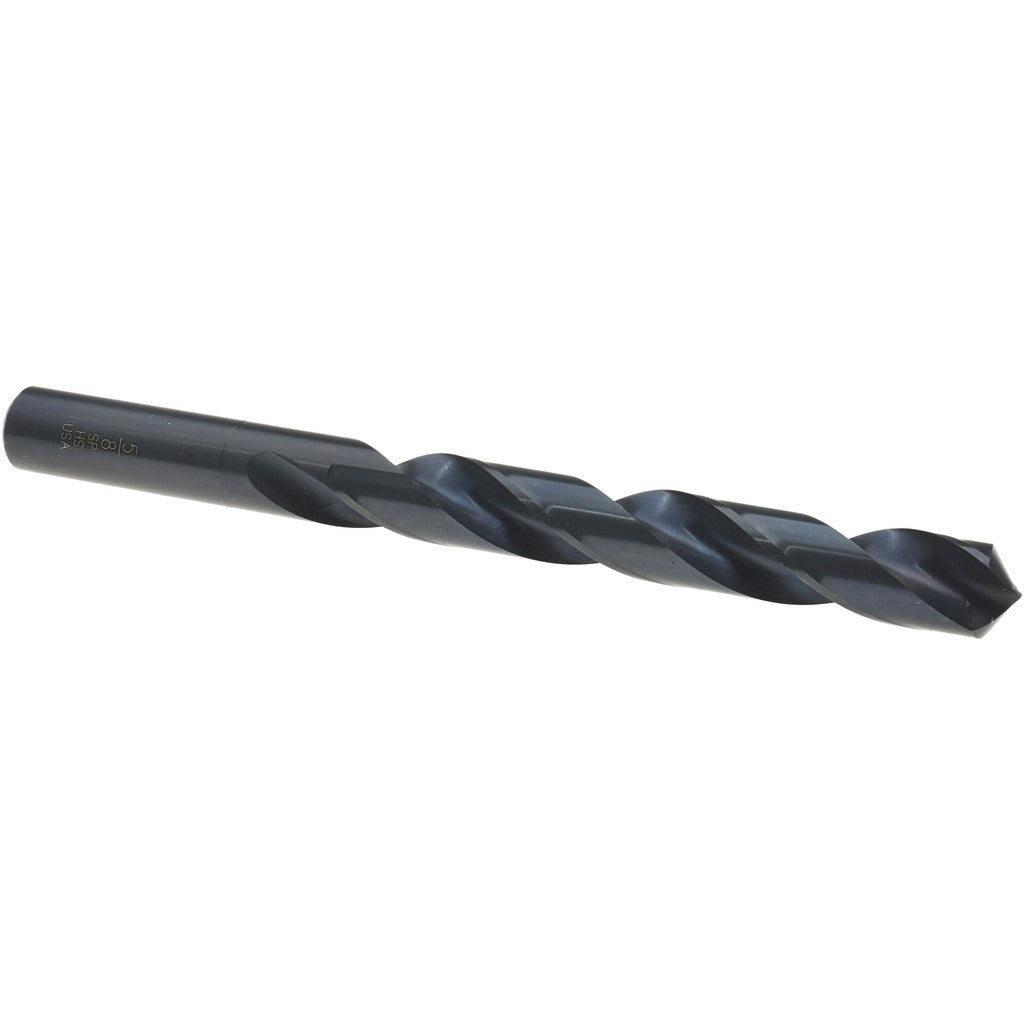

Titan Usa CD40040 5/8 Inch Hss Jobber Drill Bit

Product Description

The TITAN USA CD40040 is a 5/8-inch diameter jobber-length drill bit built from high speed steel (HSS) with a black oxide coating. It features a 118-degree standard point angle and a right-hand spiral flute configuration, making it a general-purpose drilling tool for metalworking and fabrication applications. The overall length is 7.125 inches with a flute length of 5.1875 inches, providing the reach needed for typical jobber-depth holes. The straight-cylindrical shank measures 0.625 inches in diameter, compatible with standard 3-jaw drill chucks. The black oxide finish reduces friction at the cutting edge and provides a degree of corrosion resistance during storage and use.

This drill bit is intended for use on steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium. It suits metalworking shops, maintenance technicians, pipefitters, and fabricators who need a reliable general-purpose twist drill for production or service work. The CD40 series is designed for use in drill presses, lathes, and hand-held drill motors where a straight shank bit is called for. Maximum drilling depth matches the flute length at 5.1875 inches.

Key Features

• High speed steel construction for durability in ferrous and non-ferrous metal drilling
• Black oxide coating reduces friction and provides mild corrosion resistance
• 118-degree standard point angle for general-purpose material entry
• Right-hand cut, regular spiral, 2-flute design for efficient chip evacuation
• Straight-cylindrical shank fits standard 3-jaw drill chucks without an adapter
• Diameter tolerance of -0.0012 to +0.0000 inches for consistent hole sizing

Compatibility

Designed for use in drill presses, lathes, and hand-held drill motors that accept a straight-cylindrical shank. Suitable for drilling steel, stainless steel, cast iron, non-ferrous metals, and superalloys and titanium as noted in the TITAN USA CD40 series specifications.

Installation Notes

Installation and use of this drill bit is typically performed by machinists, maintenance technicians, or fabricators. Secure the straight shank firmly in a 3-jaw chuck and verify concentricity before drilling. Use appropriate cutting fluid for ferrous metals, especially stainless steel and superalloys, to manage heat buildup and extend bit life. Do not exceed the rated maximum drilling depth of 5.1875 inches.
