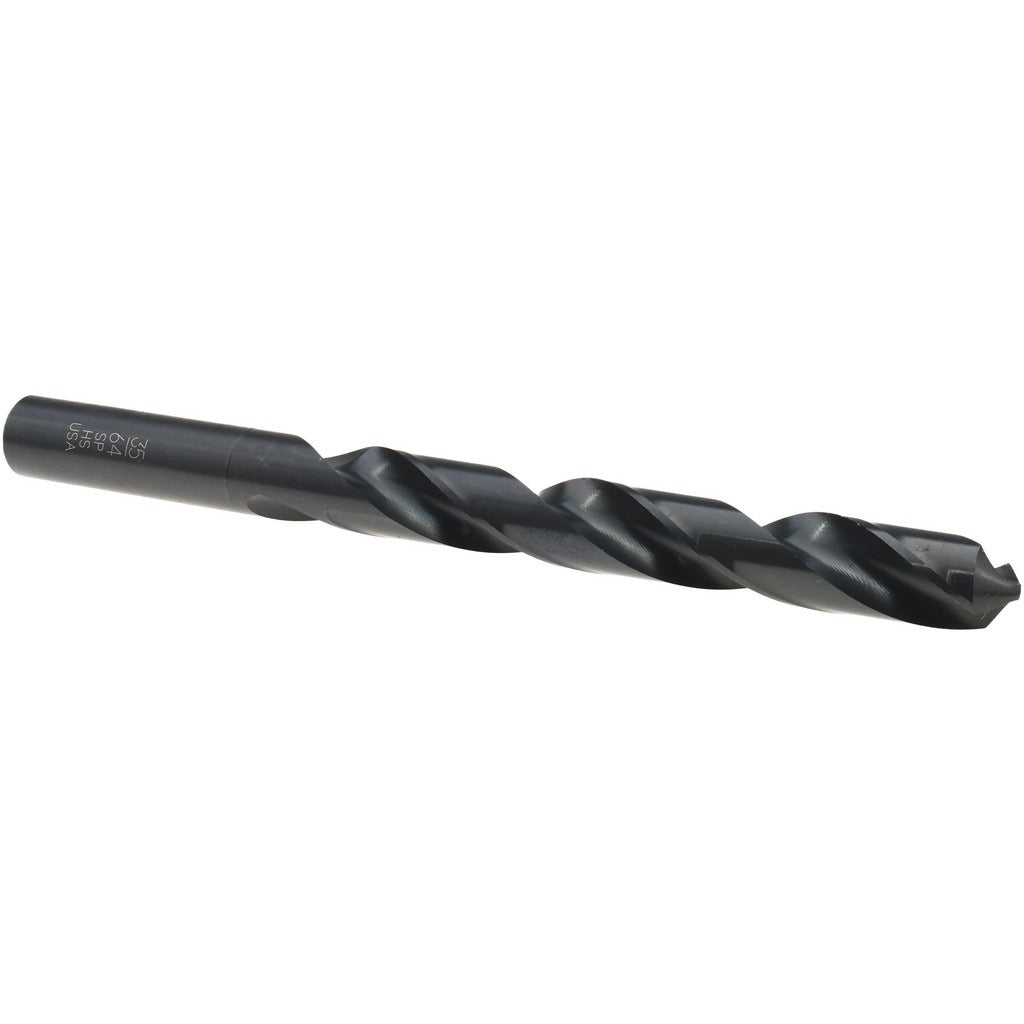

Titan Usa CD40035 Jobber Drill Bit 35/64 in Hss Black Oxide

Product Description

The TITAN USA CD40035 is a high speed steel jobber-length drill bit designed for precision drilling in metal and alloy workpiece materials. The bit measures 35/64 inch (0.5469 inch) in diameter with a 118-degree standard point angle and a black oxide coating that provides mild corrosion resistance and reduces friction during the cut. Overall length is 6.625 inches, with a 4.8125-inch spiral flute length supporting a maximum drilling depth of 4.8125 inches. The straight-cylindrical shank is compatible with standard drill chucks without requiring a specialized adapter. This is a two-flute, right-hand cutting, regular-spiral bit suited for production and maintenance drilling applications.

The CD40035 is intended for use in steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium workpieces — covering ISO material codes P, M, K, N, and S. It is well suited for machine shop, fabrication, and field service drilling where a reliable fractional-size jobber drill is needed. The 9xD flute-to-diameter ratio provides adequate chip clearance for through-hole drilling in moderate-thickness stock. This bit is sold individually and used by machinists, millwrights, pipefitters, and general maintenance tradespeople.

Key Features

• 35/64 inch (0.5469 inch) diameter with tight tolerance of -0.0012 to +0.0000 inch for consistent hole sizing
• 118-degree standard point angle for general-purpose drilling across a broad range of metals
• Black oxide coating reduces friction and provides mild corrosion resistance
• High speed steel construction withstands elevated cutting temperatures
• Regular spiral, two-flute design promotes efficient chip evacuation
• Straight-cylindrical shank fits standard 3-jaw and keyed drill chucks

Compatibility

Designed for use in standard drill chucks accepting a 35/64 inch straight-cylindrical shank. Suitable for drilling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. Part of the TITAN USA Series CD40 jobber drill line covering the 0.5000 to 0.6500 inch diameter range.

Installation Notes

Install and remove drill bits only with the machine powered off and the spindle fully stopped. Secure the straight shank firmly in a properly sized chuck and verify runout before drilling. Use appropriate cutting fluid or coolant for the workpiece material — note that this bit does not feature coolant-through capability. Operators should follow applicable shop safety standards and wear appropriate eye and hand protection during use.
