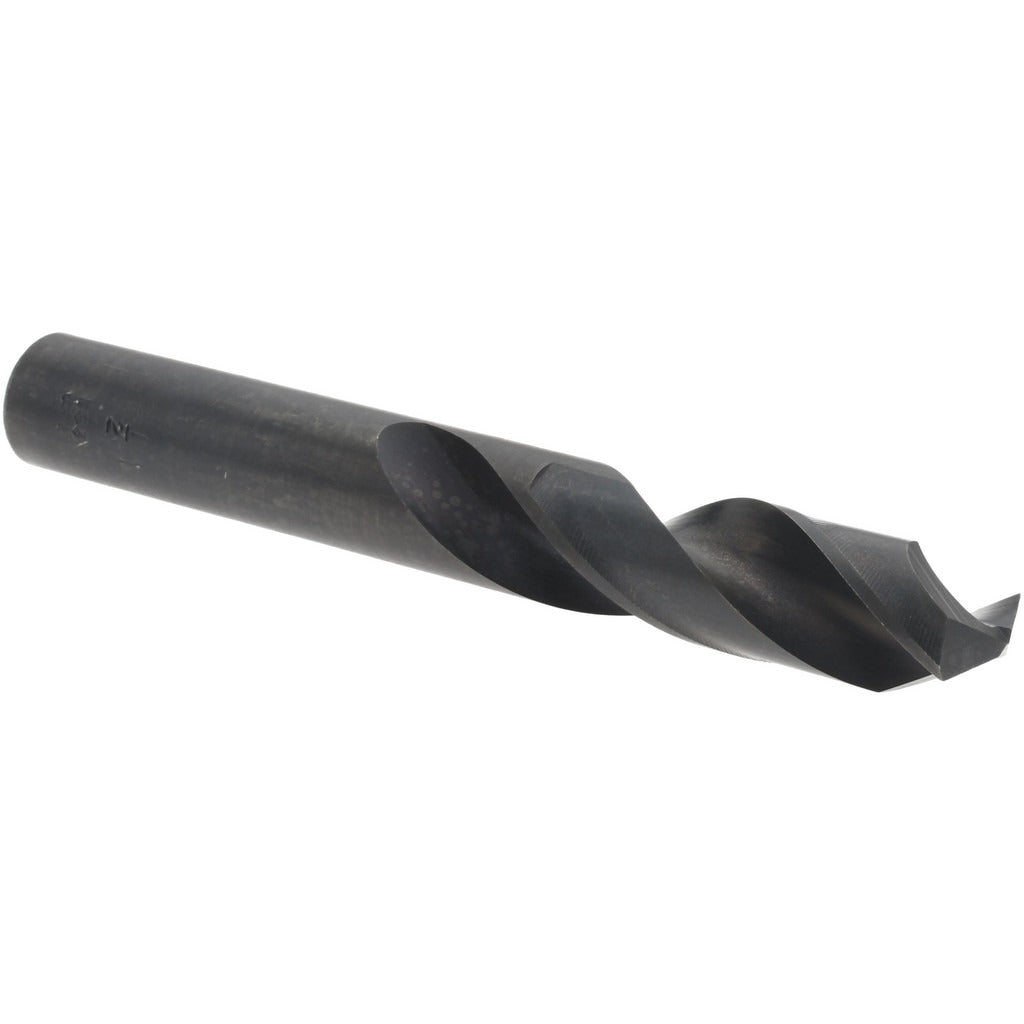

Titan Usa CD30032 1/2 Inch Drill Bit Hss Black Oxide

Product Description

The TITAN USA CD30032 is a screw machine length drill bit designed for high-production drilling in metal, wood, and composite materials. Built from high-speed steel with a black oxide finish, this bit measures 0.500 inches in diameter with a 3-3/4 inch overall length and a 2-1/4 inch flute length. The 135-degree split point reduces walking and thrust at entry, making it well suited for production-rate work where bit life and repeatability matter. The heavy-duty grade construction handles demanding applications where standard-length bits fall short in rigidity.

This screw machine length bit is used in drill presses, CNC machines, manual lathes, and hand-held power drills where a shorter, stiffer tool body reduces deflection. The straight-cylindrical shank seats securely in standard drill chucks. Typical users include machinists, pipefitters, electricians, and HVAC technicians drilling through metal brackets, enclosures, pipe hangers, and structural steel during installation and fabrication work.

Key Features

• 135-degree split point reduces entry walking and lowers required thrust force
• High-speed steel construction resists heat buildup during continuous drilling
• Black oxide coating provides mild corrosion resistance and reduced friction
• Screw machine length body (3-3/4 inches OAL) delivers greater rigidity than jobber-length bits
• 2-flute spiral design clears chips efficiently from the cutting zone
• Straight-cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as an OEM-style replacement or standard replacement drill bit for use in any drill press, CNC, or hand-held power tool accepting a straight-cylindrical shank bit in the 0.5000 to 0.6000 inch drill bit size range.

Installation Notes

This bit is installed by trade professionals including machinists, pipefitters, and electricians using standard drill chucks. Ensure the drill is powered off and the chuck key is removed before changing bits. Use appropriate cutting fluid when drilling hard metals to extend bit life and prevent premature heat failure. Secure the workpiece before drilling to prevent movement and ensure accurate hole placement.
