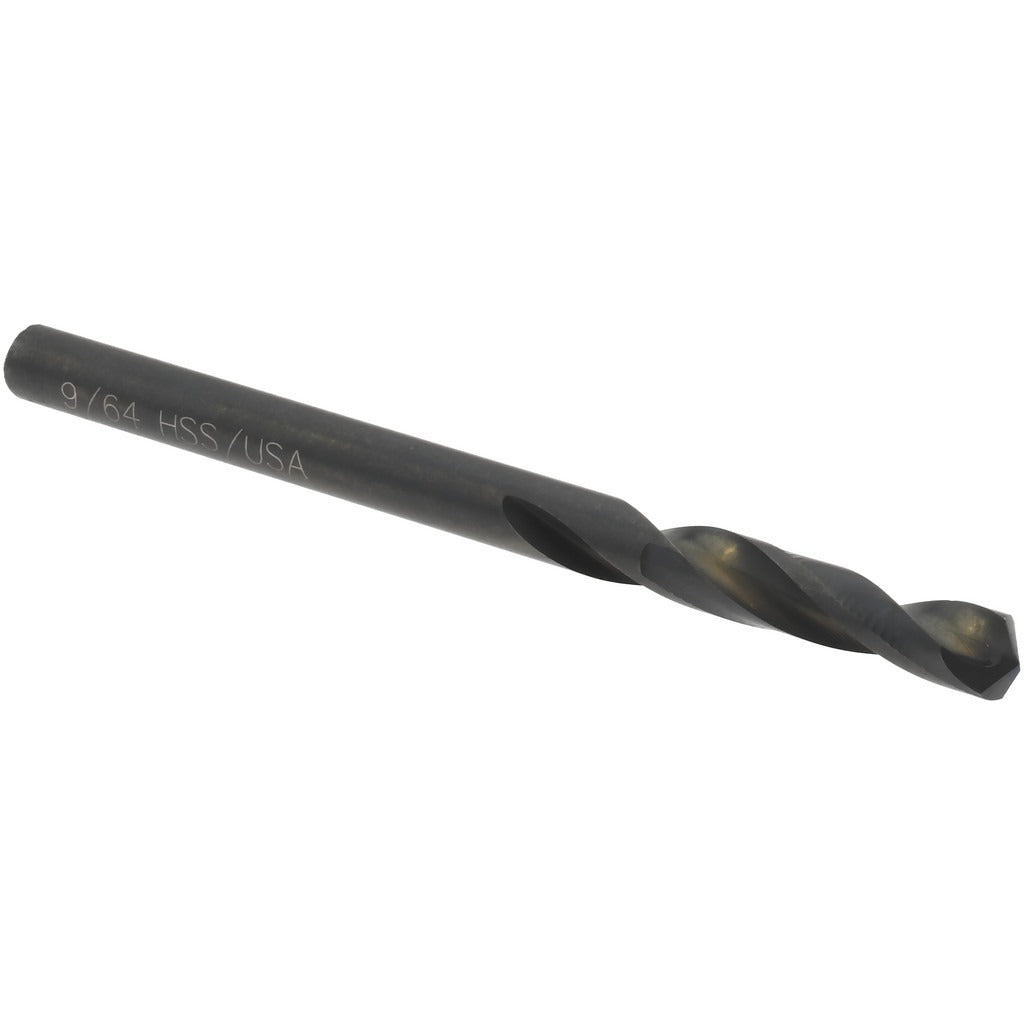

Titan Usa CD30009 9/64 in Screw Machine Drill Bit Hss

Product Description

The TITAN USA CD30009 is a screw machine length drill bit designed for high-cycle drilling in metal, wood, and composite materials. Built from high-speed steel with a black oxide coating, it measures 9/64 inches (0.1406 inches decimal) in diameter with a 135-degree split point that reduces walking and improves centering on contact. The overall length is 1-15/16 inches, placing it in the stub or screw machine length category for use in tight spaces and short-travel drill presses. It is a heavy-duty grade tool intended for machinists, maintenance technicians, and trade professionals who need consistent performance from a compact bit profile.

Screw machine length drill bits are used where standard-length bits are too long or too flexible, including drill press work, CNC setups, turret lathes, and benchtop machining. The CD30009 fits production environments and field repair situations where a 9/64-inch hole is required in metal or similar materials. The straight-cylindrical shank seats in standard drill chucks without adapters. The Series 300 designation places this bit within TITAN USA's heavy-duty stub-length line.

Key Features

• 135-degree split point reduces thrust and prevents bit walking on entry
• Black oxide coating provides mild corrosion resistance and reduces friction during cutting
• High-speed steel construction handles intermittent heat buildup in production drilling
• Screw machine (stub) length of 1-15/16 inches overall suits confined spaces and short-travel spindles
• Spiral flute with 15/16-inch flute length clears chips efficiently in short-depth holes
• Straight-cylindrical shank fits standard 3-jaw drill chucks directly

Compatibility

Designed as an OEM-style replacement or stock drill bit for use in standard drill chucks accepting a straight-cylindrical shank in the 9/64-inch size range.

Installation Notes

Installation is performed by machinists or qualified trade technicians using a standard drill press, hand drill, or lathe turret. Secure the shank fully in the chuck and verify runout before drilling. Use appropriate cutting fluid for ferrous metals to extend bit life. Follow applicable workplace safety codes when operating rotating cutting tools.
