Titan Usa CD30008 Drill Bit 1/8 Inch Hss Black Oxide

Product Description

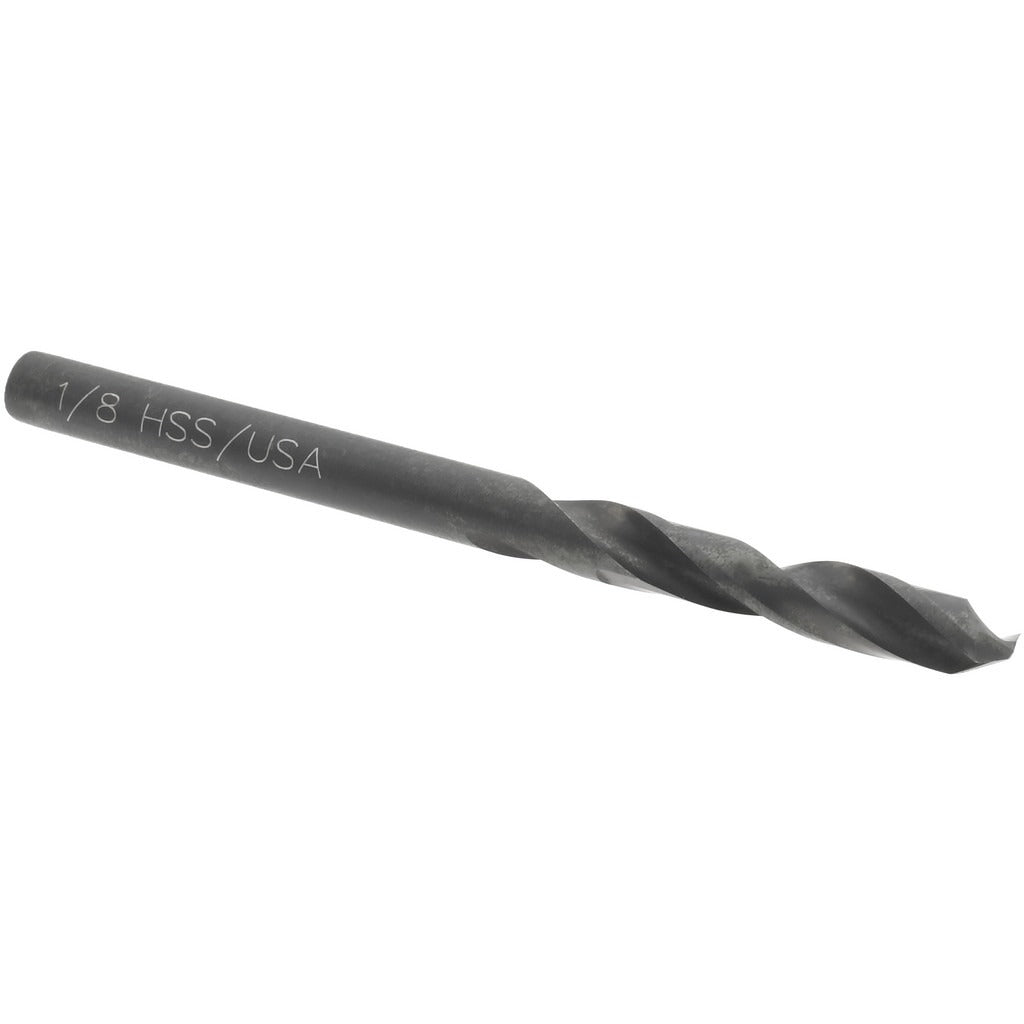

The TITAN USA CD30008 is a screw machine length drill bit designed for high-speed, high-cycle drilling in metal fabrication, maintenance, and mechanical assembly applications. Built from high-speed steel with a black oxide coating, this bit measures 0.125 inches in diameter with a 1-7/8 inch overall length. The 135-degree split point reduces walking and thrust, allowing faster penetration without a center punch on most ferrous materials. The straight-cylindrical shank seats securely in standard chucks. This is a heavy-duty grade bit suitable for use with drill presses, hand drills, and CNC equipment in production and field service environments.

Screw machine length drill bits are shorter than jobber-length bits, which improves rigidity and reduces deflection in close-tolerance work. The CD30008 is well suited for sheet metal work, mechanical repair, electrical rough-in, and plumbing-related metalwork where drilling into steel brackets, strut, or enclosures is routine. The 7/8 inch spiral flute length handles chip evacuation efficiently in shallow-to-moderate depth holes. This bit fits applications within the 0.1000 to 0.1500 inch decimal diameter range per Series 300 classification.

Key Features

• 1/8 inch (0.1250 inch) diameter, screw machine length for improved rigidity over jobber bits
• 135-degree split point reduces walking and requires less thrust than a conventional 118-degree point
• High-speed steel construction handles drilling in mild steel, aluminum, copper, and similar materials
• Black oxide coating provides mild corrosion resistance and reduces friction during cutting
• 2-spiral-flute design promotes chip clearance and smooth cutting action
• Straight-cylindrical shank compatible with standard keyless and keyed drill chucks

Compatibility

Designed as a replacement or production-stock drill bit for use with standard 3-jaw drill chucks accepting straight-cylindrical shanks in the 1/8 inch size. Fits within TITAN USA Series 300, covering the 0.1000 to 0.1500 inch decimal inch drill bit size range.

Installation Notes

Secure the straight-cylindrical shank fully into the drill chuck and tighten all jaws evenly before use. Disconnect or de-energize drilling equipment before changing bits. Use appropriate cutting fluid when drilling ferrous metals to extend bit life and improve hole quality. Wear eye protection and follow applicable shop safety standards during all drilling operations.
