Product Description

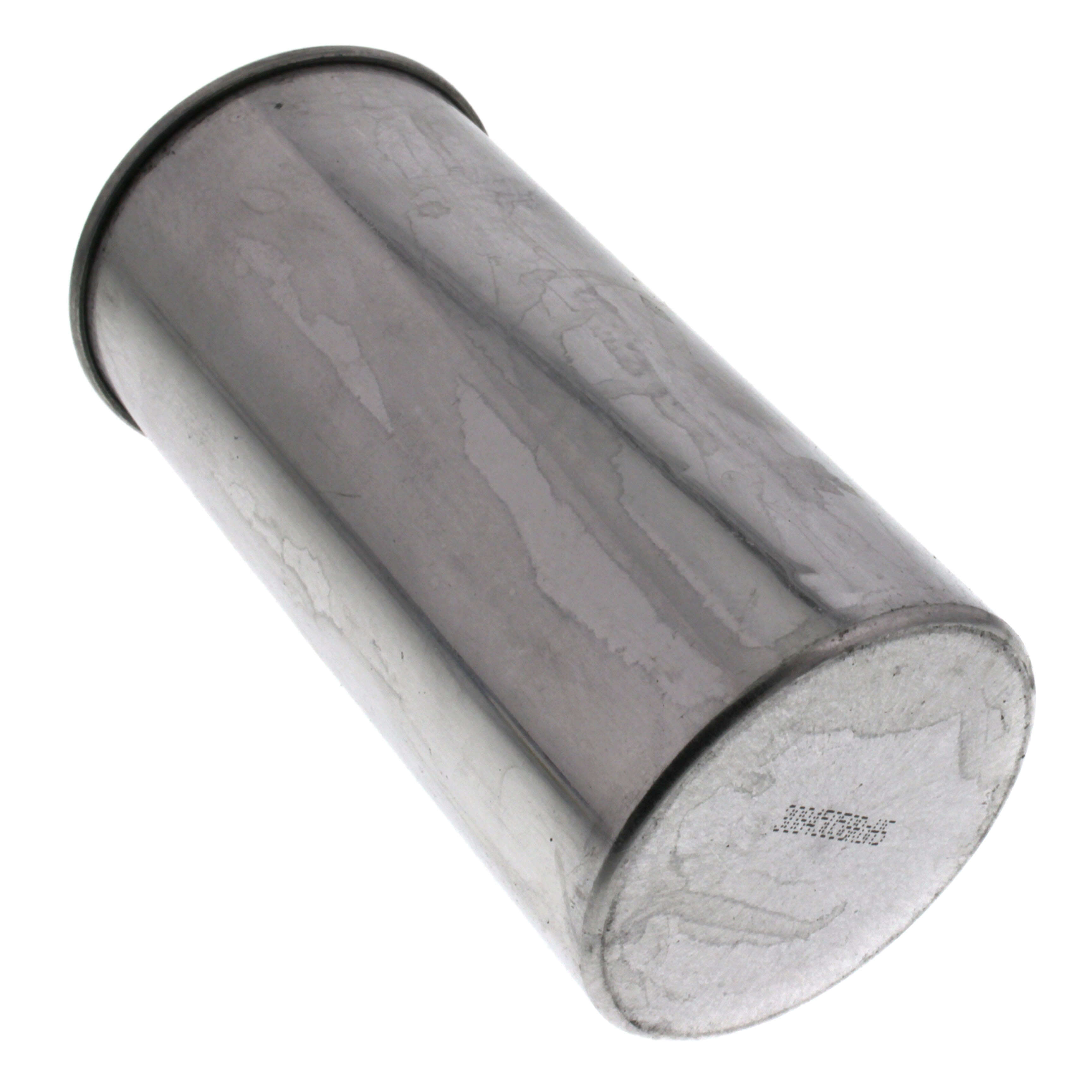

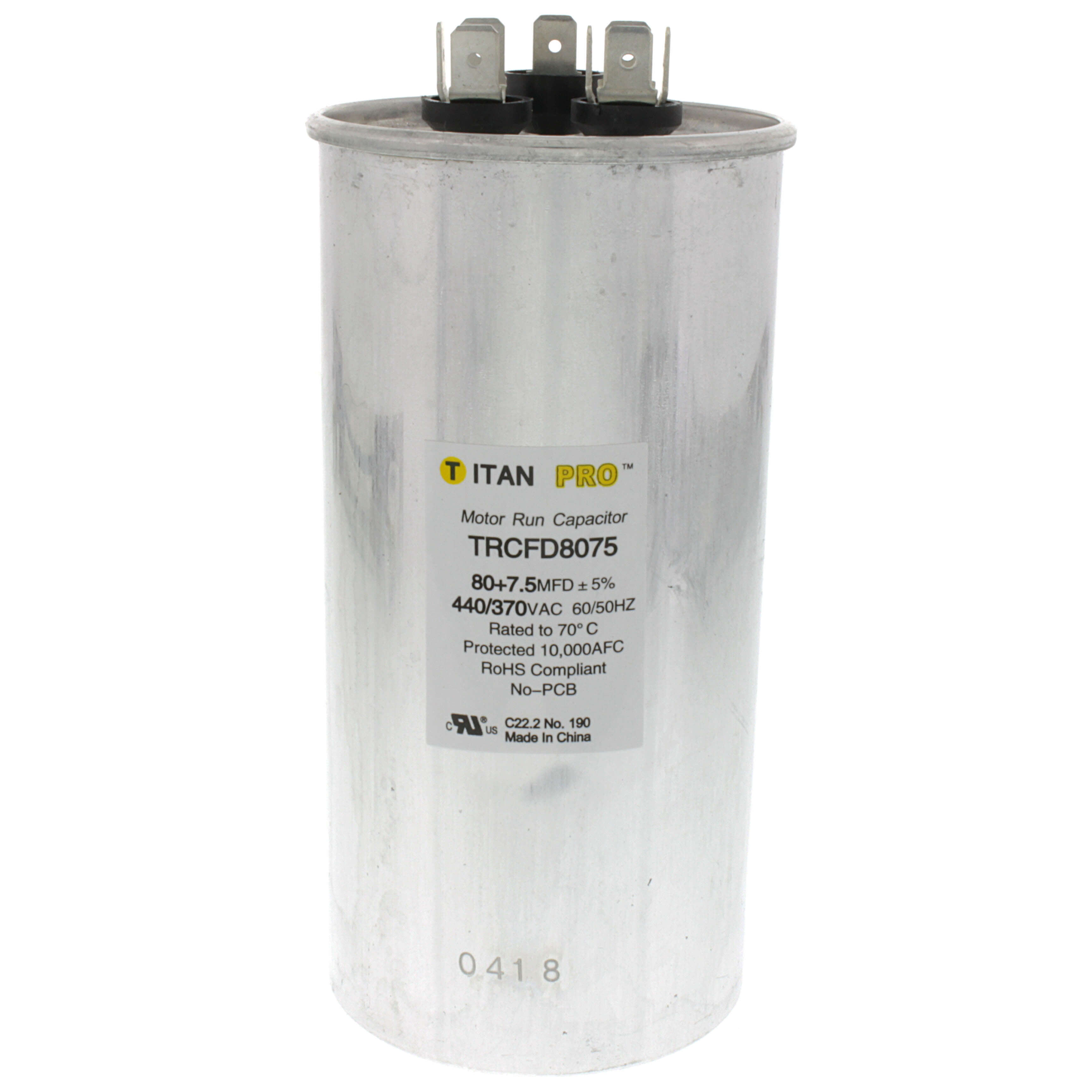

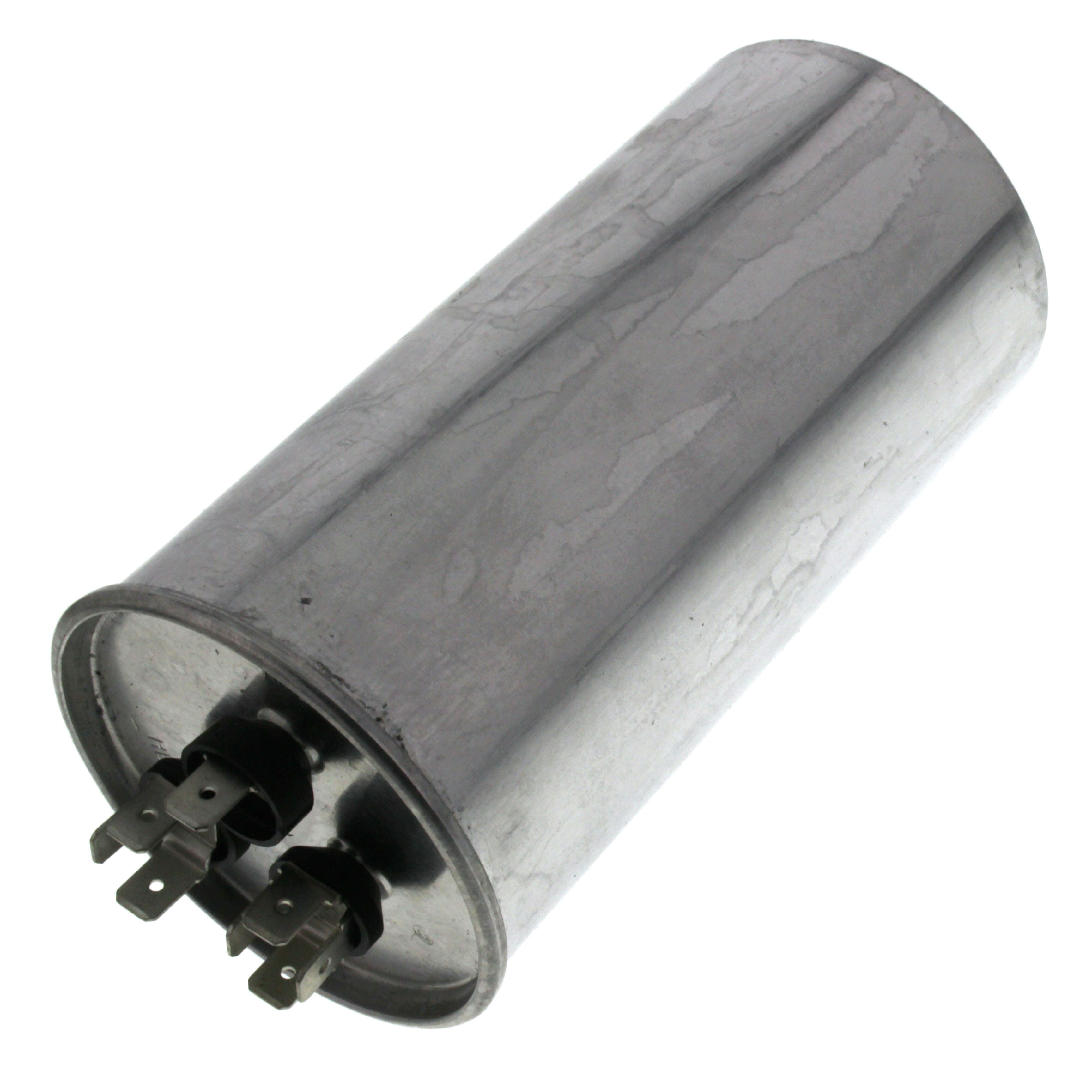

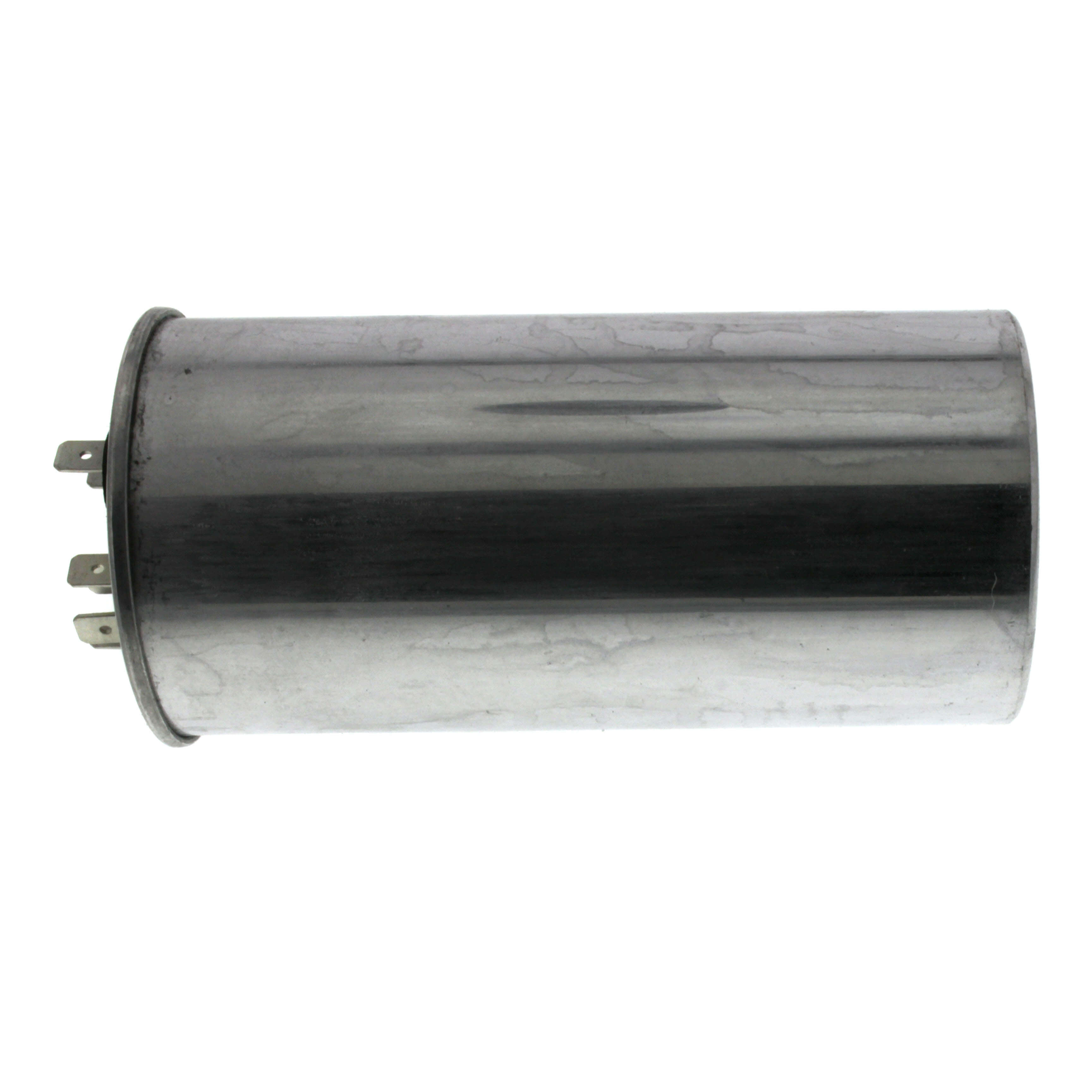

The TITAN PRO TRCFD8075 is a motor dual run capacitor with a microfarad rating of 80/7.5 and a voltage of 370-440V. It features a round shape and is constructed with an aluminum case and steel cover. This capacitor is suitable for use with electric motors and is built to meet international standards for AC motor run capacitors.
- Microfarad rating of 80/7.5
- Voltage rating of 370-440V
- Operating temperature range of -40 Degrees to 70 Degrees C
Product Highlights
This motor dual run capacitor offers 60,000 hours of operational life and is UL Recognized.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TRCFD8075
-
Country of Origin: China
Technical Specifications
-
Microfarad Rating: 80/7.5
-
Voltage: 370-440V
-
Frequency: 60/50 Hz
-
Shape: Round
-
Diameter: 2-1/2 In.
-
Case Height: 4-3/4 In.
-
Overall Height: 5-1/4 In.
-
Overall Width: 2-1/2 In.
-
Overall Depth: 2-1/2 In.
-
EIA UL Base: T
-
Terminal Type: 1/4 In. Male Quick-Connect
-
Temperature Range: -40 Degrees to 70 Degrees C
-
Case Material: Aluminum
-
Cover Material: Steel
-
Standards: UL Recognized (E185318)
-
Product Type: Capacitor
-
Item: Motor Dual Run Capacitor
-
For Use With: Electric Motors
-
Capacitor Shape: Round
-
Connection Type: Quick Connect
-
Terminal Gender: Male
-
Max. Temperature: 70 Degrees C
-
Min. Temperature: -40 Degrees C
-
Number of Pieces: 1.0
-
Capacitor Voltage: 440/370V AC
-
EIA Tolerance Code: A
-
Terminal Tab Width: 1/4 in
-
Number of Terminals: 3.0
-
Motor Capacitor Type: Motor Dual Run Capacitor
-
Terminal Designations: Standard
-
Capacitor Voltage Group: 440V AC
-
Capacitor Voltage (Merch): 440V AC
-
Hertz: 50_60
-
Capacitance: Dual
-
Material Weight: 0.85 lbs.
-
Volts: 440/370
