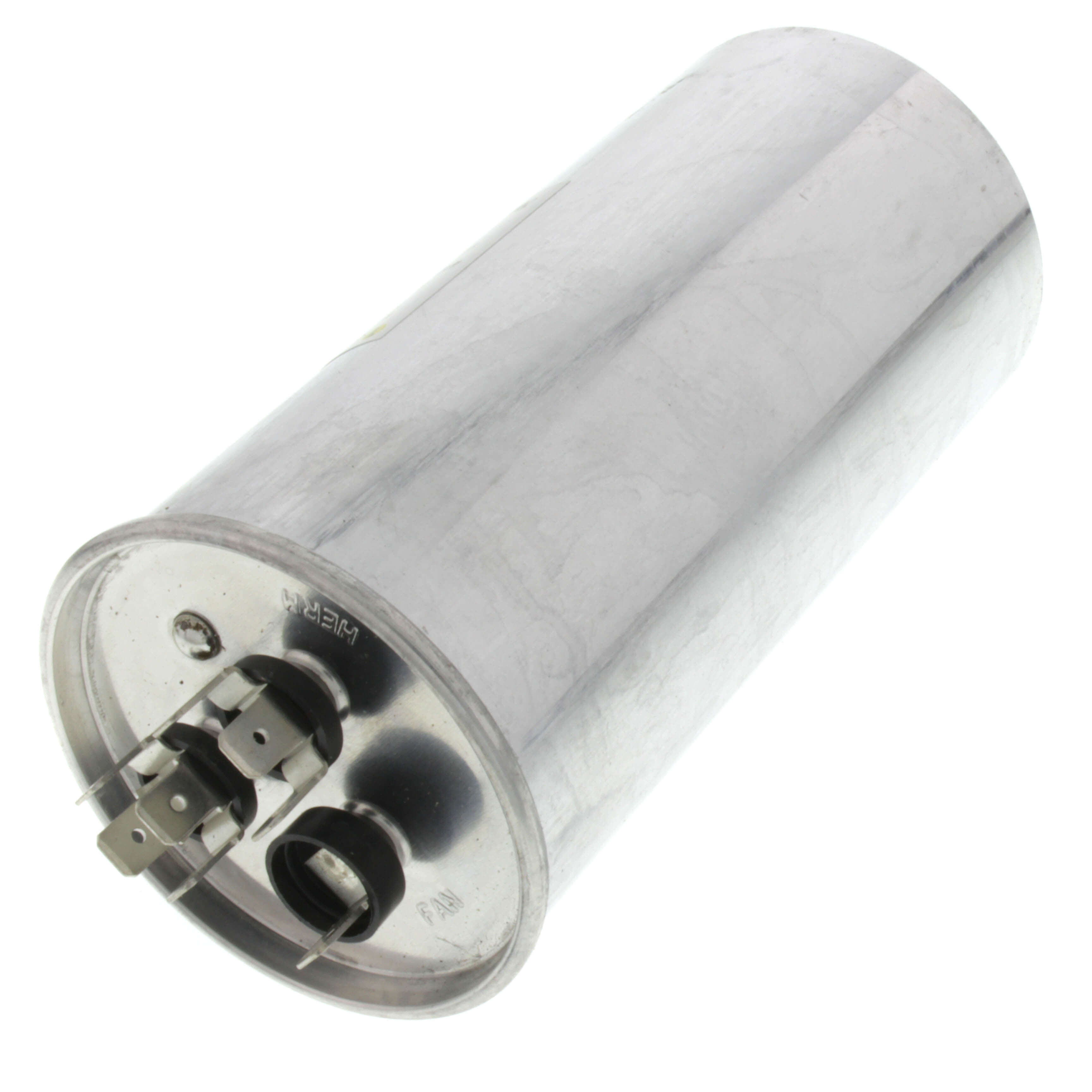

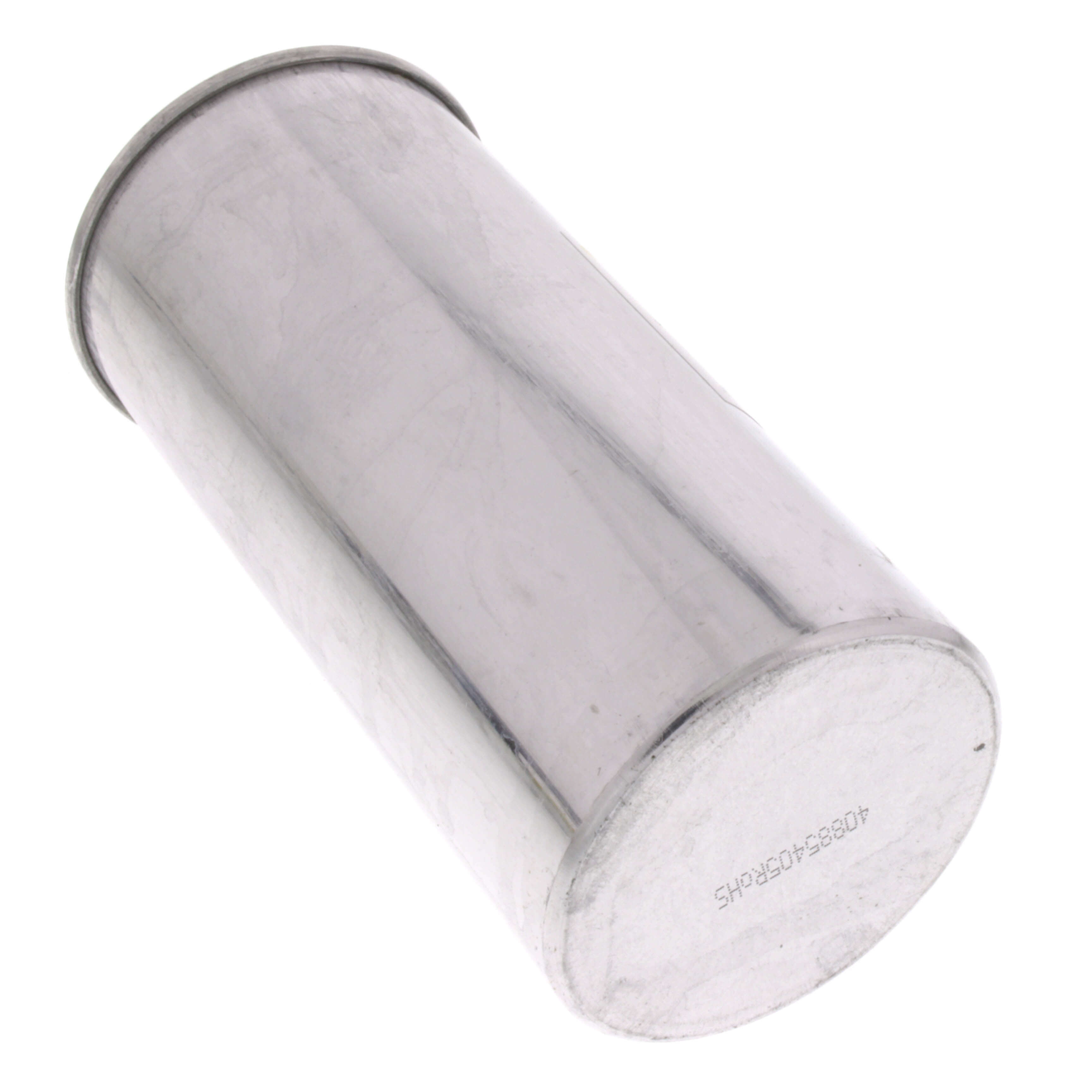

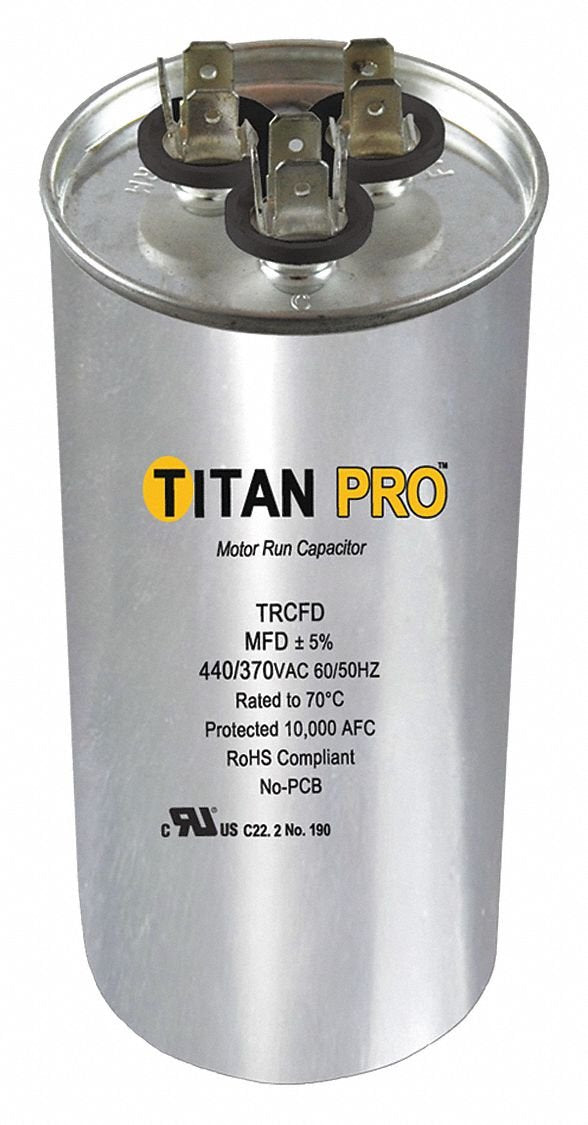

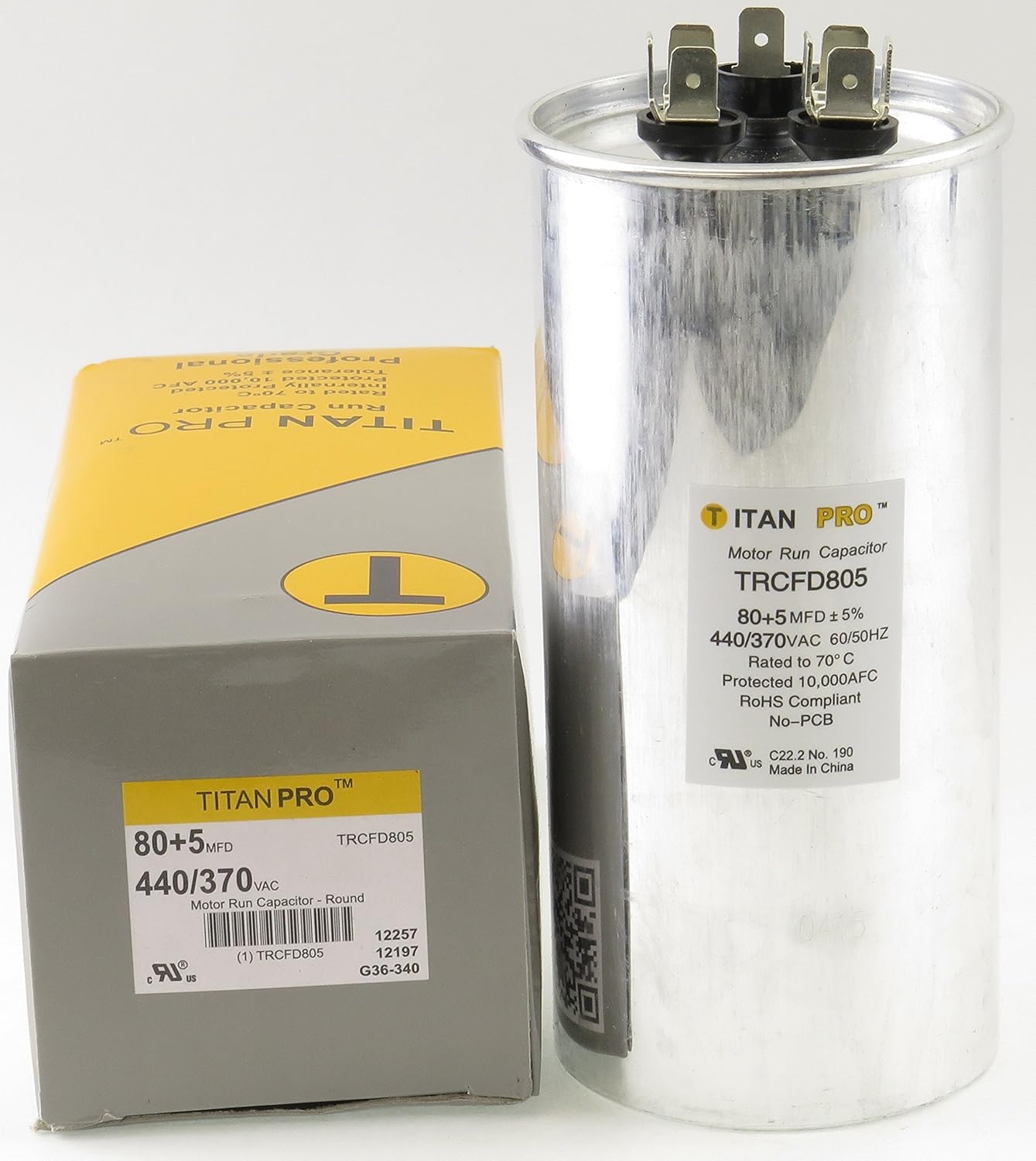

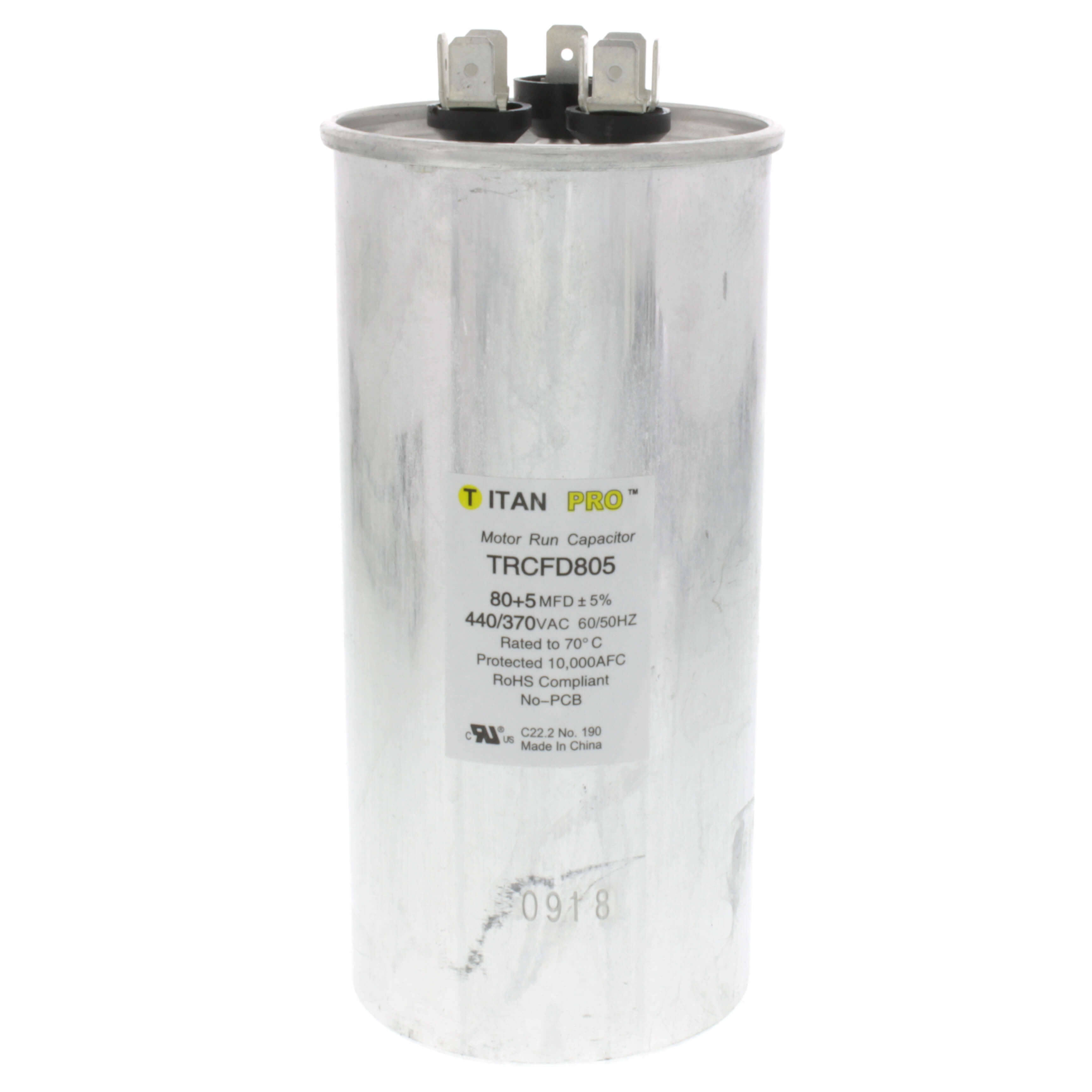

Titan Pro TRCFD805 Motor Dual Run Cap 80/5 MFD 370-440V

Product Description

The TITAN PRO TRCFD805 is a motor dual run capacitor with a capacitance of 80/5 MFD and an operating voltage of 370-440V. It features a round shape and is constructed from aluminum. This capacitor is suitable for use with electric motors and operates at 60/50 Hz. It is designed to meet UL Recognized (E185318) standards.

• Capacitance of 80/5 MFD
• Operating voltage of 370-440V
• Round shape and aluminum case

Product Highlights

This motor dual run capacitor is designed for reliable performance in a variety of motor applications.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD805
• Country of Origin: China

Technical Specifications

• Shape: Round
• Material: Aluminum
• Capacitance: 80/5 Microfarad
• Operating Voltage: 440 Volts
• Maximum Voltage: 440 Volts
• Microfarad Rating: 80/5
• Voltage: 440/370V
• Hz: 60/50
• Diameter: 2-1/2"
• Case Height: 5-1/8"
• Overall Height: 5-5/8"
• Overall Width: 2-1/2"
• Overall Depth: 2-1/2"
• EIA UL Base: T
• Terminal Type: 1/4" Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• Capacitor Voltage: 370-440VAC
• Motor Capacitor Type: Motor Dual Run Capacitor
• MFD: 80/5
• Product Type: Capacitor
• Frequency: 60/50 Hz
• For Use With: Electric Motors
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Terminal Tab Width: 1/4 in
• Number of Terminals: 3.0
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
• Item Height: 5.31 in
• Item Diameter: 2.5 in
