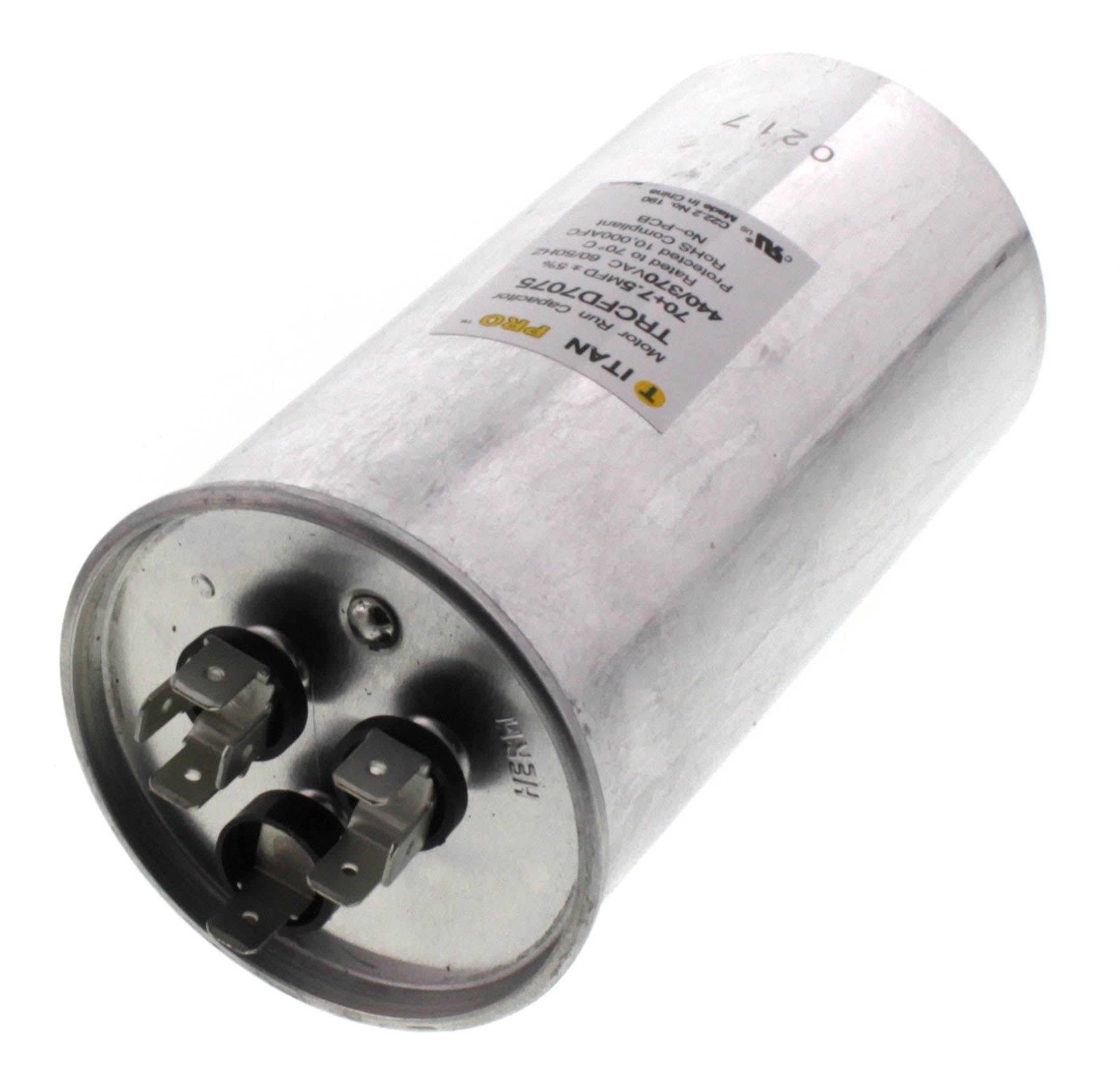

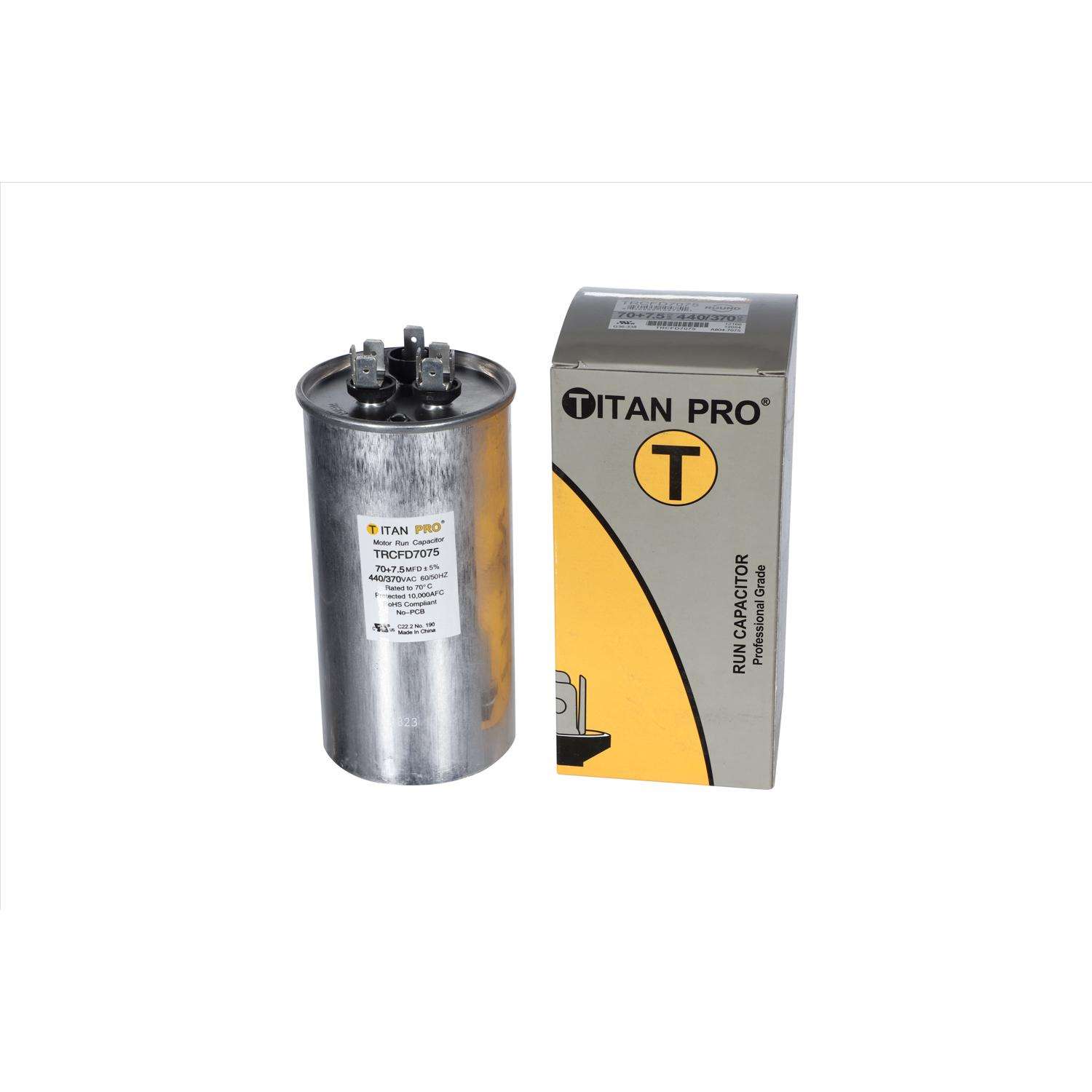

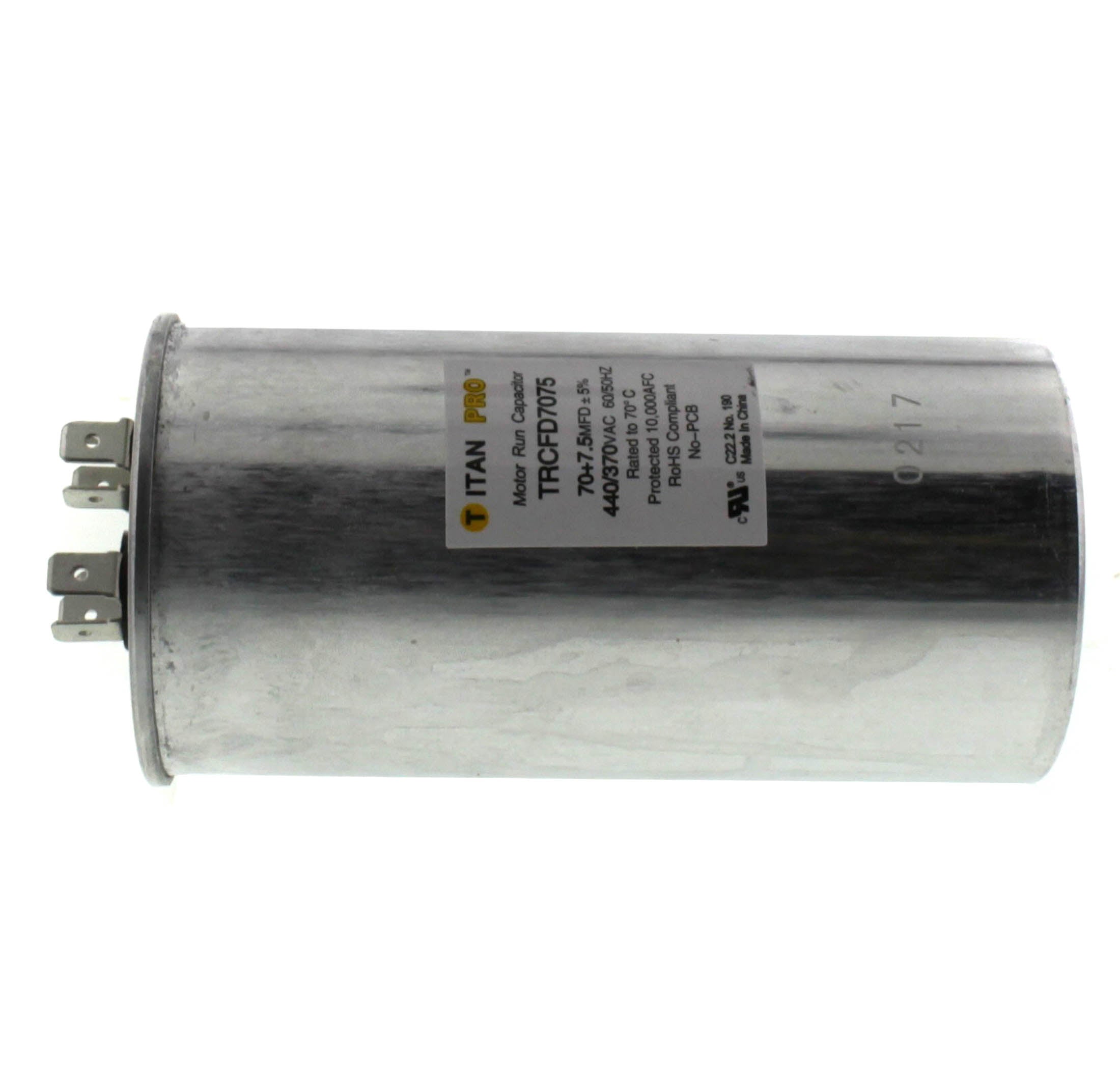

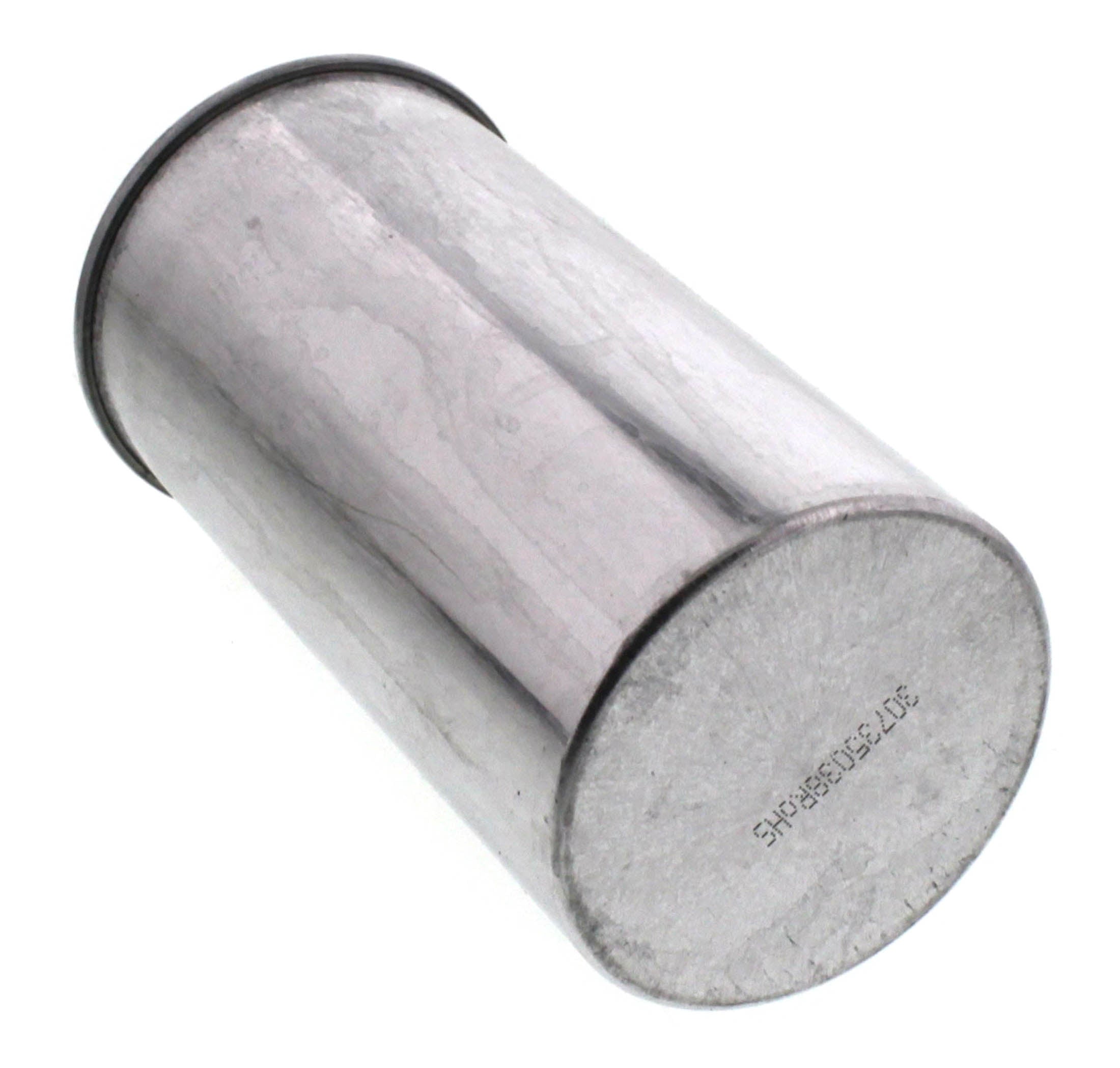

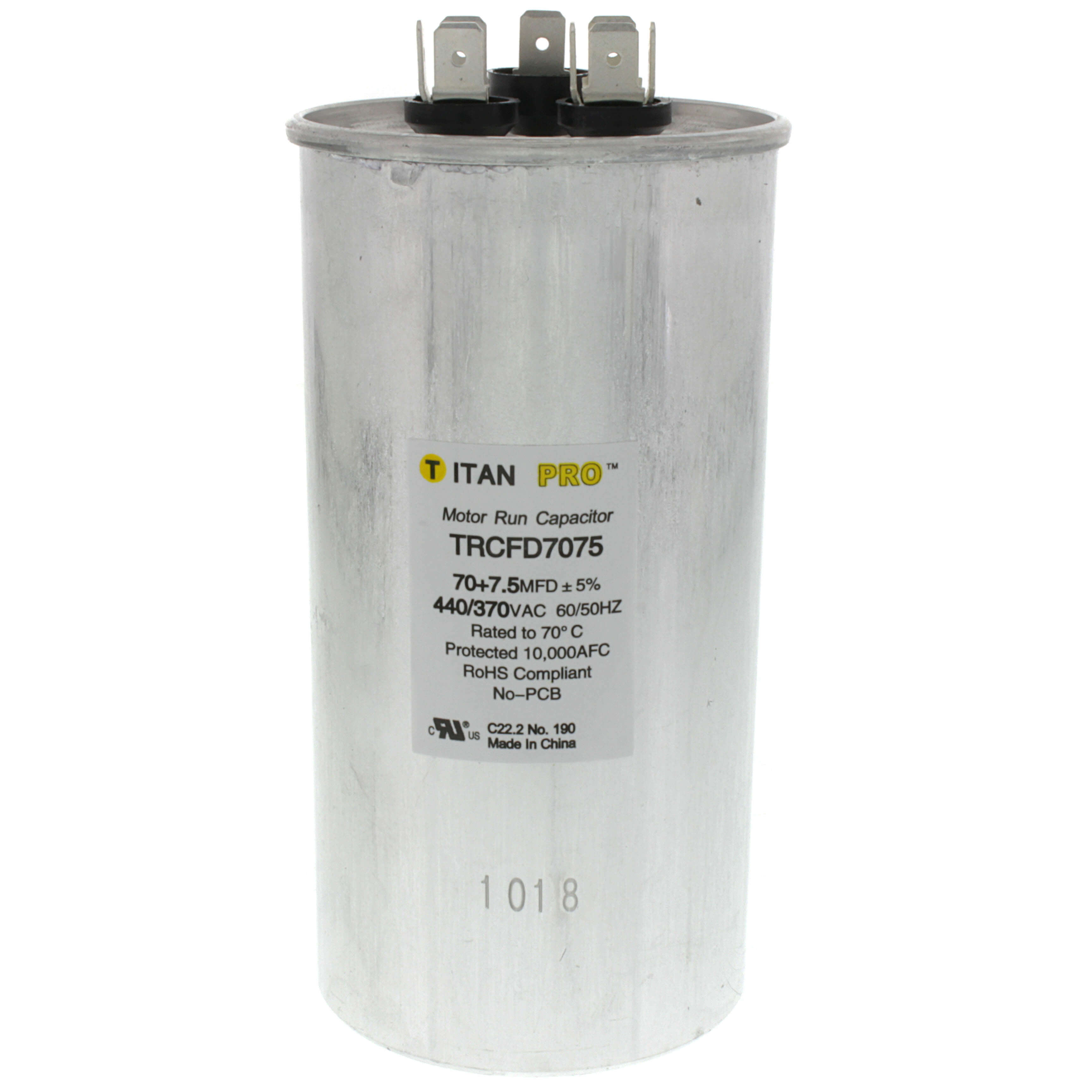

Titan Pro TRCFD7075 Motor Dual Run Cap 70/7.5 MFD 370-440V

Product Description

The TITAN PRO TRCFD7075 is a motor dual run capacitor with a 70/7.5 MFD rating and a voltage of 370-440V. This capacitor is designed for use in equipment such as air conditioners and refrigeration units. It provides constant voltage and current adjustments to the motor, ensuring smooth operation. It has an operational life of up to 60,000 hours.

• Features a 70/7.5 microfarad rating
• Operates at 370-440VAC
• Compliant with EIA-456-A and IEC 60252-1:2001 standards

Product Highlights

This TITAN PRO capacitor offers reliable performance and is built to meet industry standards, ensuring long-lasting operation for your motor.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD7075
• Country of Origin: China

Technical Specifications

• Shape: Round
• Hz: 60/50
• Capacitor Voltage: 370-440VAC
• Case Material: Aluminum
• Cover Material: Steel
• Terminal Type: 1/4" Male Quick-Connect
• Capacitor Shape: Round
• Temp. Range: -40 Degrees to 70 Degrees C
• Motor Capacitor Type: Motor Dual Run Capacitor
• Microfarad Rating: 70/7.5
• Case Height: 4.3125"
• Diameter: 2.5"
• Overall Width: 2.5"
• Overall Height: 4.8125"
• EIA UL Base: T
• Overall Depth: 2.5"
• Standards: UL Recognized (E185318)
• Voltage: 370-440V
• Product Type: Dual Run Capacitor
• Hertz: 50; 60
• Mfd: 70/7.5
