Product Description

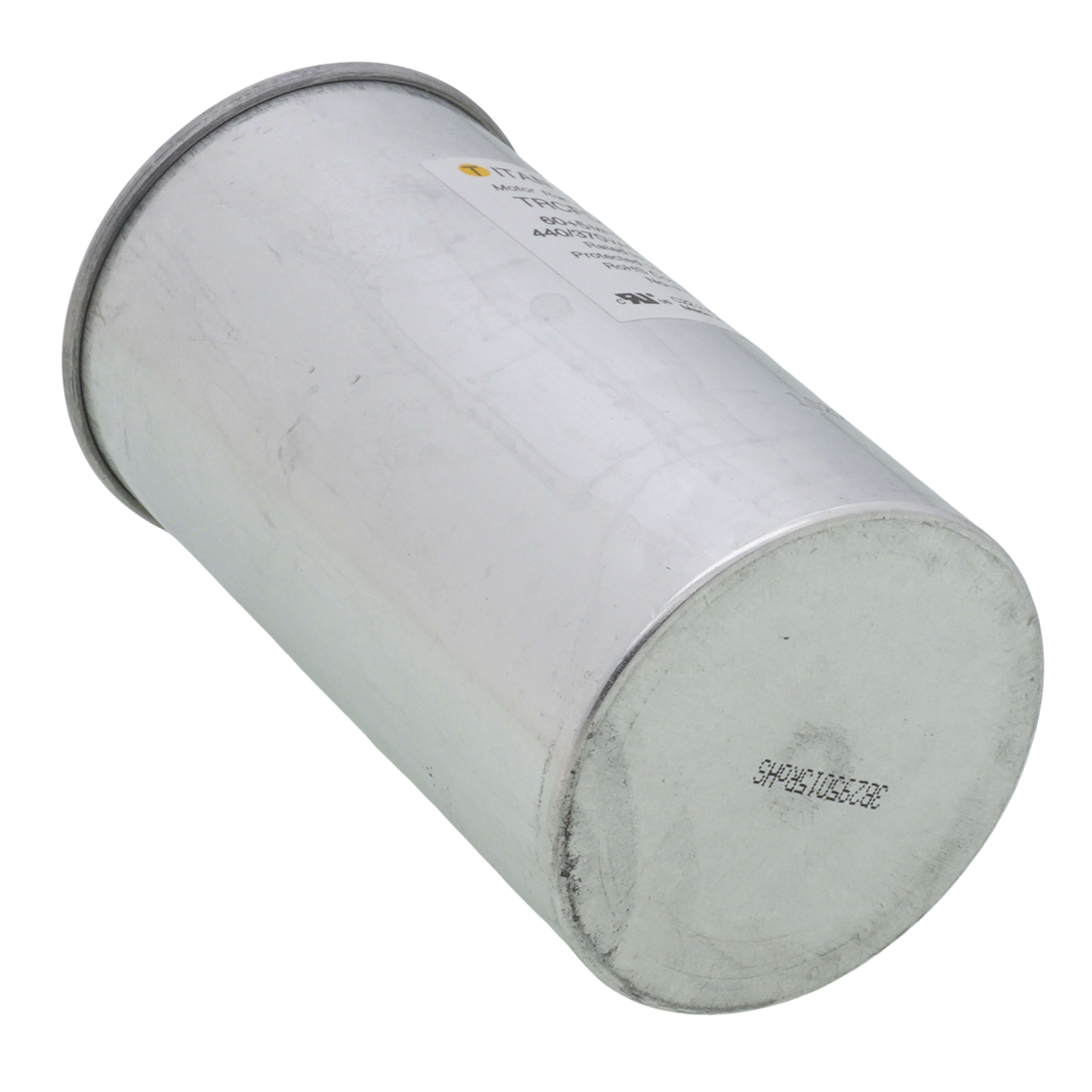

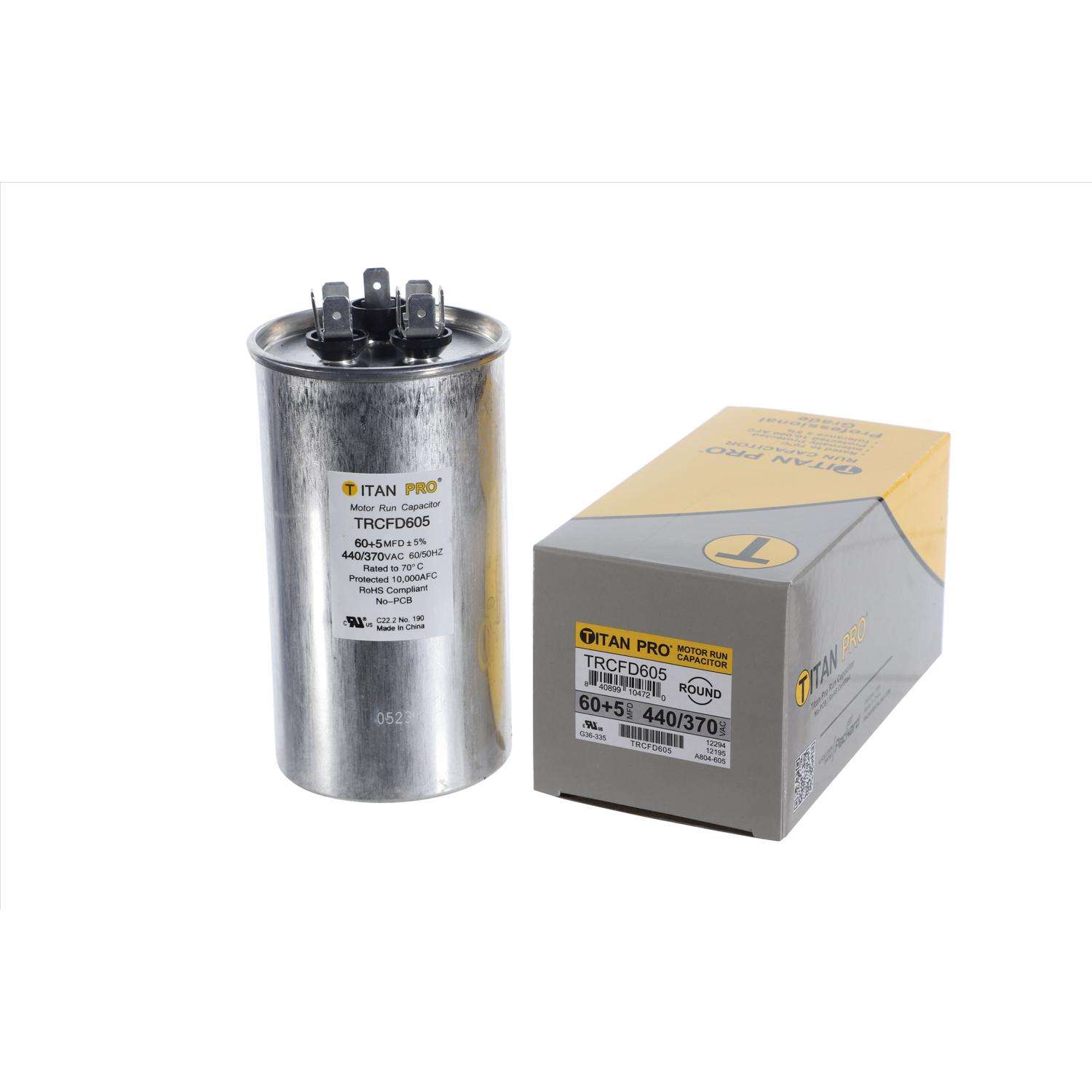

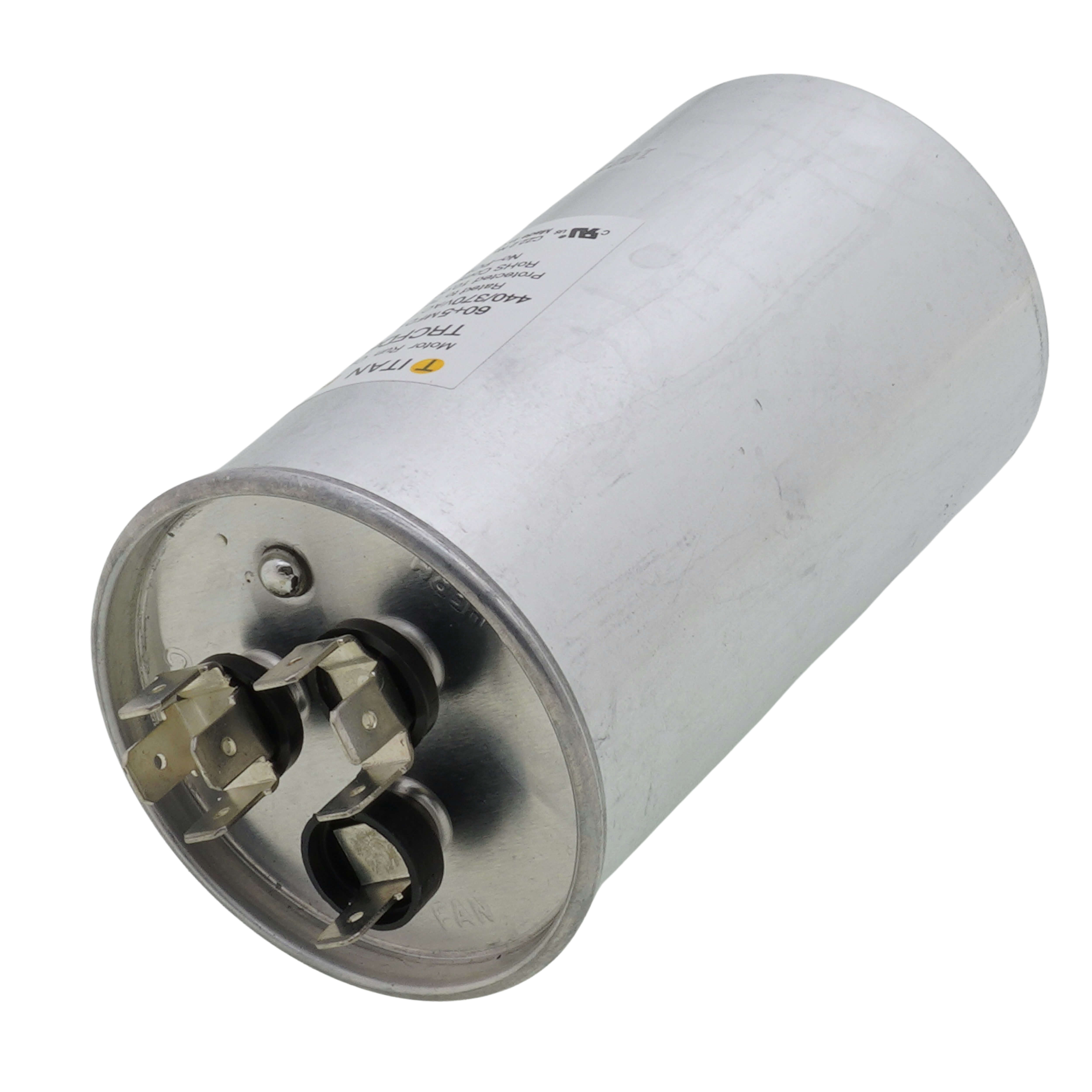

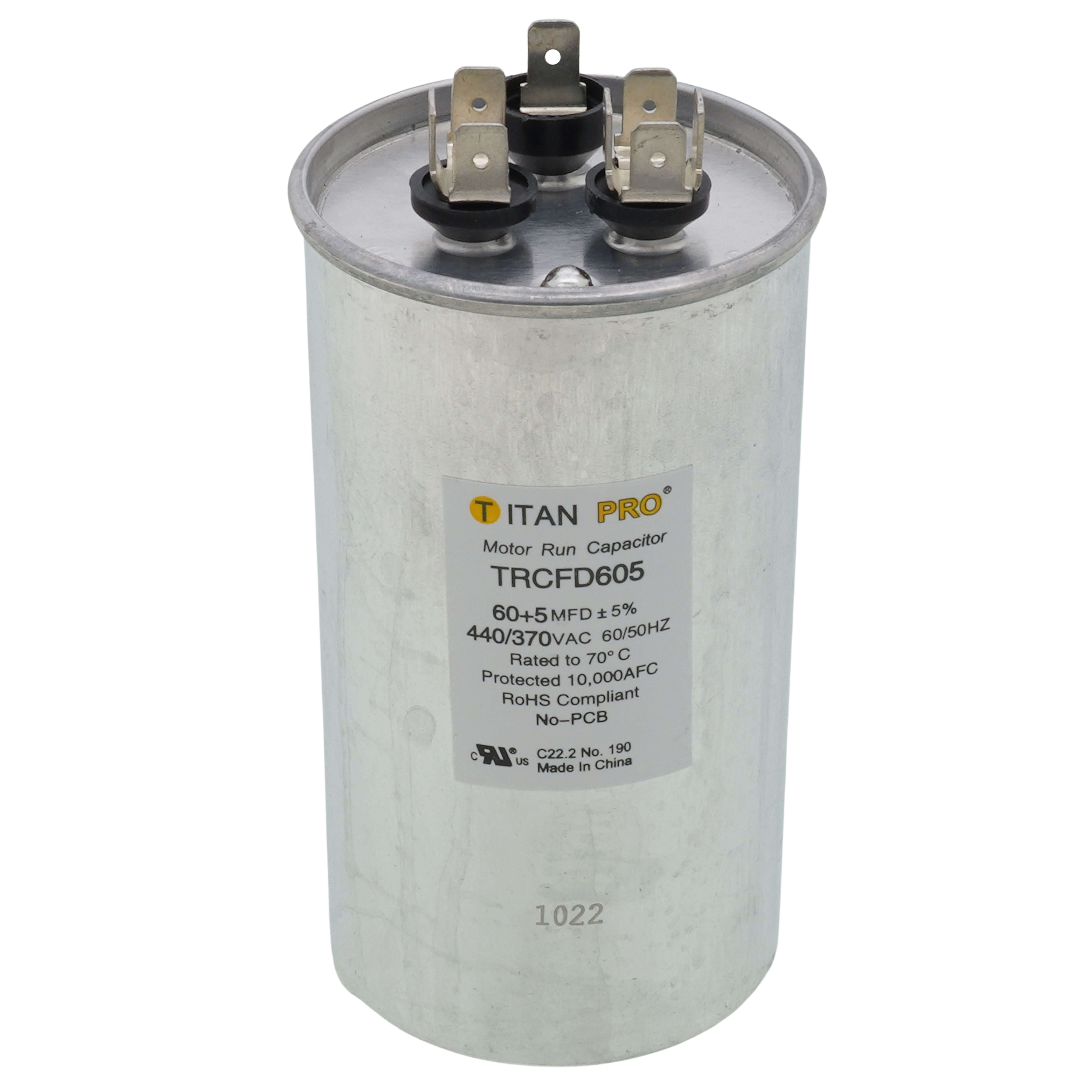

The TITAN PRO TRCFD605 is a motor dual run capacitor with a round shape, containing two capacitance values in a single unit. It has a capacitance of 60/5 MFD and is rated for 440/370 volts. This capacitor can replace two single run capacitors and connect to two motors, useful in HVAC applications.
- Round shape
- Contains two capacitance values in a single unit
- Can replace two single run capacitors
Product Highlights
This motor dual run capacitor is designed for use in HVAC applications and can connect to two motors.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TRCFD605
-
Country of Origin: China
Technical Specifications
-
Shape: Round
-
Material: Polypropylene, Aluminum
-
Capacitance: 60/5 MFD
-
Operating Voltage: 440 Volts
-
Certification: Ul
-
Maximum Voltage: 440 Volts
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Capacitor
-
Standards: UL Recognized (E185318)
-
Temp. Range: -40 Degrees to 70 Degrees
-
MPN: TRCFD605
-
Manufacturer: TITAN PRO
-
Brand: Titan Pro
-
Product Type: Dual Run Capacitor
-
Hertz: 50/60
-
Oil Type: Soybean Based
-
Operating Temperature Range: -40 to 70
-

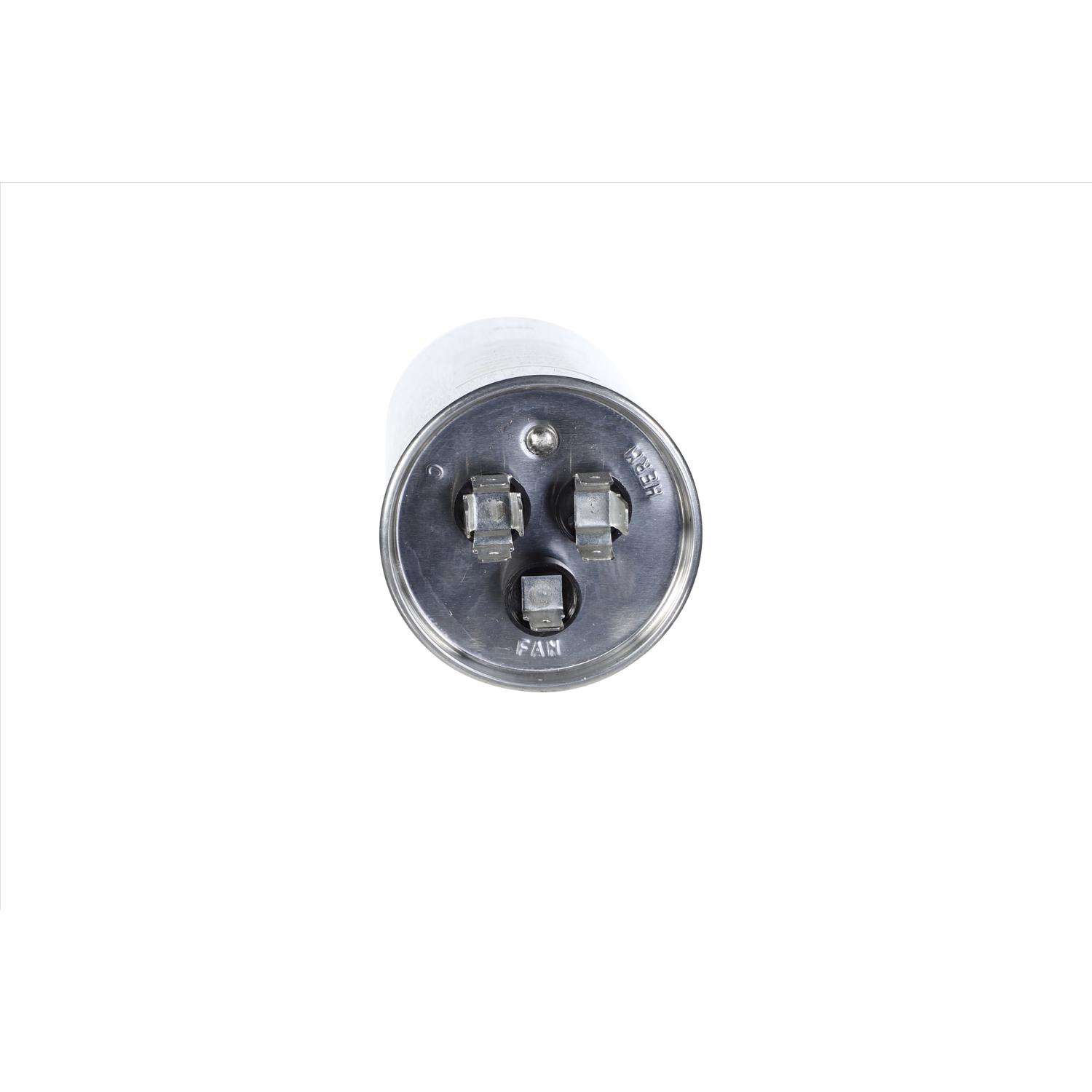

Terminals: Standard blade terminals
-
Tolerance: +/- 5%
-
Frequency: 60/50 Hz
-
Standards Met: EIA-456A, IEC 60252-1:2001, and UL 810
-
Voltage: 440/370V AC
-
Item: Motor Dual Run Capacitor
-
For Use With: Electric Motors
-
Case Material: Aluminum
-
Terminal Type: 1/4 in Male Quick-Connect
-
Cover Material: Steel
-
Capacitor Shape: Round
-
Connection Type: Quick Connect
-
Terminal Gender: Male
-
Max. Temperature: 70 Degrees C
-
Min. Temperature: -40 Degrees C
-
Number of Pieces: 1.0
-
Capacitor Voltage: 440/370V AC
-
Microfarad Rating: 60/5
-
EIA Tolerance Code: A
-
Terminal Tab Width: 1/4 in
-
Number of Terminals: 3.0
-
Motor Capacitor Type: Motor Dual Run Capacitor
-
Terminal Designations: Standard
-
Capacitor Voltage Group: 440V AC
-
Capacitor Voltage (Merch): 440V AC
-
Housing Shape: Round
-
Operating Temperature - Minimum: -40 °C
-
Operating Temperature - Maximum: 70 °C
-
Housing Material: Aluminum
-
Sub-brand: Titan Pro
-
Series: TRCF Series
-
Voltage Rating: 370/440 V
-
Model: TRCFD605
