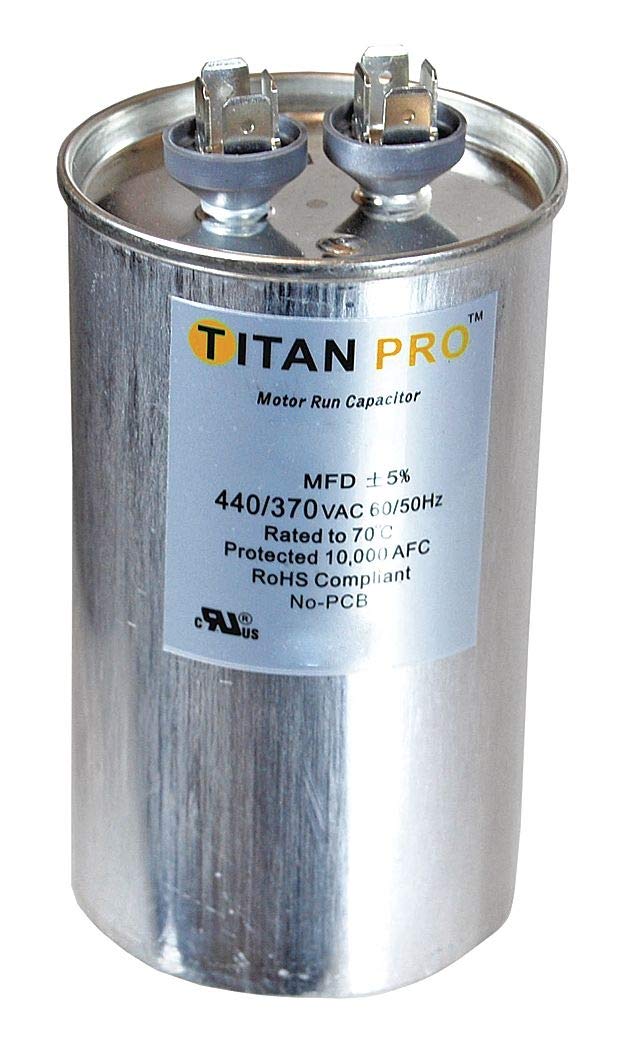

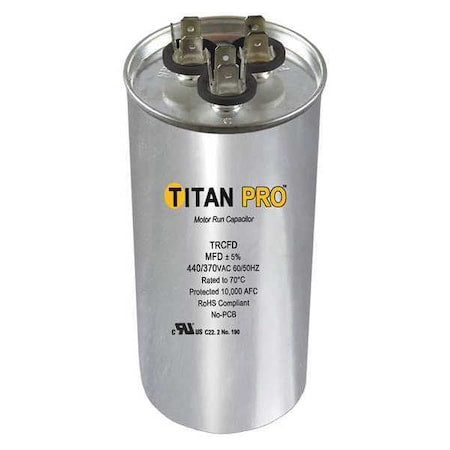

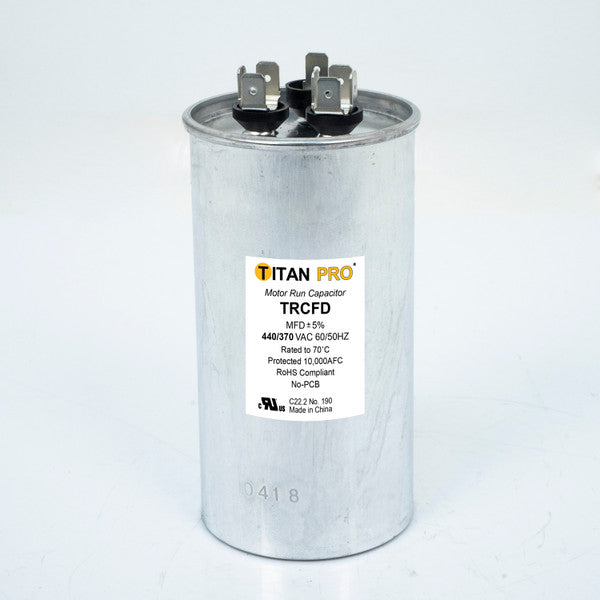

Titan Pro TRCFD6010 Round Motor Dual Run Capacitor 60/10 Microfarad Rating 370-440VAC Voltage

Product Description

The TITAN PRO TRCFD6010 is a round motor dual run capacitor with a 60/10 microfarad rating and a voltage of 370-440VAC. It features a round shape, aluminum case material, and steel cover material. This capacitor is suitable for use with electric motors and has 1/4" male quick-connect terminals.

• Microfarad Rating: 60/10
• Voltage: 370-440VAC
• Operating Temperature Range: -40 Degrees to 70 Degrees C

Product Highlights

This motor dual run capacitor is designed for long life operation and meets UL 810 safety standards. It is heat tolerant and protected to 10,000 AFC.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD6010
• Country of Origin: China

Technical Specifications

• Brand: TITAN PRO
• MPN: TRCFD6010
• Manufacturer: Titan Pro
• Hz: 60/50
• Capacitor Voltage: 370-440VAC
• Case Material: Aluminum
• Cover Material: Steel
• Terminal Type: 1/4" Male Quick-Connect
• Capacitor Shape: Round
• Temp. Range: -40 Degrees to 70 Degrees C
• Motor Capacitor Type: Motor Dual Run Capacitor
• Microfarad Rating: 60/10
• EIA UL Base: A
• Standards: UL Recognized (E185318)
• Voltage: 440/370V AC
• Frequency: 60/50 Hz
• For Use With: Electric Motors
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1
• EIA Tolerance Code: A
• Terminal Tab Width: 1/4 in
• Number of Terminals: 3
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
• Model: TRCFD6010
