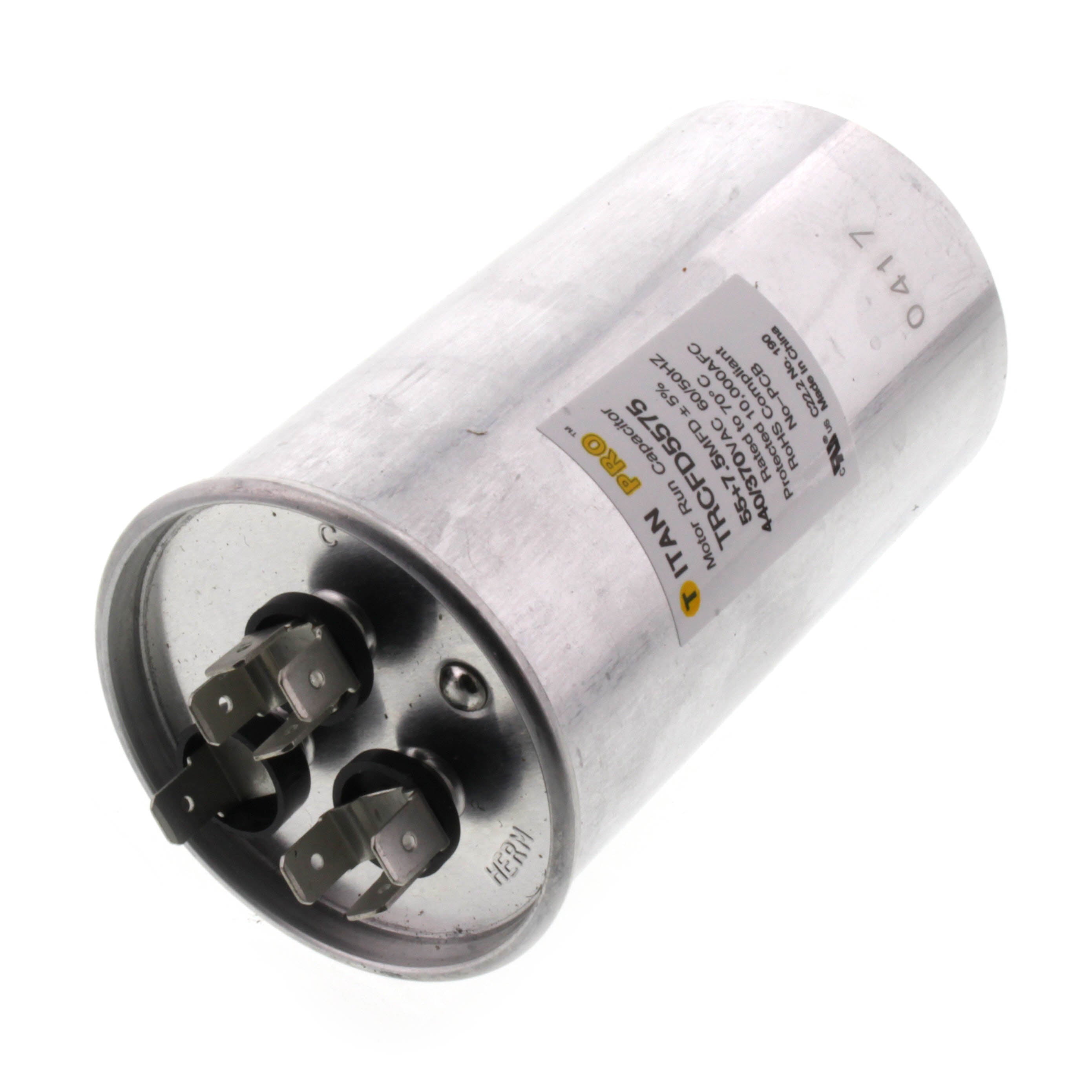

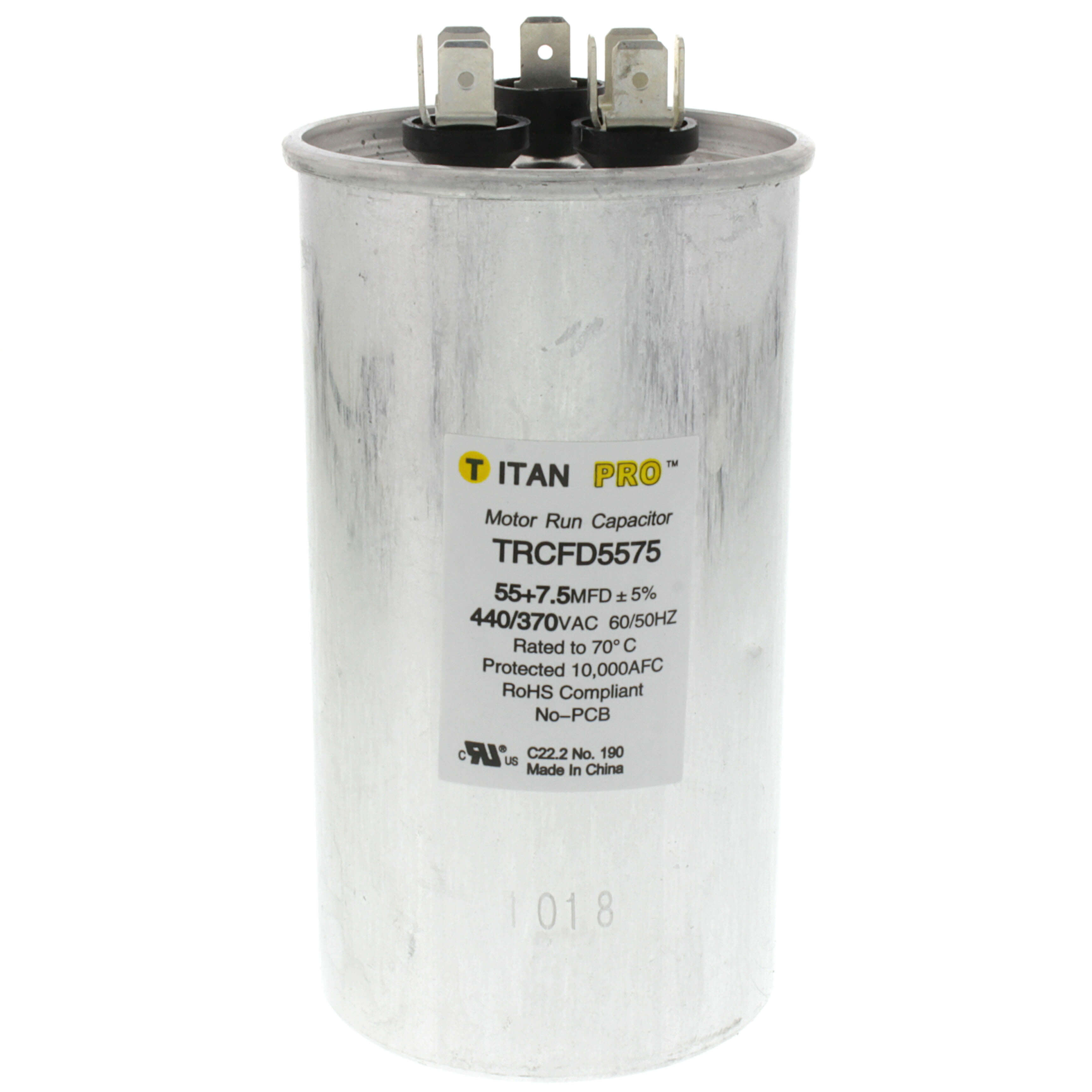

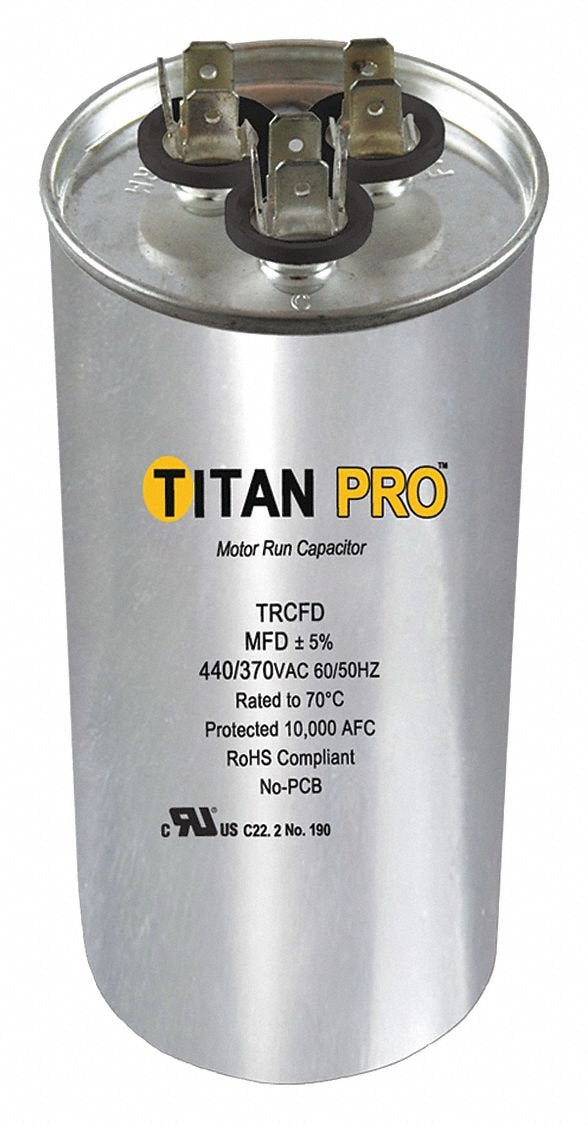

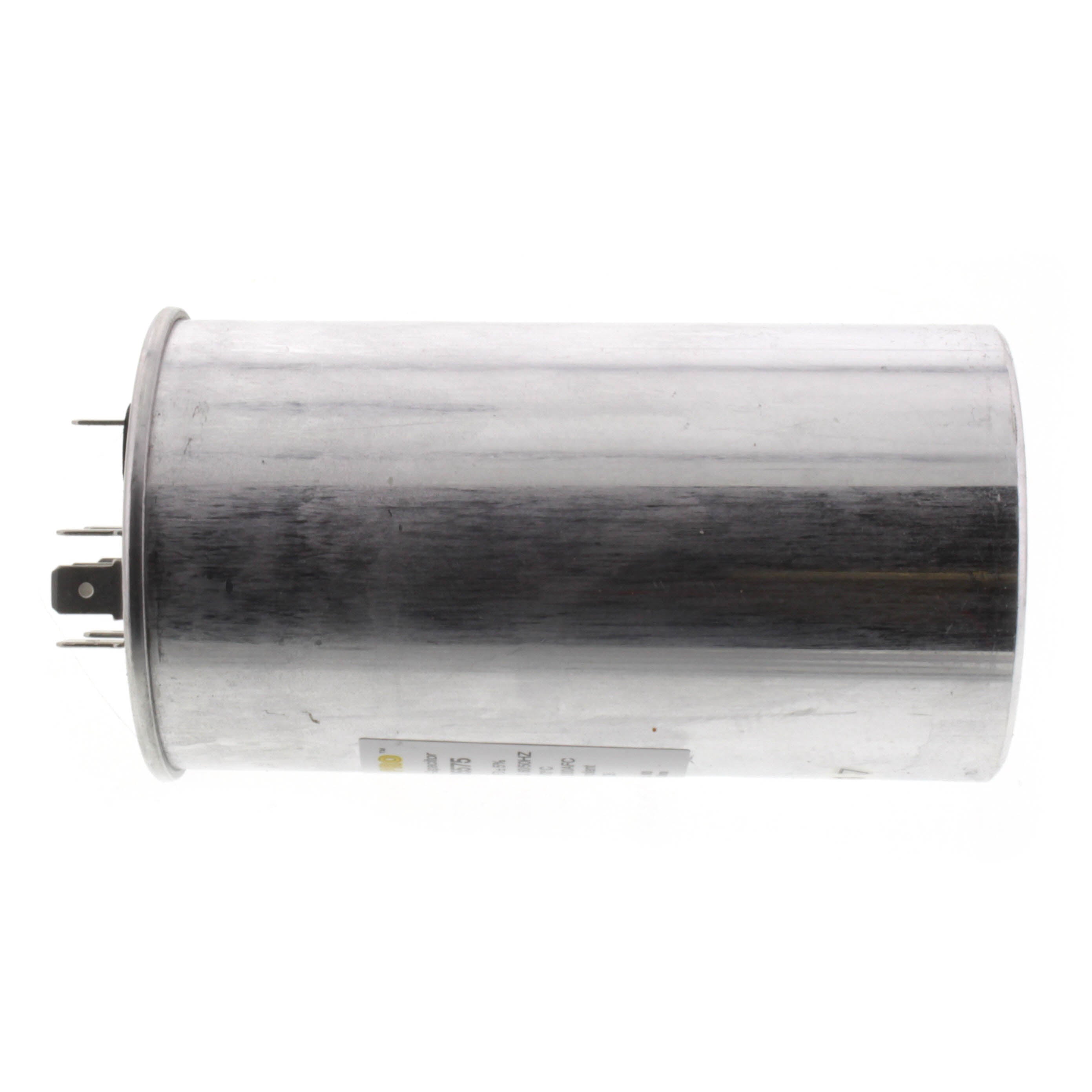

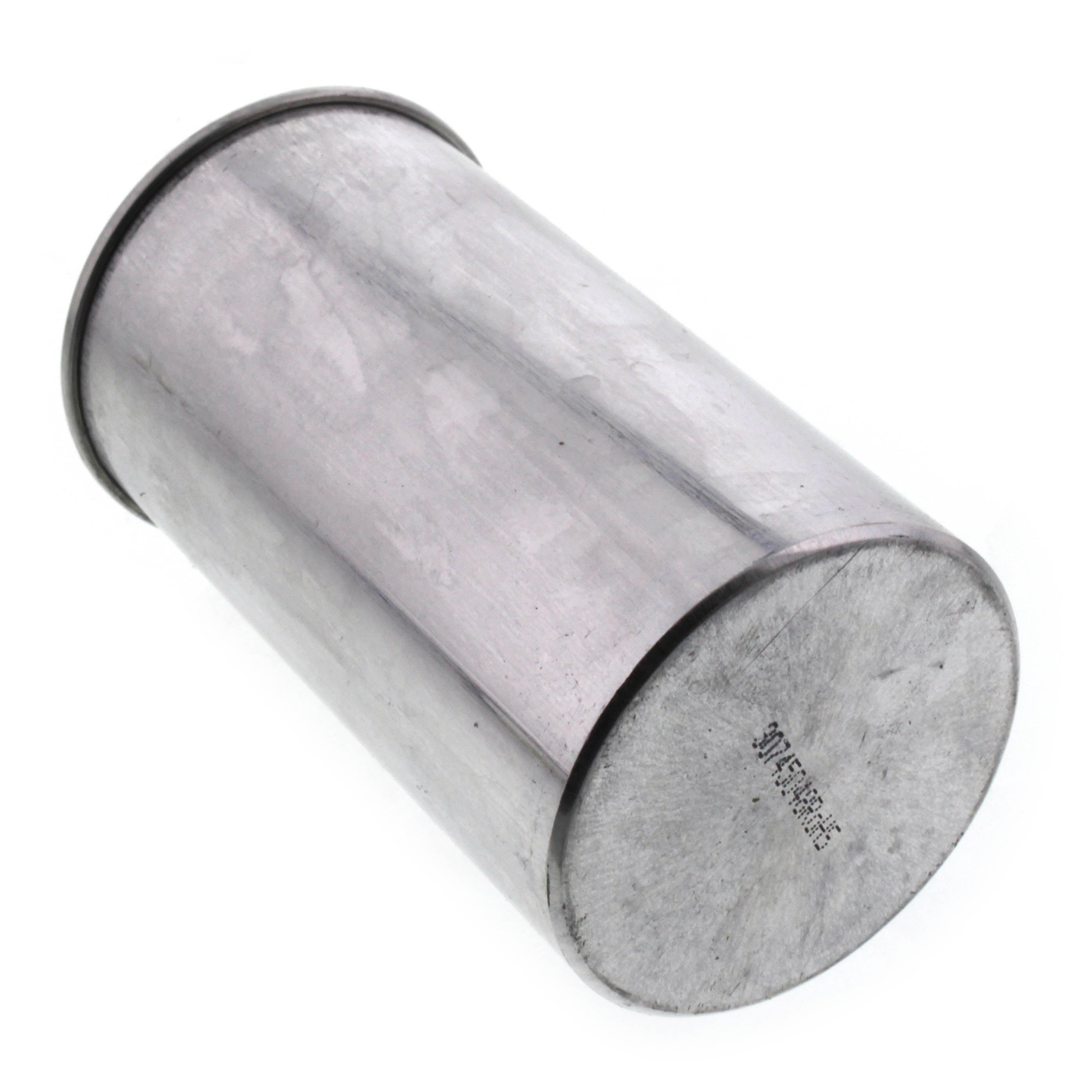

Titan Pro TRCFD5575 Motor Dual Run Cap 55/7.5 MFD 370-440V

Product Description

The TITAN PRO TRCFD5575 is a motor dual run capacitor with a rating of 55/7.5 MFD and 370-440V. This capacitor is designed for motor run applications. It features a round shape and is constructed with aluminum case material and a steel cover material. It is UL Recognized and suitable for use in various HVAC and refrigeration systems.

• Microfarad Rating: 55/7.5 MFD
• Voltage: 370-440V
• Operating Temperature Range: -40 Degrees to 70 Degrees C

Product Highlights

This motor dual run capacitor is designed for reliable performance in a variety of motor applications. It is built to meet UL standards.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD5575
• Country of Origin: China

Technical Specifications

• MPN: TRCFD5575
• Product Type: CAPACITOR
• Manufacturer: TITAN PRO
• Brand: Titan Pro
• Microfarad Rating: 55/7.5 MFD
• Voltage: 370-440V
• Hz: 60/50
• Shape: Round
• Diameter: 2-1/2"
• Case Height: 3-3/4"
• Overall Height: 4-1/4"
• Overall Width: 2-1/2"
• Overall Depth: 2-1/2"
• EIA UL Base: T
• Terminal Type: 1/4" Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• Capacitor Voltage: 370-440VAC
• Motor Capacitor Type: Motor Dual Run Capacitor
• MFD: 55/7.5
• Volts: 440/370
• Type: Running Capacitor
• Terminals: 1/4" male
• Rating: 55/7.5 MFD/uf 440/370 Volts 50/60HZ
• Voltage Rating: 370/440 V
• Sections: 2
