Product Description

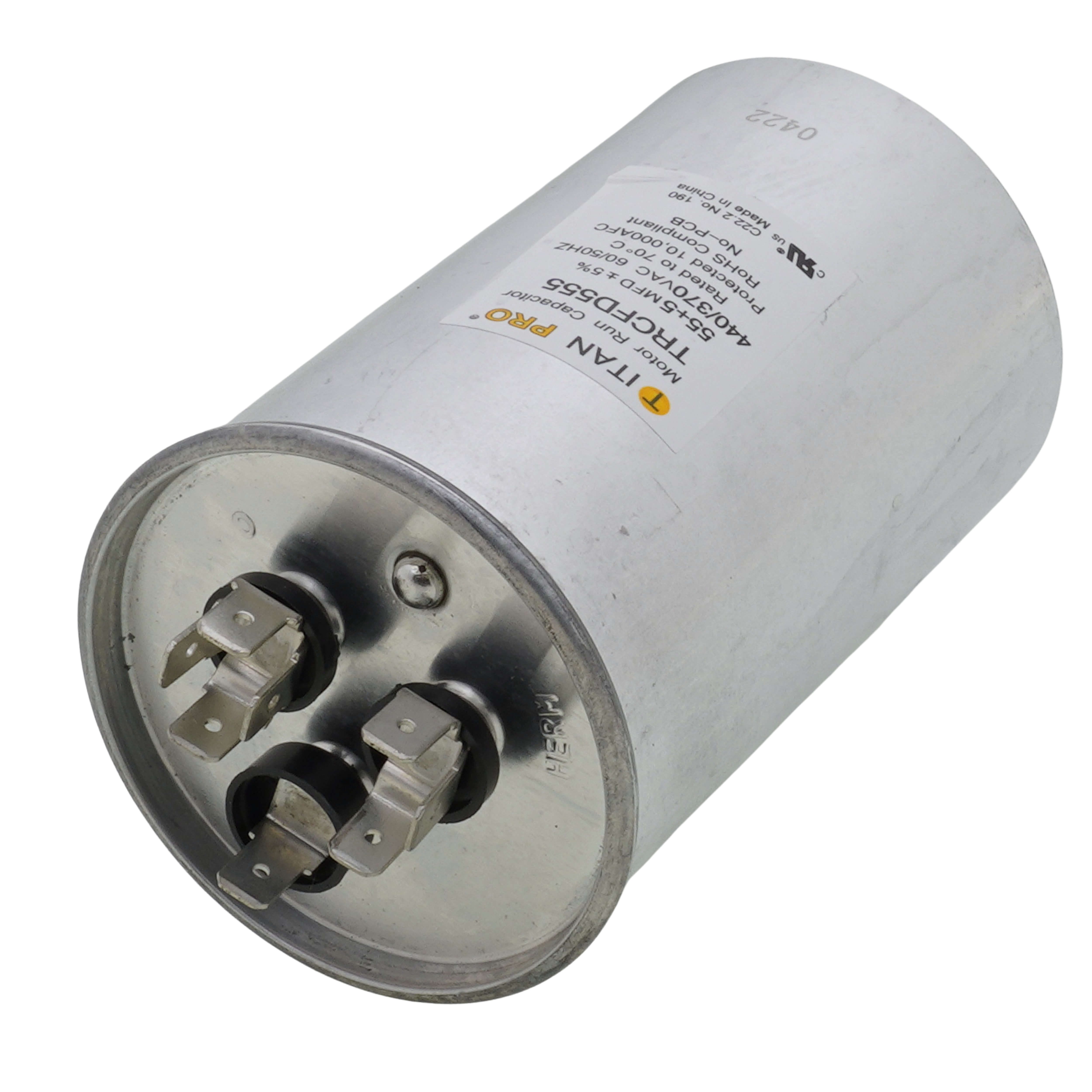

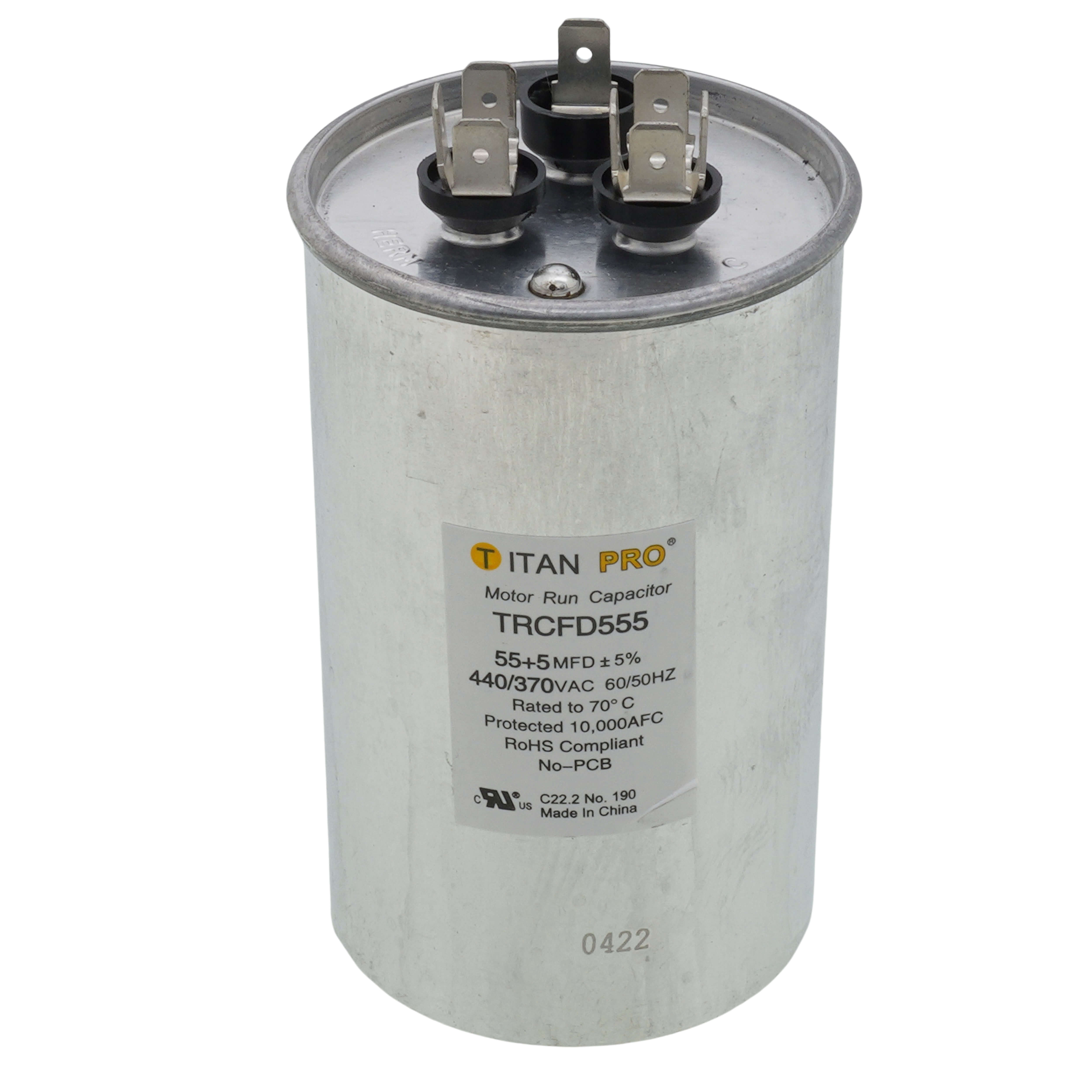

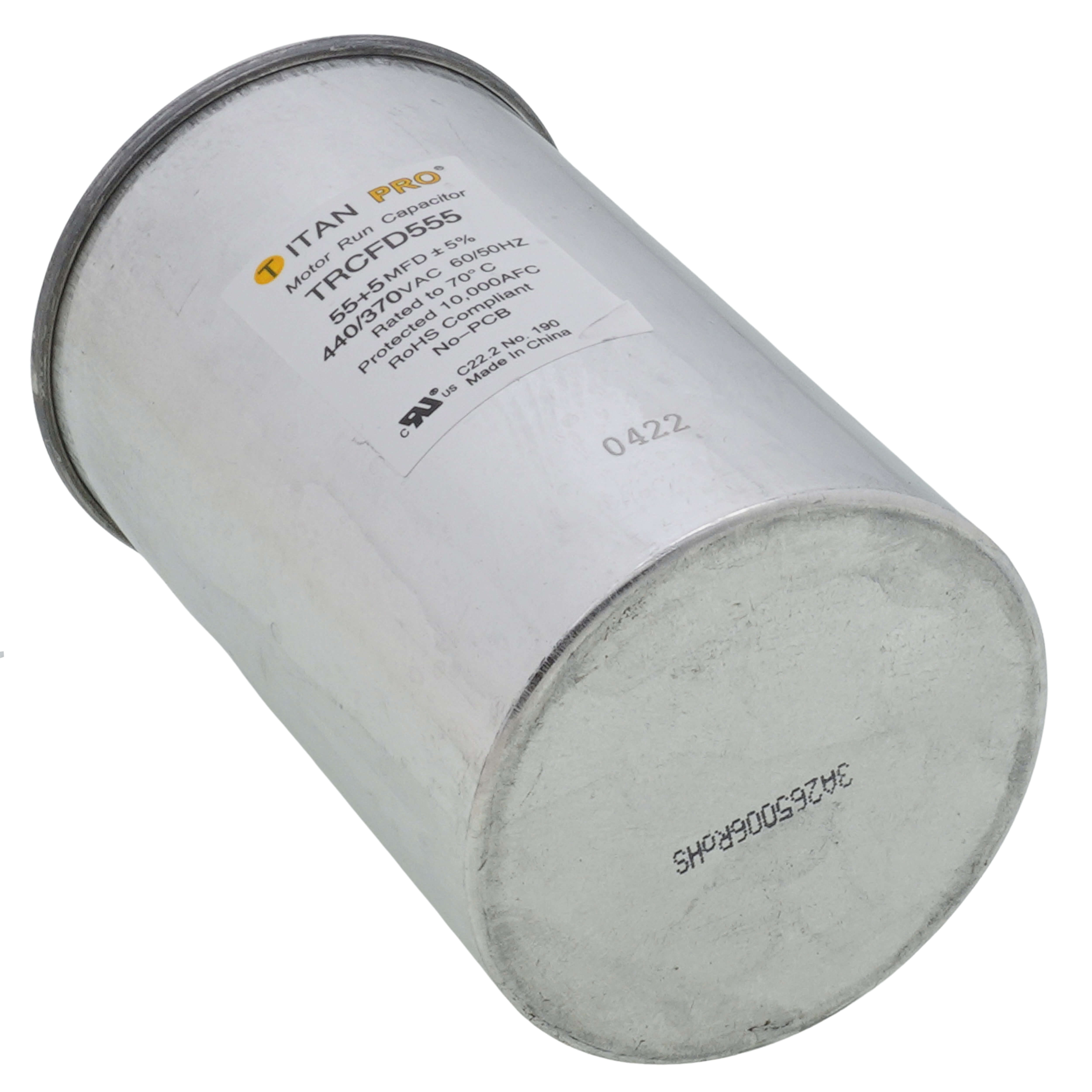

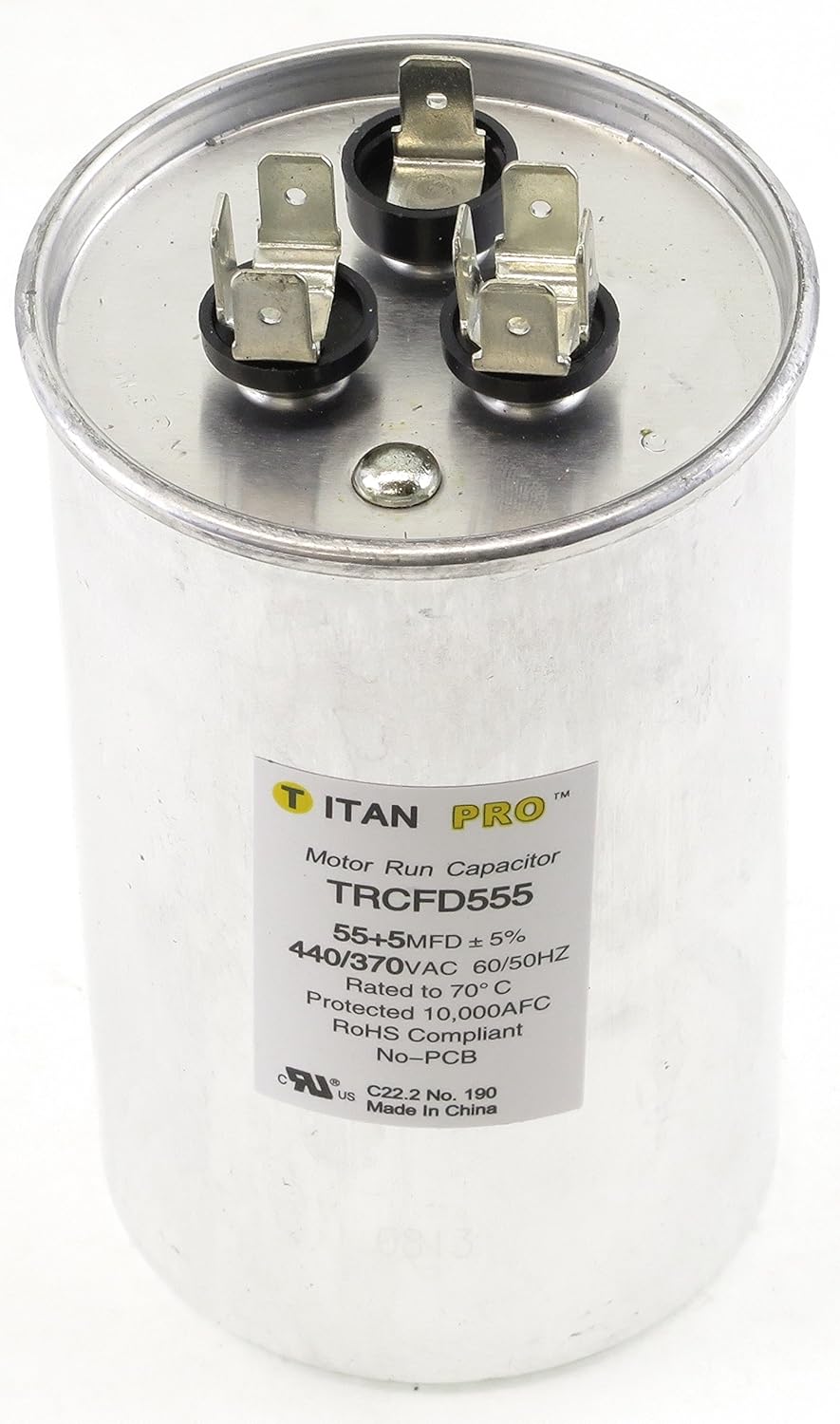

The TITAN PRO TRCFD555 is a dual rated motor run capacitor. This round capacitor has a capacitance of 55/5 MFD and is designed to operate within a voltage range of 370-440V. It is suitable for use with electric motors in various applications. The capacitor is constructed with aluminum casing and a steel cover.
- Round shape for easy installation
- Rated for 370-440V voltage
- 1/4" Male Quick-Connect terminals
Product Highlights
The TRCFD555 capacitor provides reliable performance for motor applications requiring a dual run capacitor.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TRCFD555
-
Country of Origin: China
Technical Specifications
-
Shape: Round
-
Capacitance: 55/5 uF
-
Brand: TITAN PRO
-
Manufacturer: TITAN PRO
-
Model / MPN: TRCFD555
-
Part ID / MPN: TRCFD555
-
Product Type: CAPACITOR
-
Item: Motor Run Capacitor
-
Voltage: 370-440V
-
Hz: 60/50
-
Diameter: 2-1/2"
-
Case Height: 3-3/4"
-
Overall Height: 4-1/4"
-
Overall Width: 2-1/2"
-
Overall Depth: 2-1/2"
-
EIA UL Base: A
-
Terminal Type: 1/4" Male Quick-Connect
-
Temp. Range: -40 Degrees to 70 Degrees C
-
Case Material: Aluminum
-
Cover Material: Steel
-
Standards: UL Recognized (E185318)
-
Frequency: 60/50 Hz
-
Temperature Range: -40 Degrees to 70 Degrees C
-
MFD: 55/5
-
Voltage Rating: 370 VAC, 1 Phase
-
Frequency Rating: 50/60 Hz
-
Type: Dual Run
-
Microfad Rating (uF or mFd): 55 + 5
-
Width (in.): 2.5
-
Depth (in.): 2.5
-
Capacitor Height (in.): 4.13
-
Overall Height (incl. terminals - in.): 4.53
-
Hertz: 50; 60
-
For Use With: Electric Motors
-
Connection Type: Quick Connect
-
Terminal Gender: Male
-
Max. Temperature: 70 Degrees C
-
Min. Temperature: -40 Degrees C
-
Number of Pieces: 1.0
-
Capacitor Voltage: 440/370V AC
-
EIA Tolerance Code: A
-
Terminal Tab Width: 1/4 in
-
Number of Terminals: 3.0
-
Motor Capacitor Type: Motor Dual Run Capacitor
-
Terminal Designations: Standard
-
Capacitor Voltage Group: 440V AC
-
Capacitor Voltage (Merch): 440V AC
