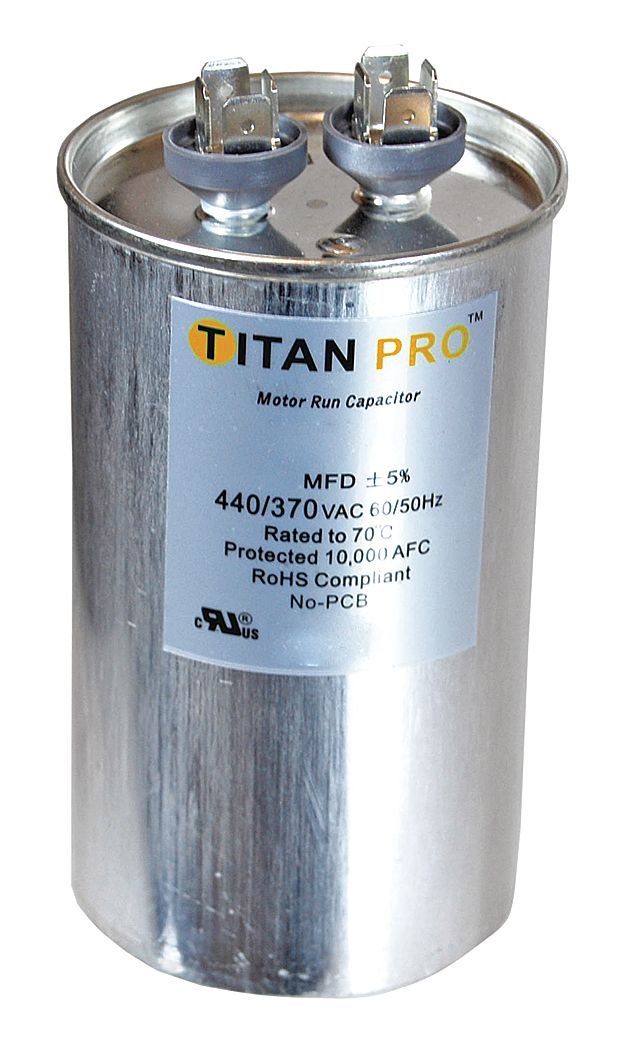

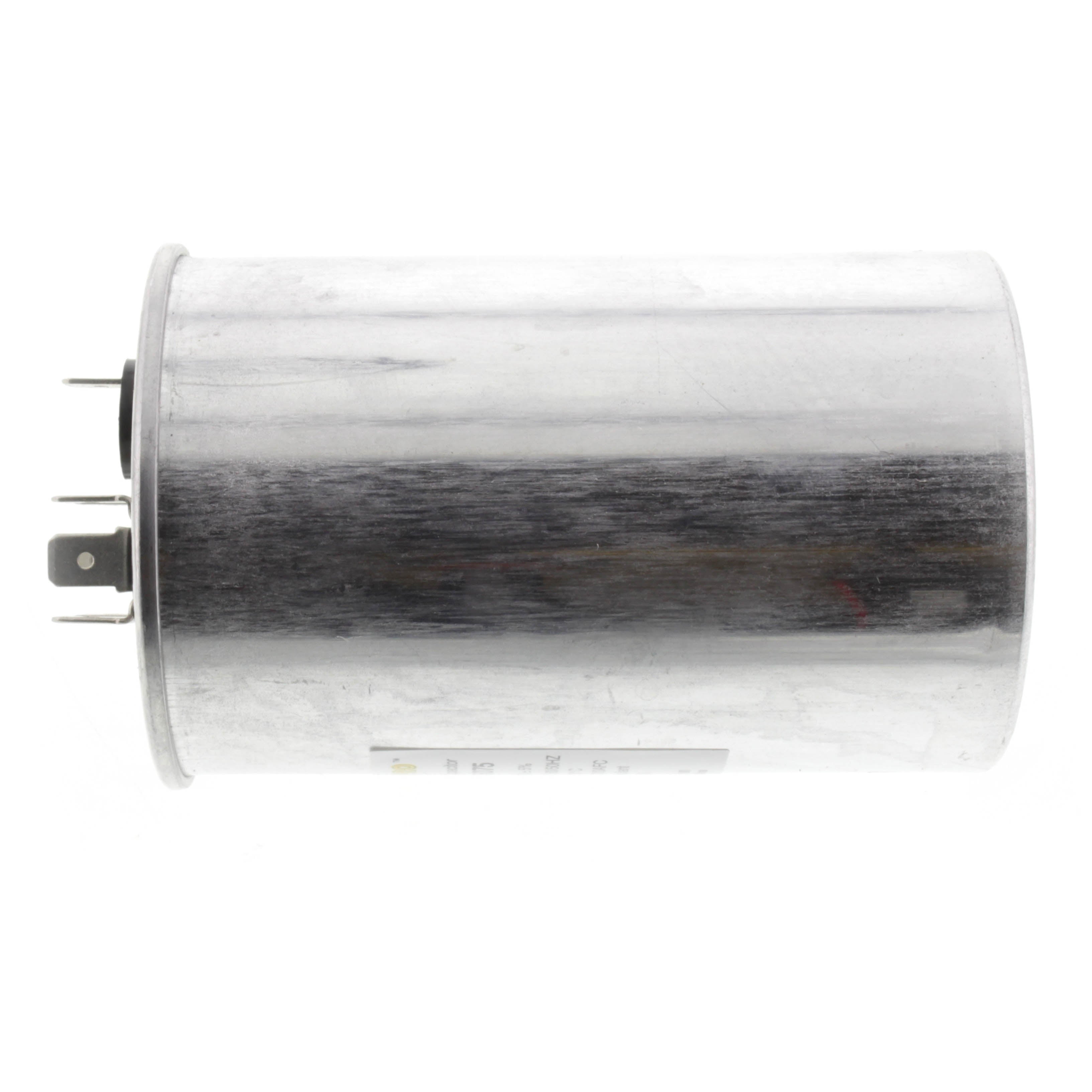

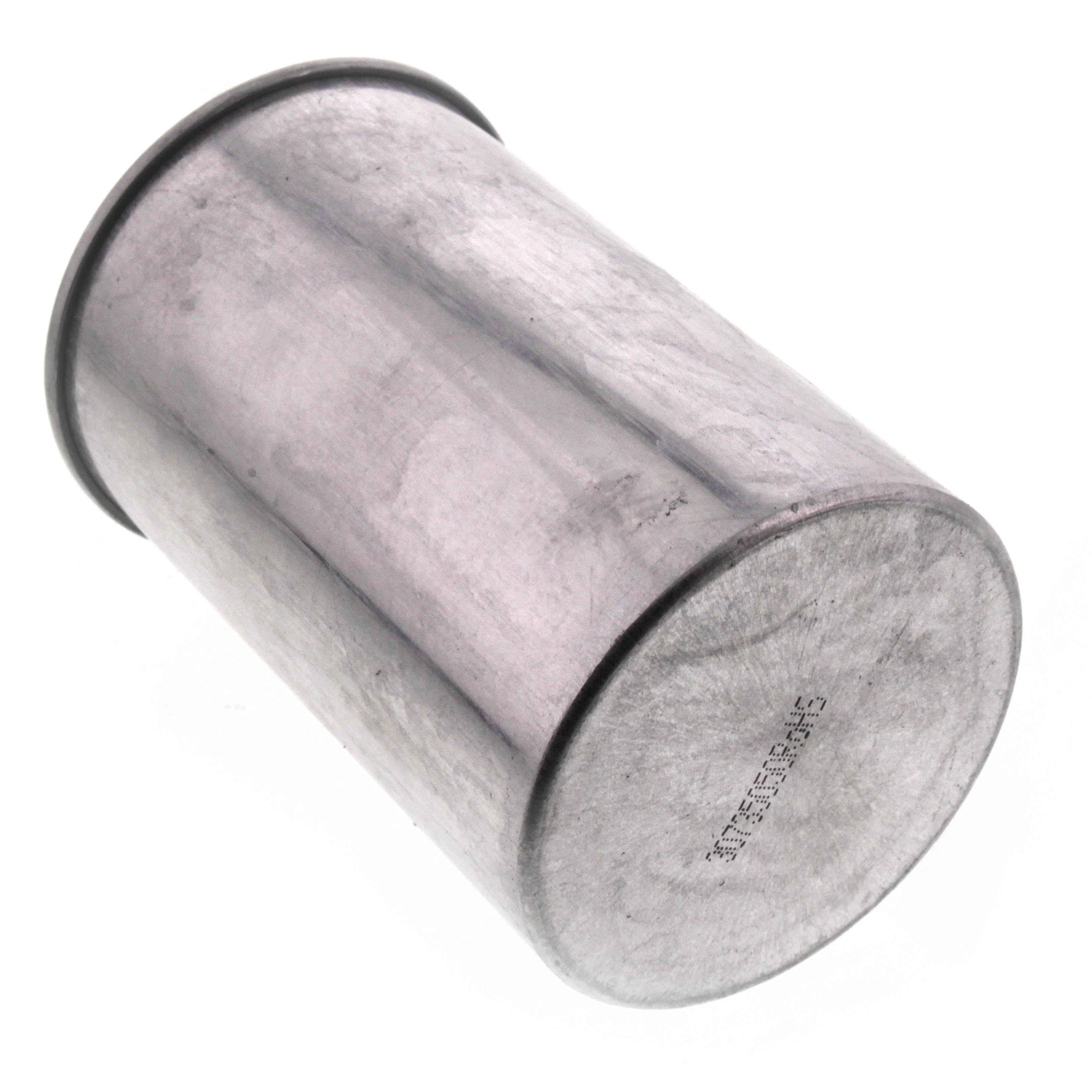

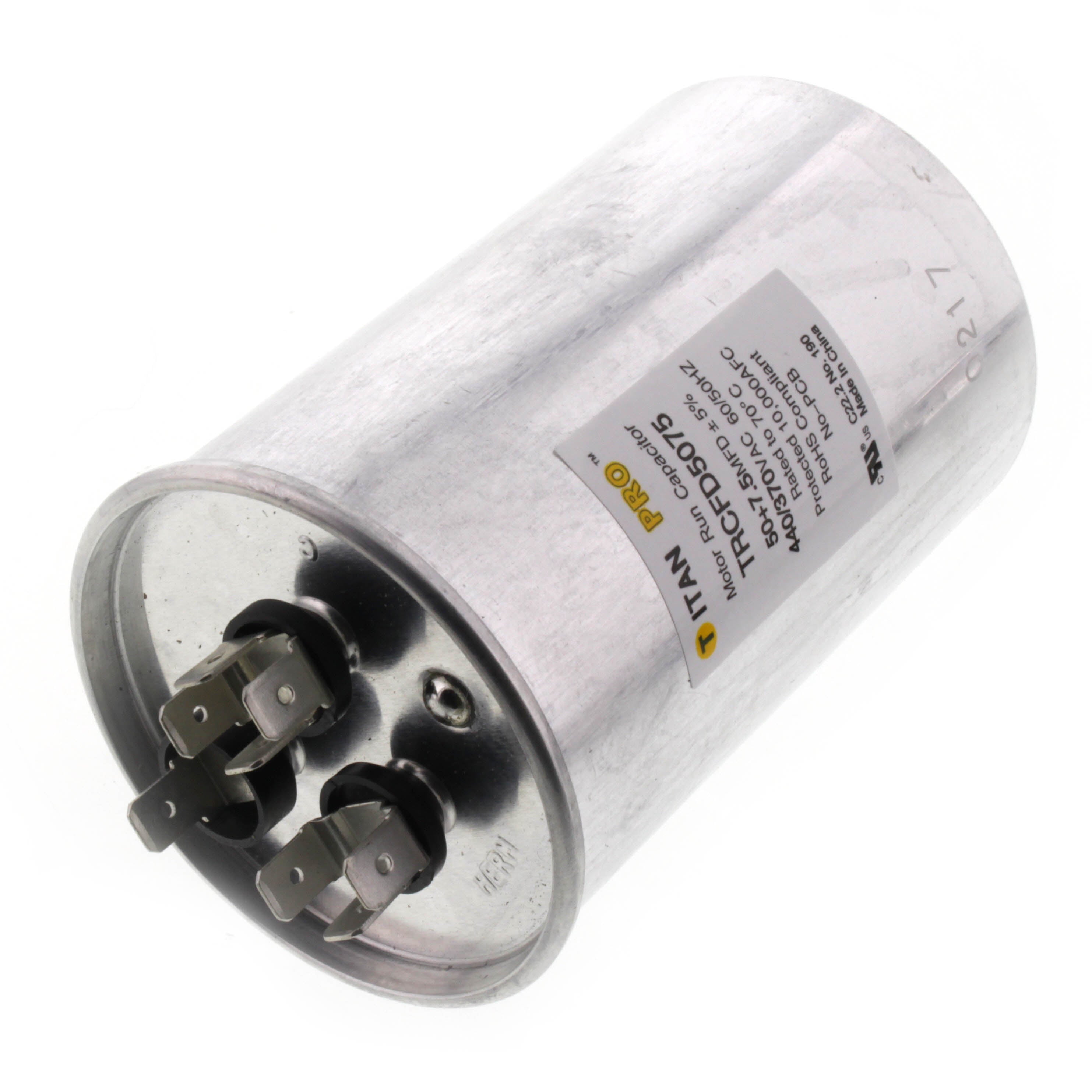

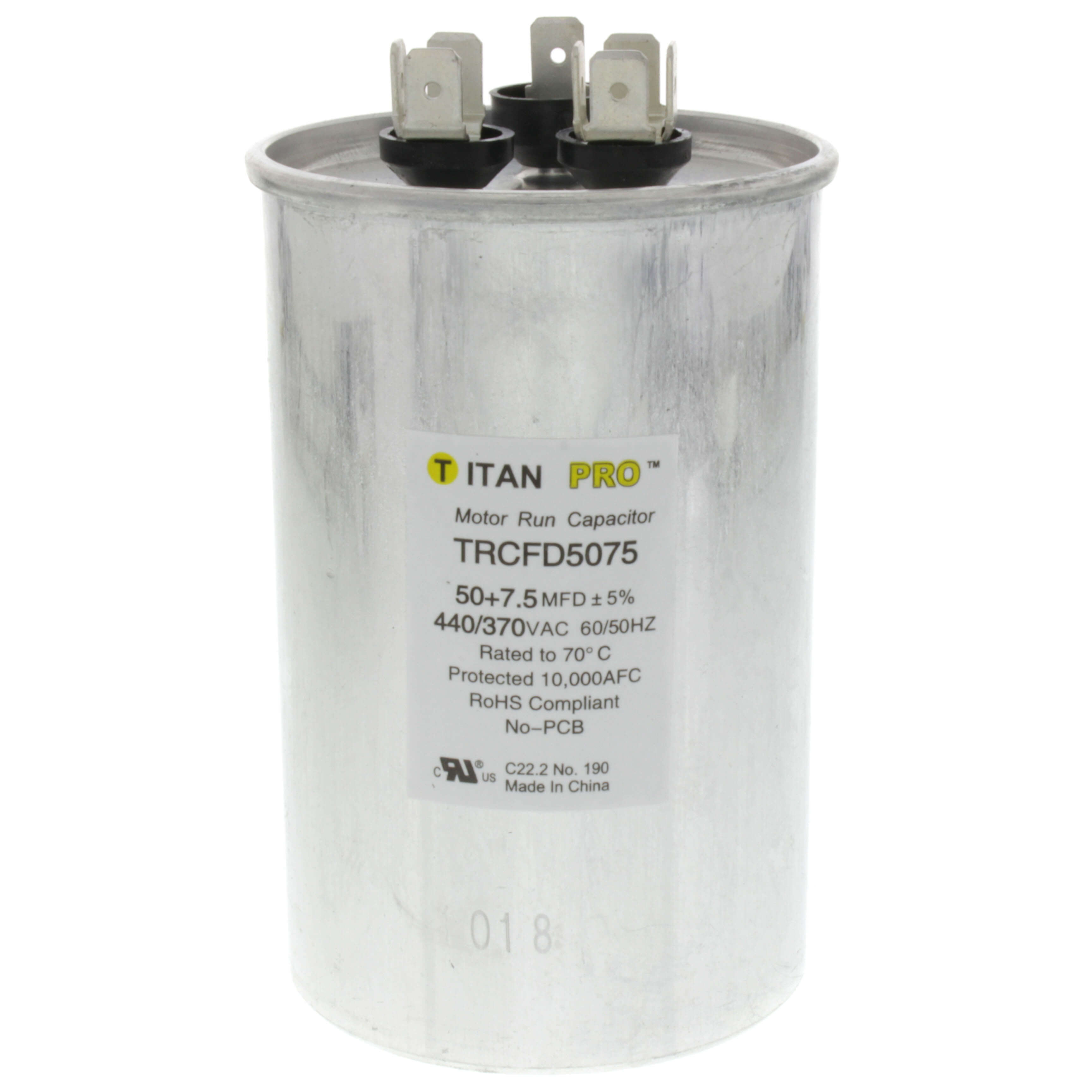

Titan Pro TRCFD5075 Motor Dual Run Cap 50/7.5 MFD 370-440V

Product Description

The TITAN PRO TRCFD5075 Motor Dual Run Capacitor is rated at 50/7.5 MFD and 370-440V. Constructed with an aluminum housing and a round shape, this capacitor is UL certified. It features heavy-edged metalized polypropylene film for the dielectric and a second-generation anti-explosion safety switch.

• Rated for 50/7.5 MFD and 370-440V
• Features a round shape and aluminum housing
• Built to international standards EIA-456-A and IEC 60252-1:2001

Product Highlights

The TRCFD5075 motor dual run capacitor offers reliable performance and is designed to meet tough international standards. It is 100% electrically tested and features a heavy-edged metalized polypropylene film.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD5075
• Country of Origin: China

Technical Specifications

• Shape: Round
• Voltage: 370 Volts
• Material: Aluminum
• Model Name: TITAN PRO
• Certification: Ul
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Capacitor
• Motor Capacitor Type: Motor Dual Run Capacitor
• Microfarad Rating: 50/7.5
• MFD: 50/7.5
• Product Type: Capacitor
• Series: TRCFD Series
• Voltage Rating: 370/440 V
• Diameter: 2-1/2 in
• Height: 3.94" (100.076mm)
• Can/Case: Round
