Titan Pro TRCFD4575 Round Motor Dual Run Capacitor 45/7.5 Microfarad Rating 370-440VAC Voltage

Product Description

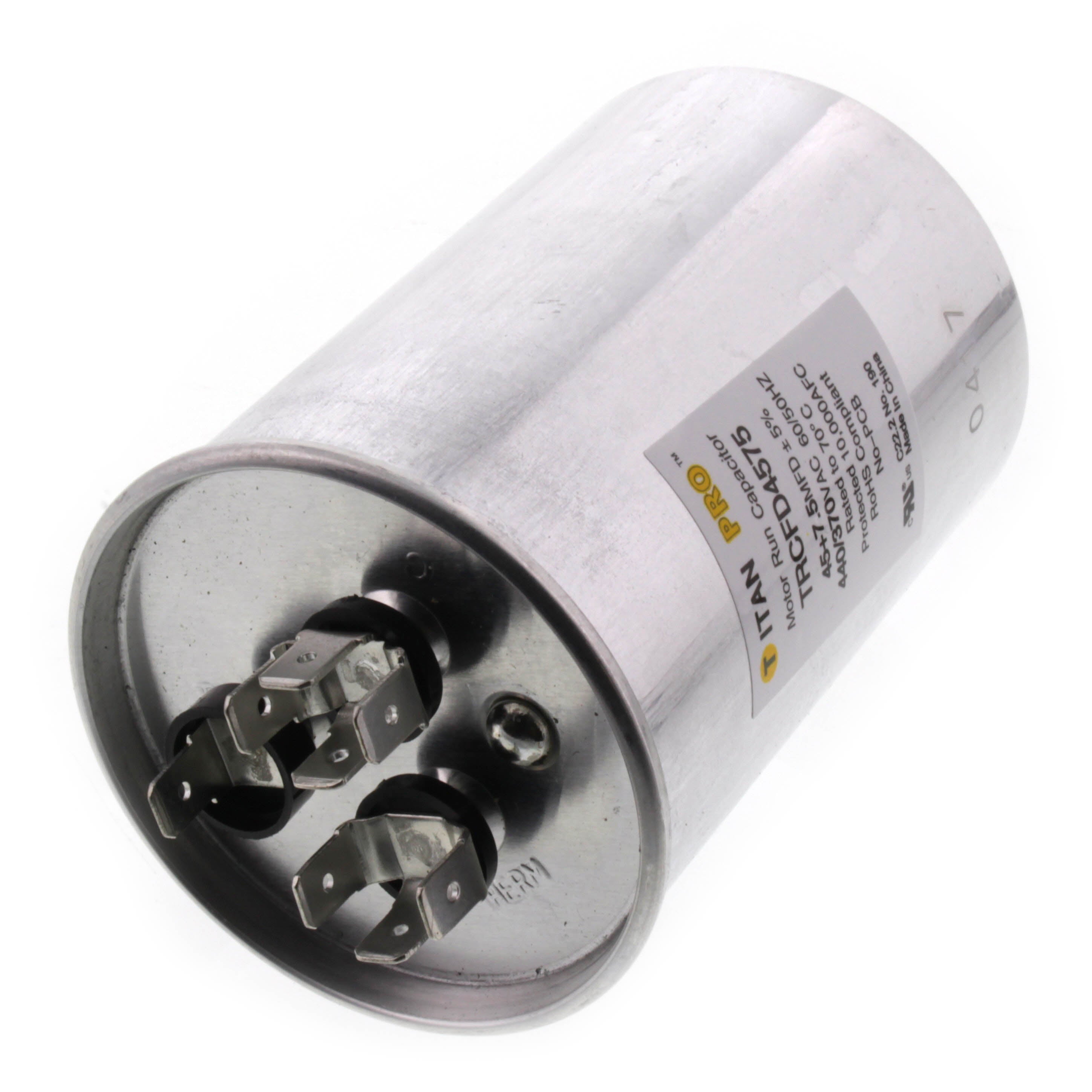

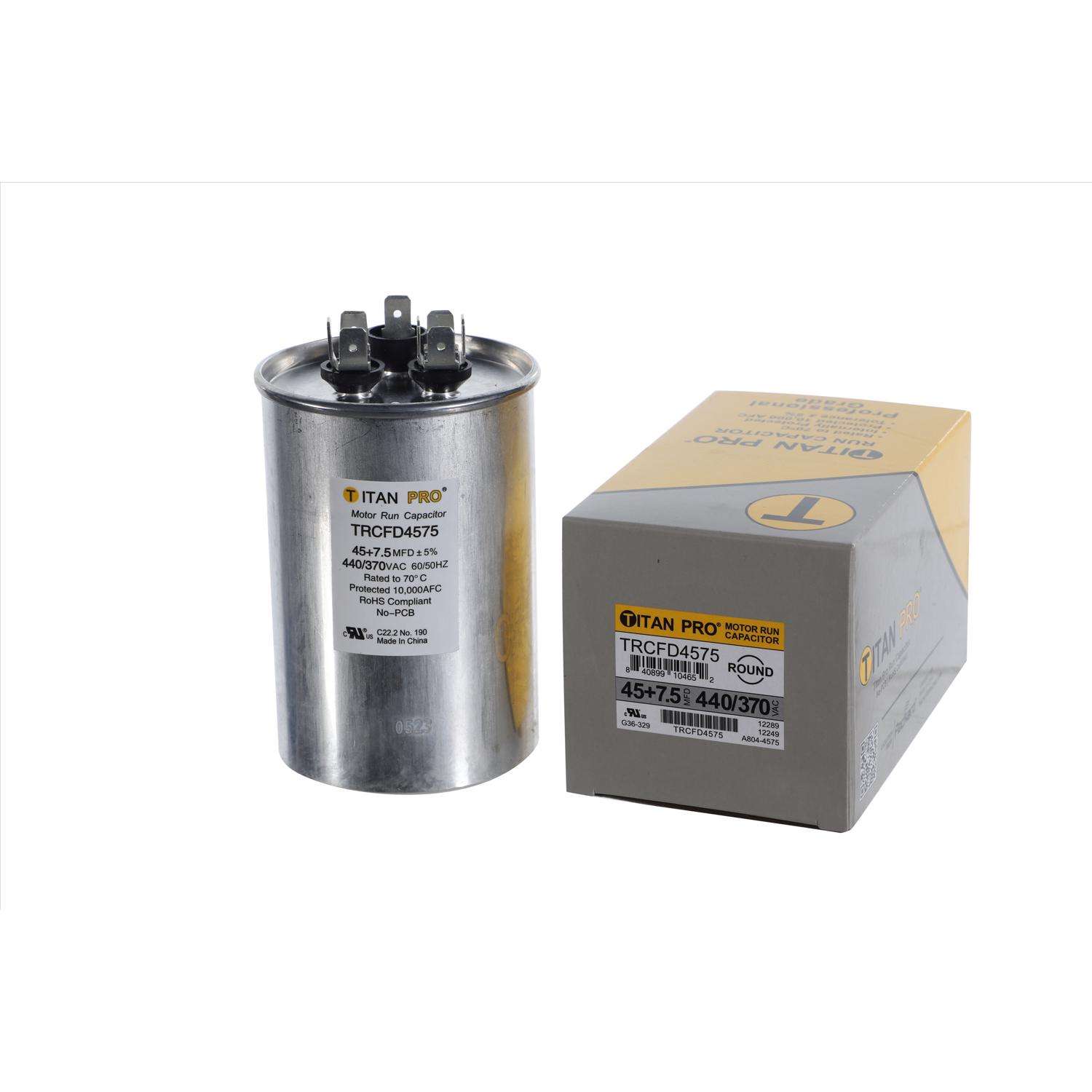

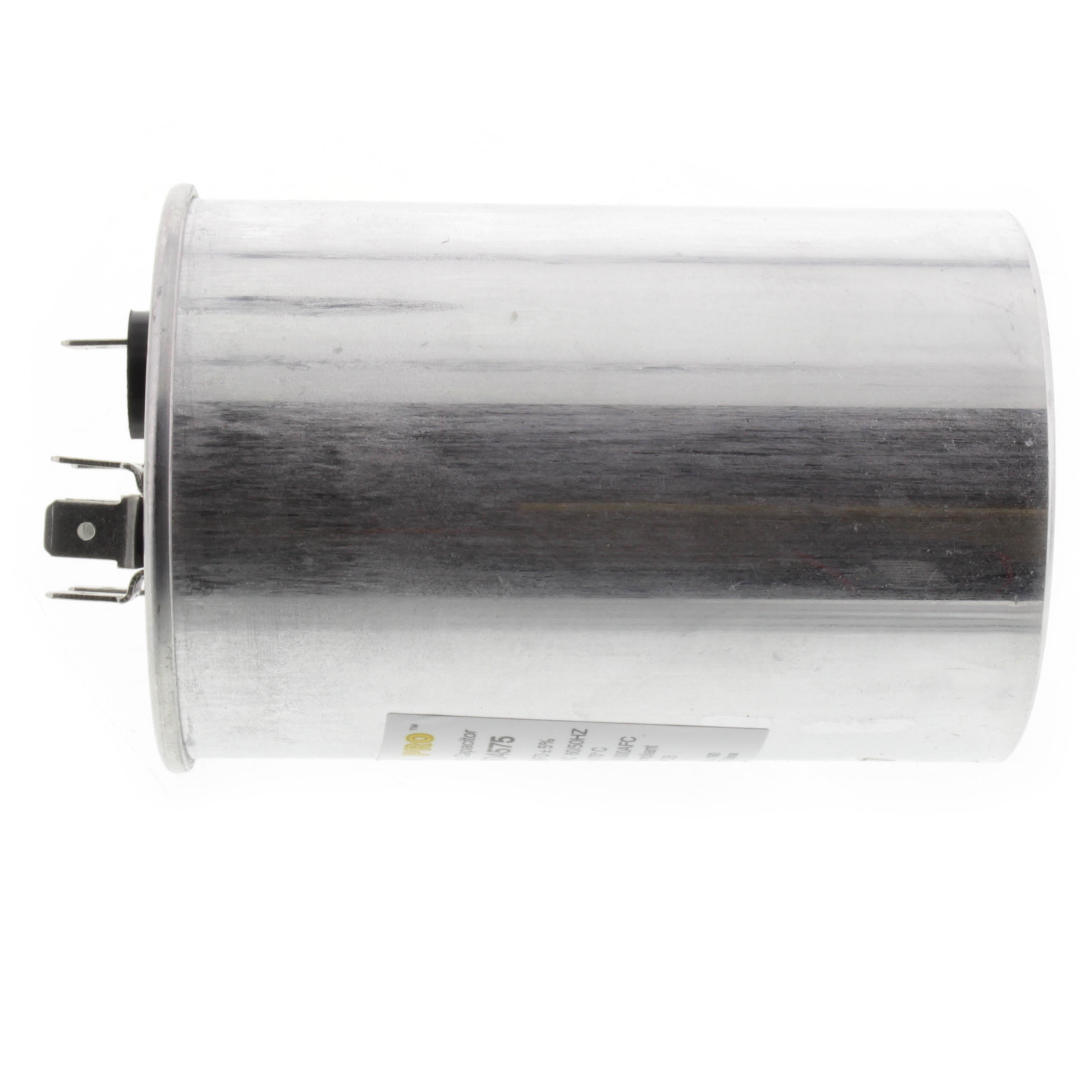

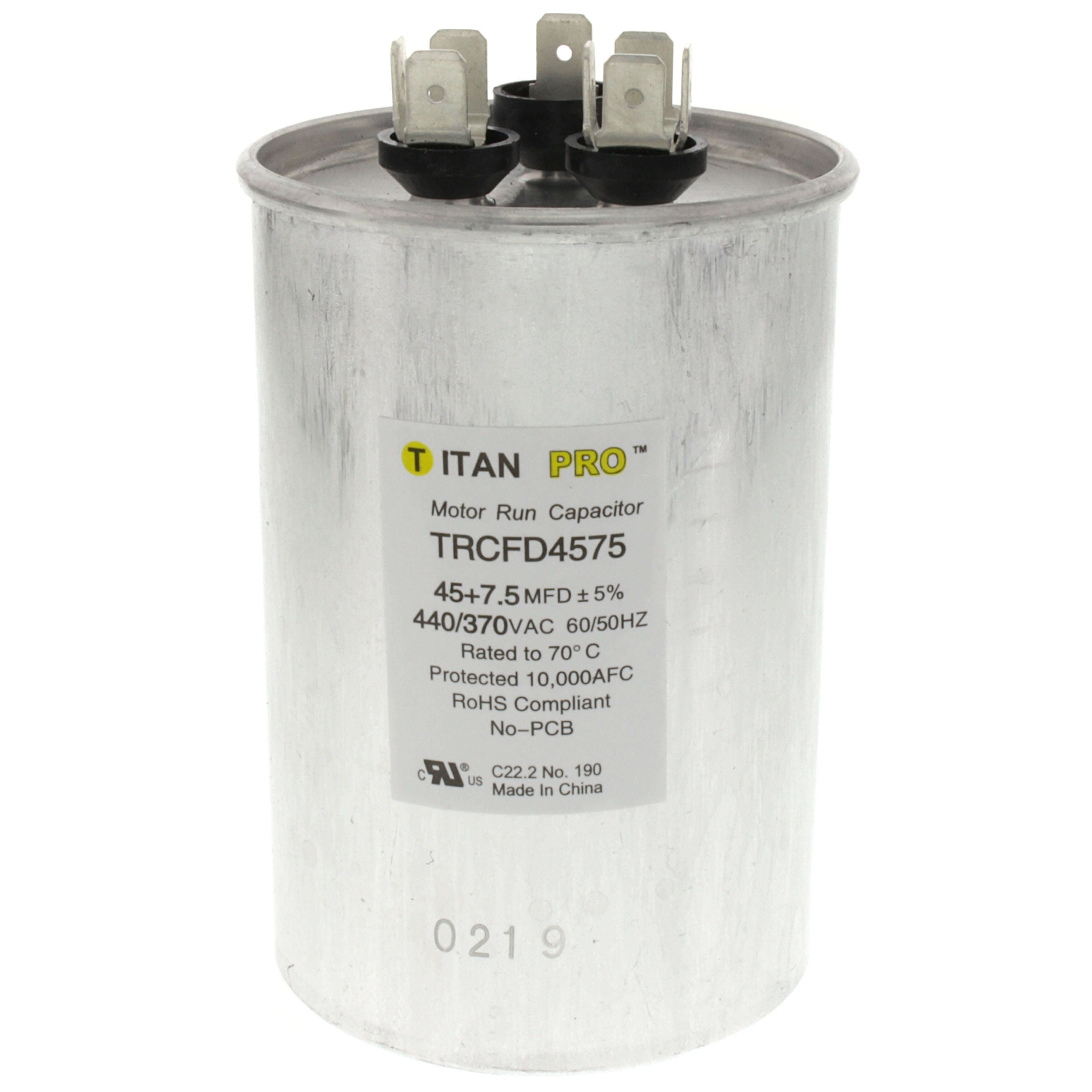

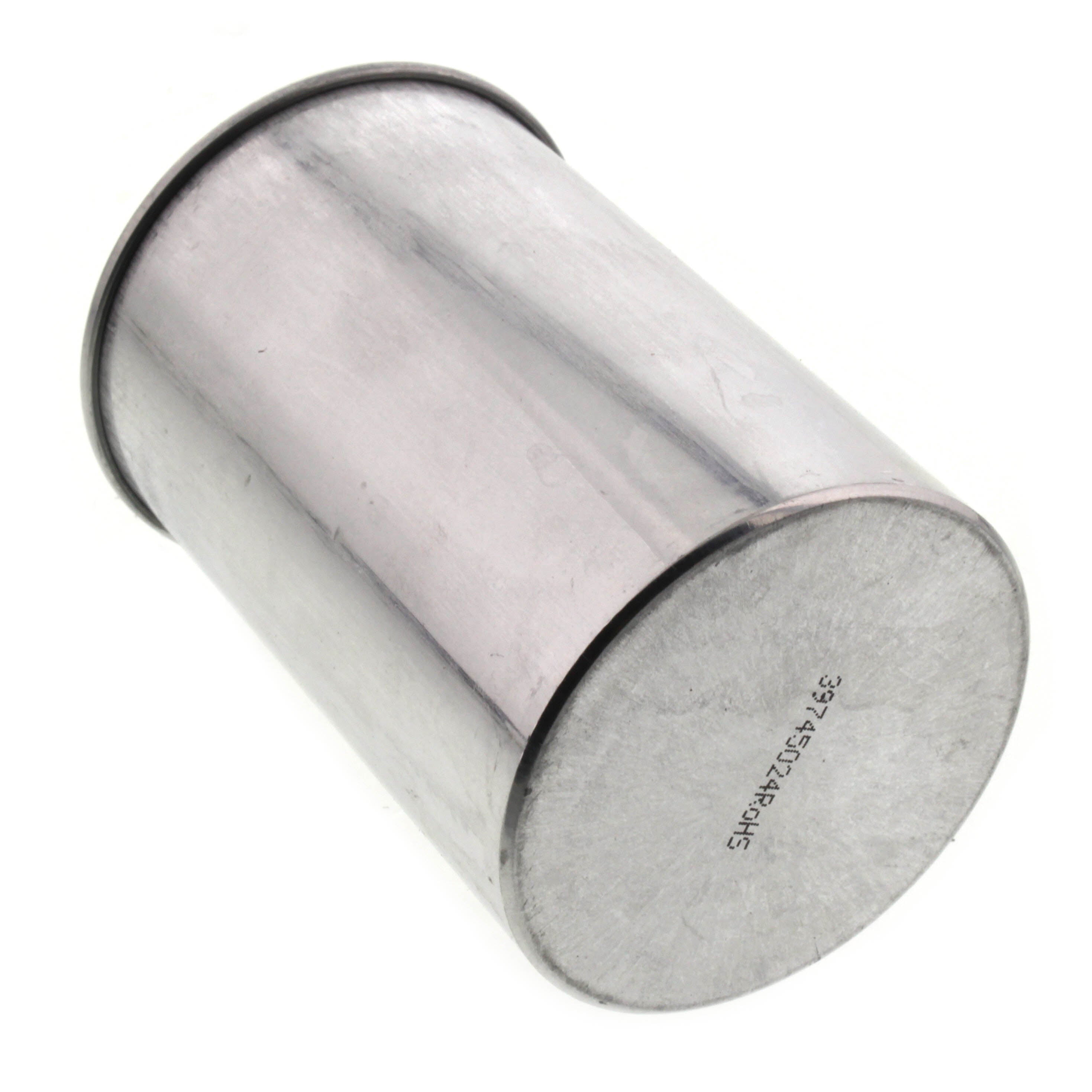

The TITAN PRO TRCFD4575 is a round motor dual run capacitor with a 45/7.5 microfarad rating and 370-440VAC voltage. Constructed with an aluminum case and steel cover, this capacitor is designed for use with electric motors in HVAC applications. It features a 1/4" male quick-connect terminal type and operates at 60/50 Hz.

• 45/7.5 Microfarad Rating
• 370-440VAC Voltage
• Round shape

Product Highlights

This dual run capacitor contains two capacitance values in a single unit and can replace two single run capacitors.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD4575
• Country of Origin: China

Technical Specifications

• Shape: Round
• Material: Aluminum
• Capacitance: 45 Microfarad
• Maximum Voltage: 440 Volts
• Operating Voltage: 440 Volts
• Item: Motor Run Capacitor
• Microfarad Rating: 45/7.5
• Voltage: 370-440V
• Hz: 60/50
• Diameter: 2-1/2
• Case Height: 3-9/16
• Overall Height: 4-1/16
• Overall Width: 2-1/2
• Overall Depth: 2-1/2
• EIA UL Base: T
• Terminal Type: 1/4 Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• Capacitor Voltage: 370-440VAC
• Capacitor Shape: Round
• Motor Capacitor Type: Motor Dual Run Capacitor
• Voltage Rating: 370/440 V
• Product Type: Dual Run Capacitor
• Housing Shape: Round
• Overall Diameter: 2-1/2 in
• Operating Temperature - Minimum: -40 °C
• Operating Temperature - Maximum: 70 °C
• Housing Height: 3-3/4 in
• Terminal Gender: Male
• Terminal Tab Width: 1/4 in
• Number of Pieces: 1
• Terminal Connection Type: Quick Connect
• Number of Terminals: 3
• Sub-brand: Titan Pro
• EIA Tolerance Code: A
• Frequency: 60/50 Hz
