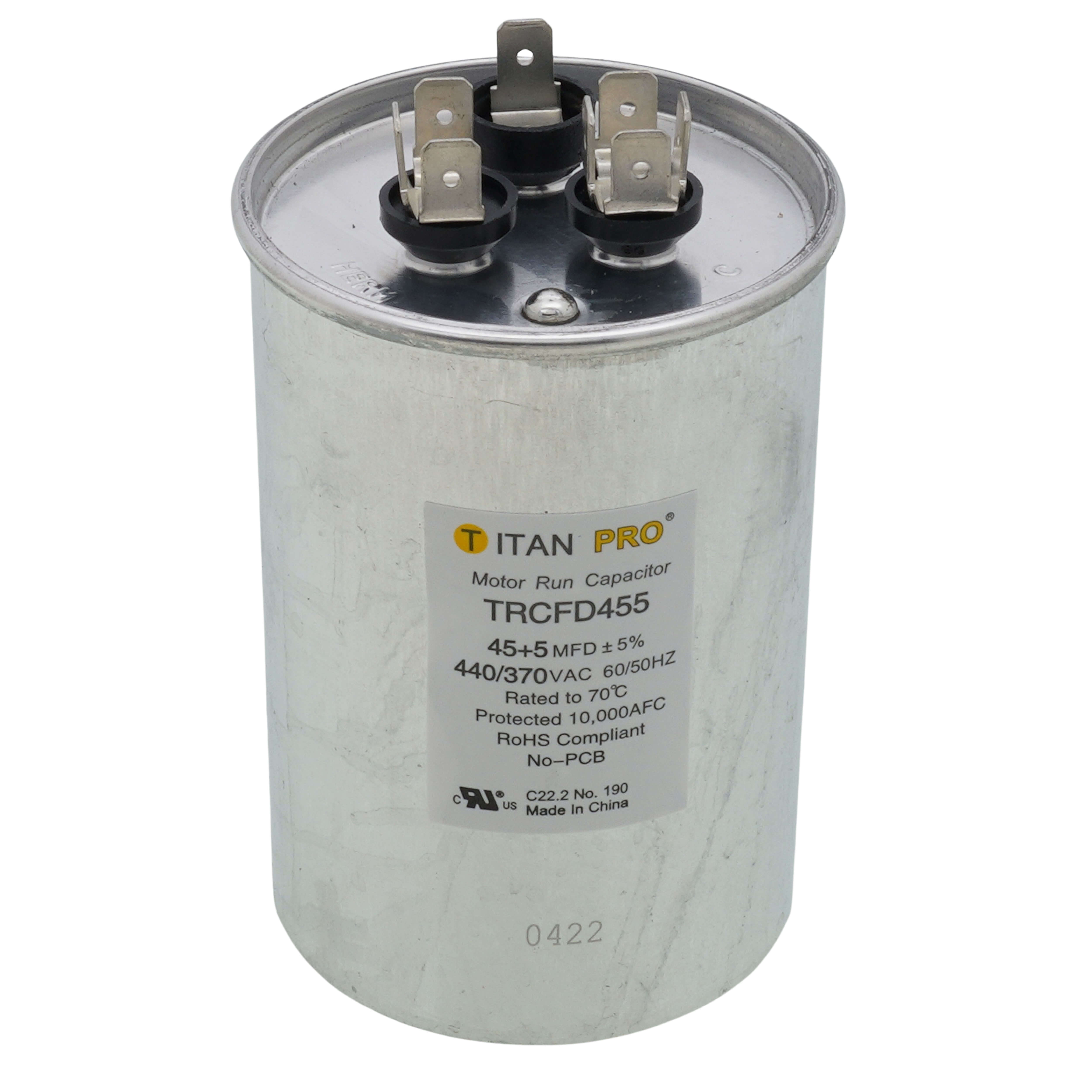

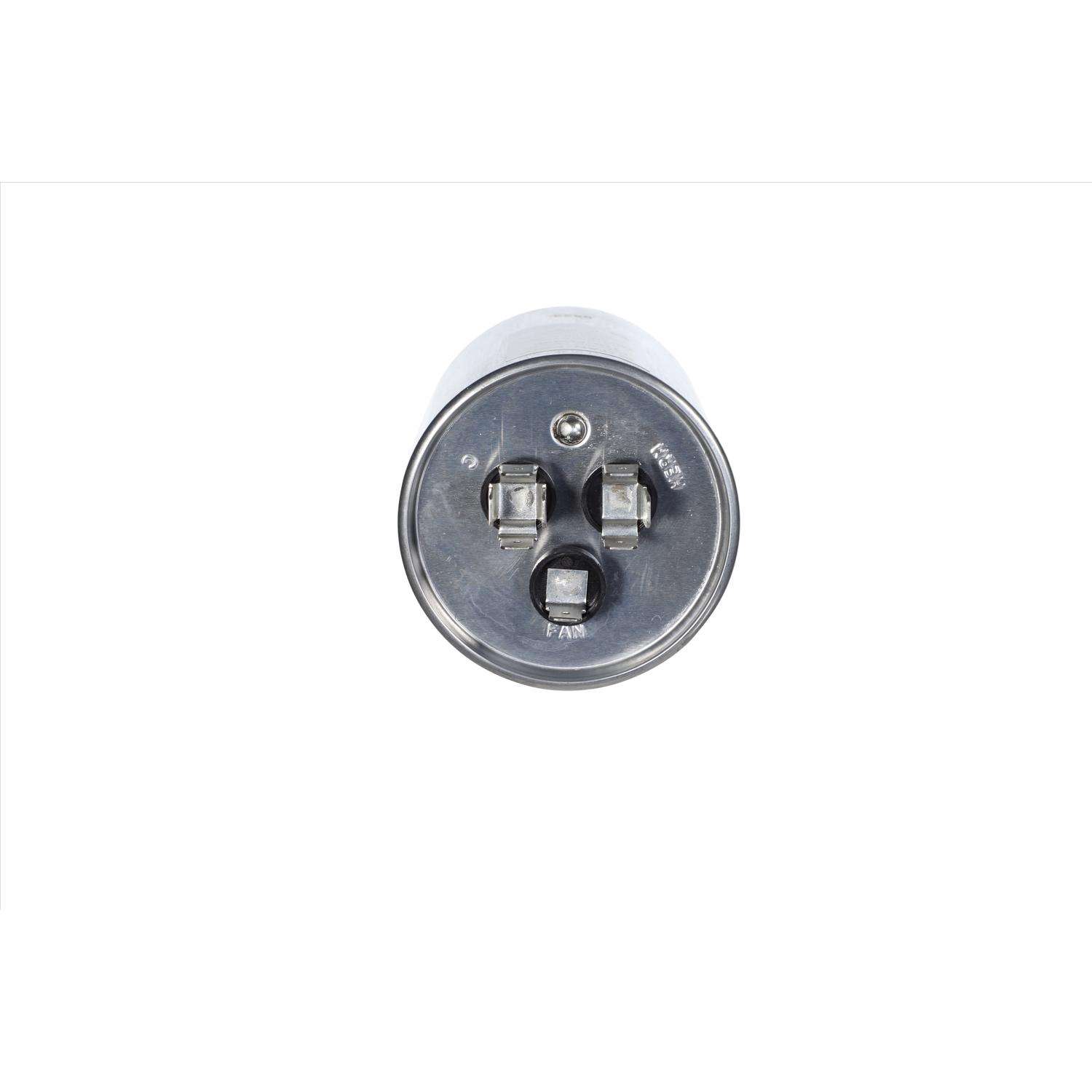

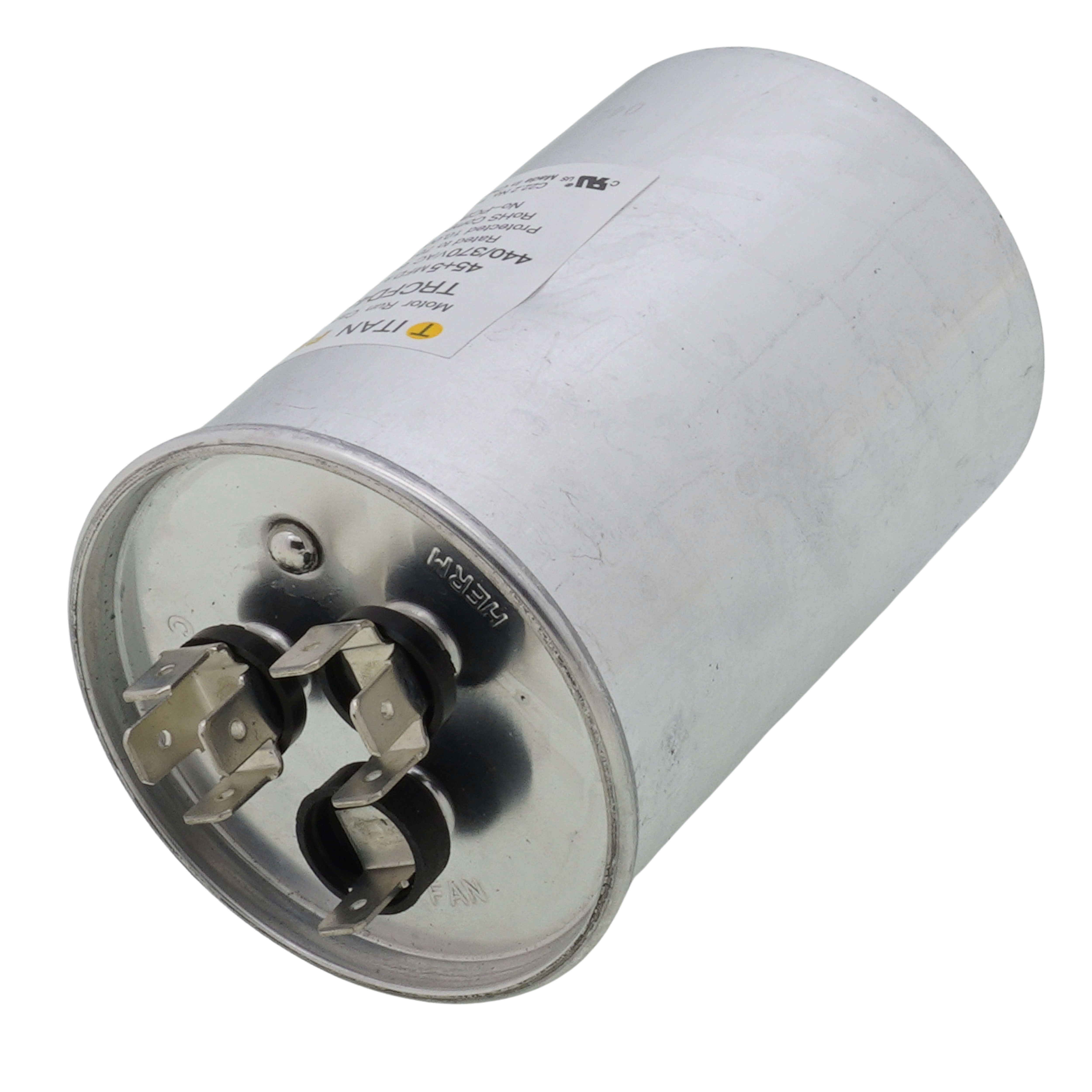

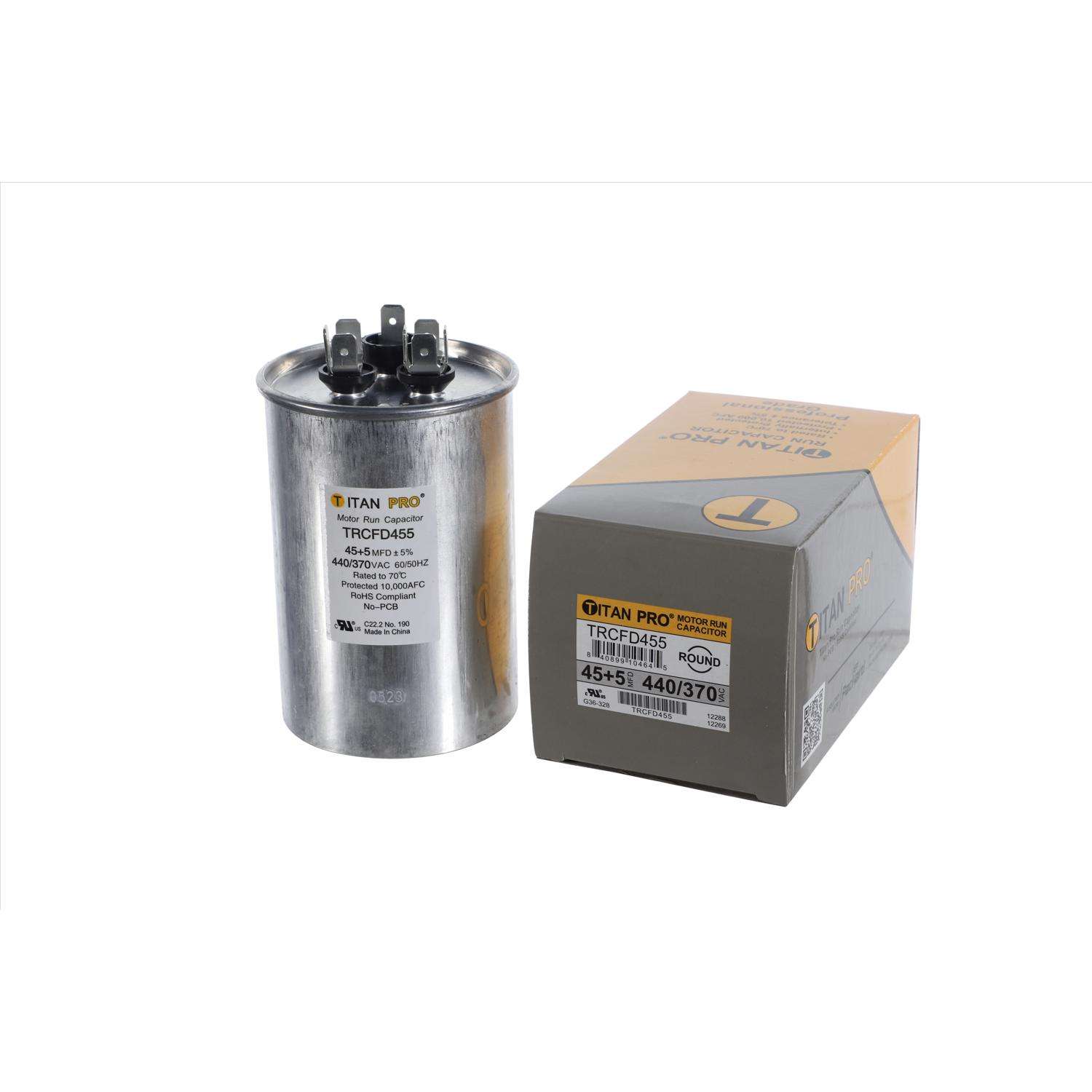

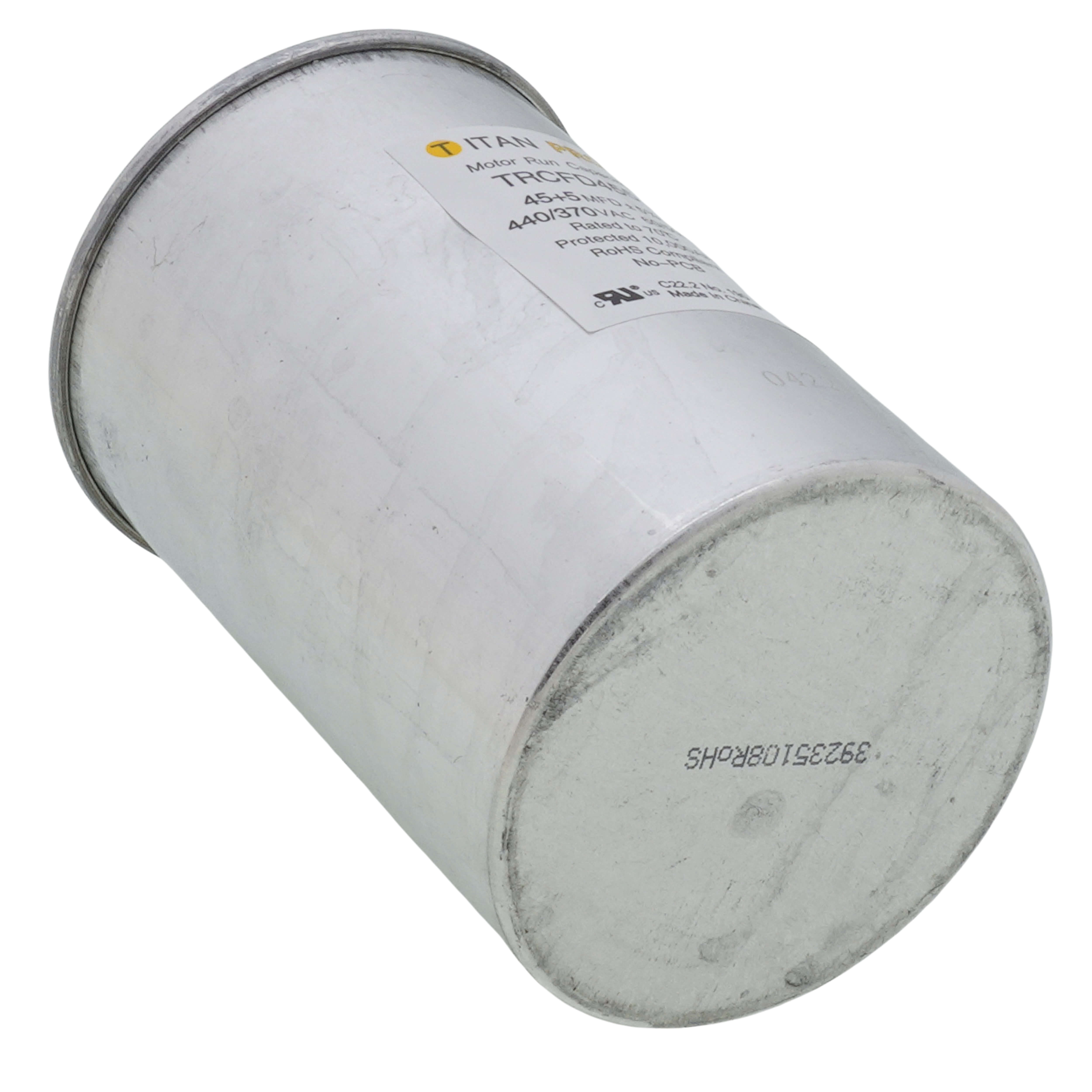

Titan Pro TRCFD455 45+5MFD 440/370V Round Run Capacitor Replaces PRCFD455

Product Description

The TITAN PRO TRCFD455 is a 45+5 MFD 440/370V round run capacitor that replaces PRCFD455. This capacitor stores electrical energy for motor operation, providing voltage and current adjustments. It features a heavy-edged metalized polypropylene film dielectric and a second-generation anti-explosion safety switch. Ideal for HVAC systems and various motor applications.

• 45+5 MFD capacitance
• Rated for 440/370V operation
• 60,000 hours operational life

Product Highlights

This TITAN PRO capacitor ensures reliable motor performance with its robust design and extended operational lifespan.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD455
• Country of Origin: CN

Technical Specifications

• Brand: TITAN PRO
• MPN: TRCFD455
• Manufacturer: Titan Pro
• Volts: 440
• MFD: 45+5
• Shape: Round
• Operational Life: 60,000 hours
• Testing: 100% electrical testing
• Dielectric: Heavy edged metalized polypropylene film
• Safety Switch: Second generation anti-explosion safety switch
• Capacitor Voltage: 370-440VAC
• Output Voltage: 440/370 Volts
• Capacitance: 45 Microfarad
• Item Shape: Round
• Maximum Storage Temperature: 158 Degrees Fahrenheit
• Operating Voltage: 370 Volts
• Maximum Voltage: 370 Volts
• Upper Temperature Rating: 70 Degrees Celsius
• Material Type: Polypropylene
• Product Type: Dual Run Capacitor
• Microfad Rating (uF or mFd): 45 + 5
• Voltage: 370-440V
• Hertz: 50; 60
• Minimum Operating Voltage: 370 V
• Type: Motor Run Capacitor
• Material: Aluminum, Polypropylene, Metal
• Maximum Operating Voltage: 440 V
• Model name: TRCFD455
• Model: TRCFD455
• Diameter: 2.50"
• Height: 3.74"
• Width: 2.50
