Product Description

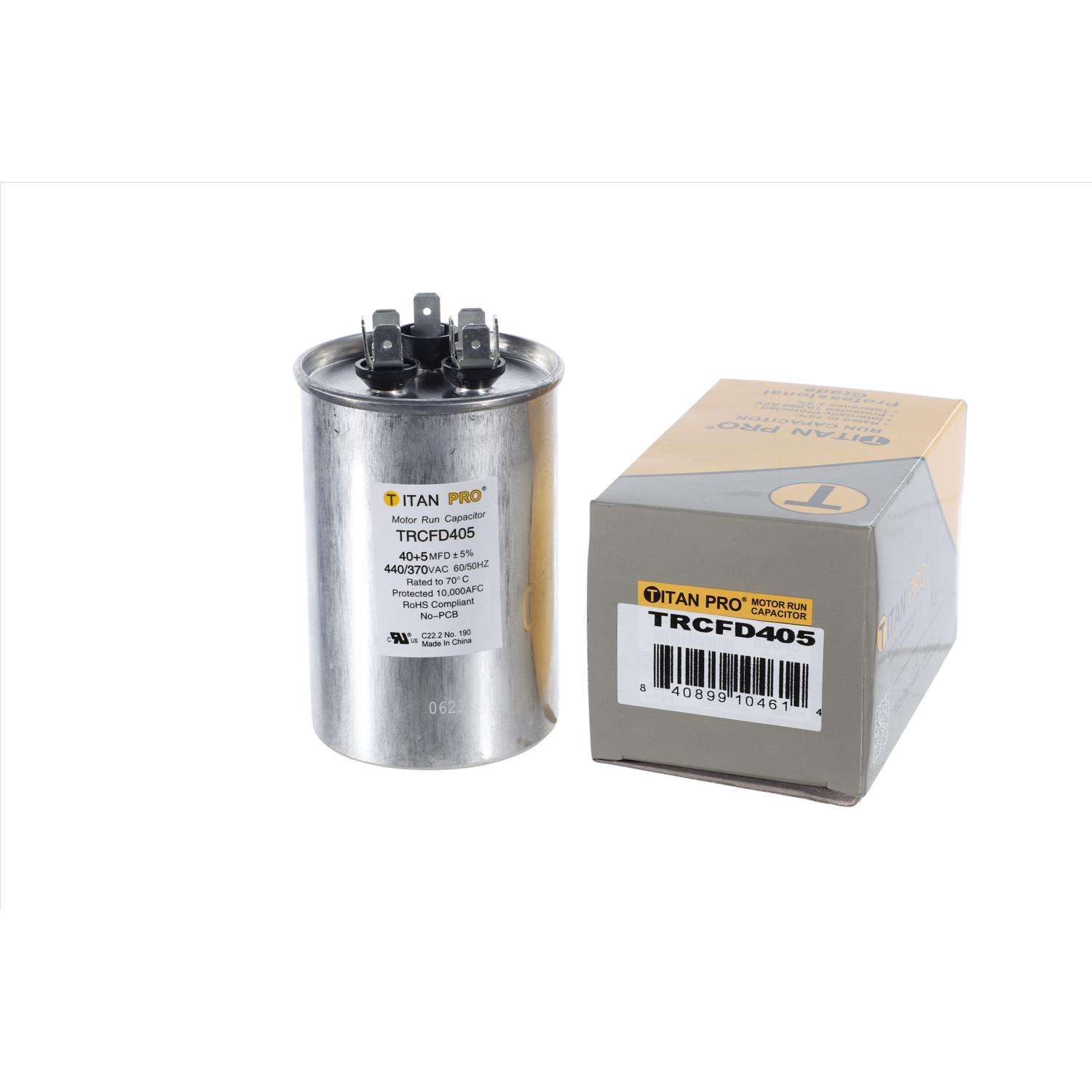

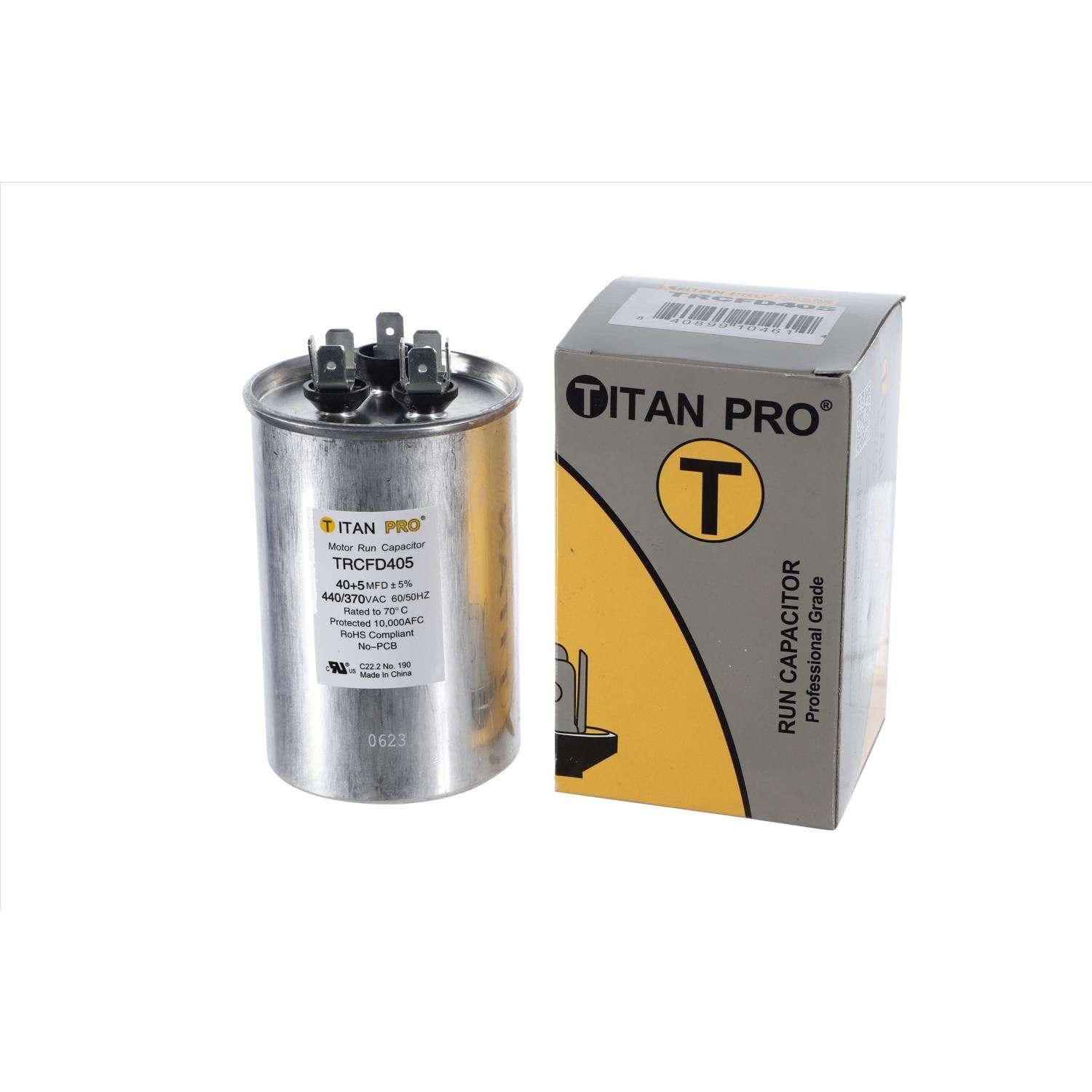

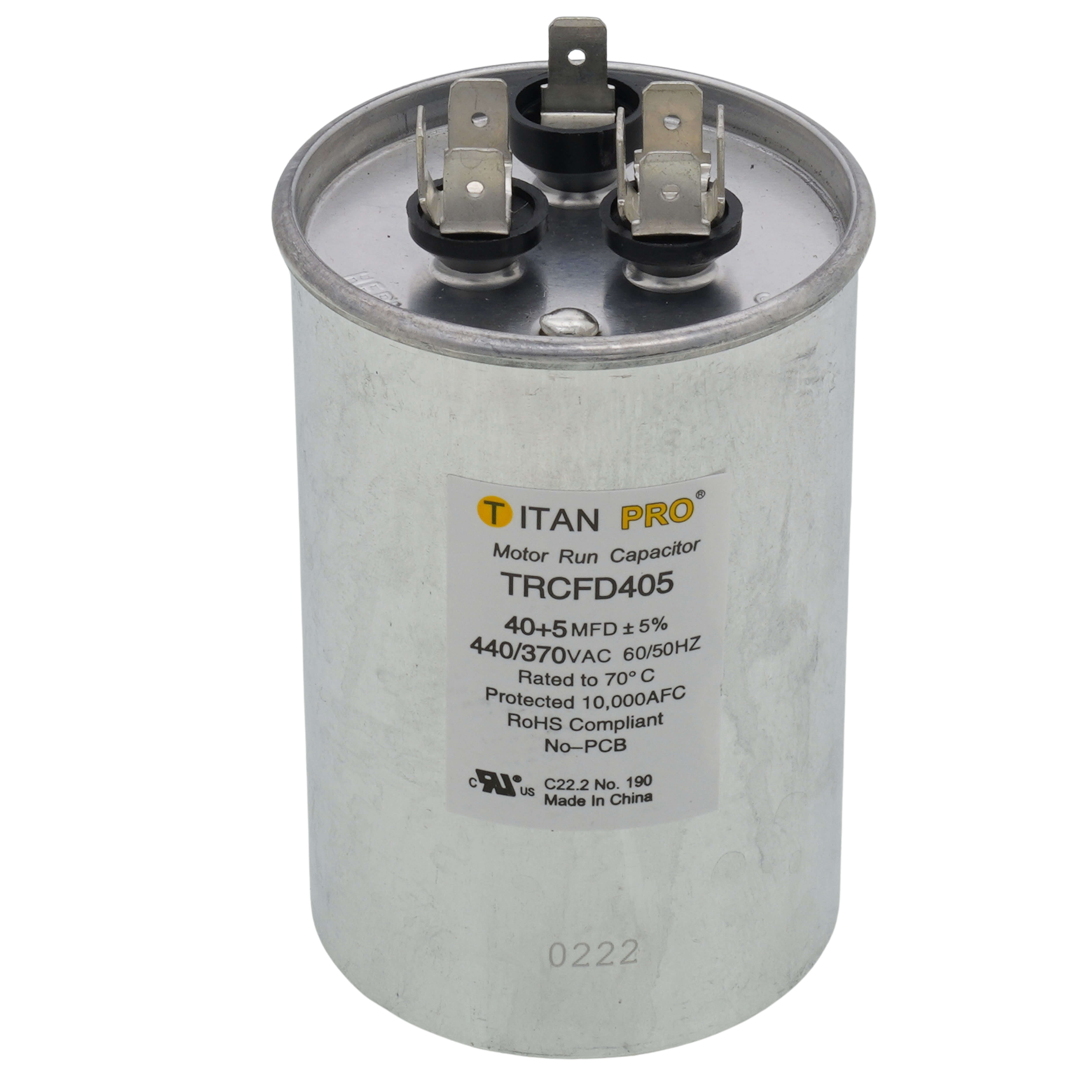

The TITAN PRO TRCFD405 is a motor dual run capacitor with capacitance of 40/5 MFD and an operating voltage of 370-440V. These dual run motor capacitors have a round shape and contain two capacitance values in a single unit. It can connect to two motors, such as a blower and a compressor placed close together in HVAC applications.
- Round shape
- Contains two capacitance values in a single unit
- Can replace two single run capacitors
Product Highlights
This motor dual run capacitor is suitable for use with electric motors, HVAC applications, and other motor-driven equipment.
Product Information
Standard Information
-
Brand: TITAN PRO
-
Manufacturer Part Number: TRCFD405
-
Country of Origin: China
Technical Specifications
-
Shape: Round
-
Capacitance: 40/5 MFD
-
Maximum Voltage: 440 Volts
-
Operating Voltage: 440 Volts
-
Frequency: 60/50 Hz
-
Standards: IEC 60252-1:2001
-
Case Material: Aluminum
-
Overall Height: 3 9/16 in
-
Terminal Type: 1/4 in Male Quick-Connect
-
Cover Material: Steel
-
Terminal Gender: Male
-
Min. Temperature: -40 Degrees C
-
Max. Temperature: 70 Degrees C
-
Motor Capacitor Type: Motor Dual Run Capacitor
-
Number of Terminals: 3.0
-
Voltage: 440/370V AC
-
Housing Shape: Round
-
Overall Diameter: 2-3/8 in
-
Operating Temperature - Minimum: -40 °C
-
Operating Temperature - Maximum: 70 °C
-
Housing Material: Aluminum
-
Housing Height: 3-9/16 in
-
Terminal Tab Width: 1/4 in
-
Terminal Connection Type: Quick Connect
-
EIA Tolerance Code: A
-
Item: Motor Run Capacitor
-
Microfarad Rating: 40/5
-
Hz: 60/50
-
Diameter: 2 3/8 in
-
Case Height: 3 9/16 in
-
Overall Depth: 2 3/8 in
-
Overall Width: 2 3/8 in
-
EIA UL Base: A
-
Temp. Range: -40 Degrees to 70 Degrees C
-
For Use With: Electric Motors
-
Connection Type: Quick Connect
-
Material: Aluminum
-
Certification: Ul
-
Included Components: Capacitor
-
Sub-brand: Titan Pro
-
Manufacturer Part Number: TRCFD405
