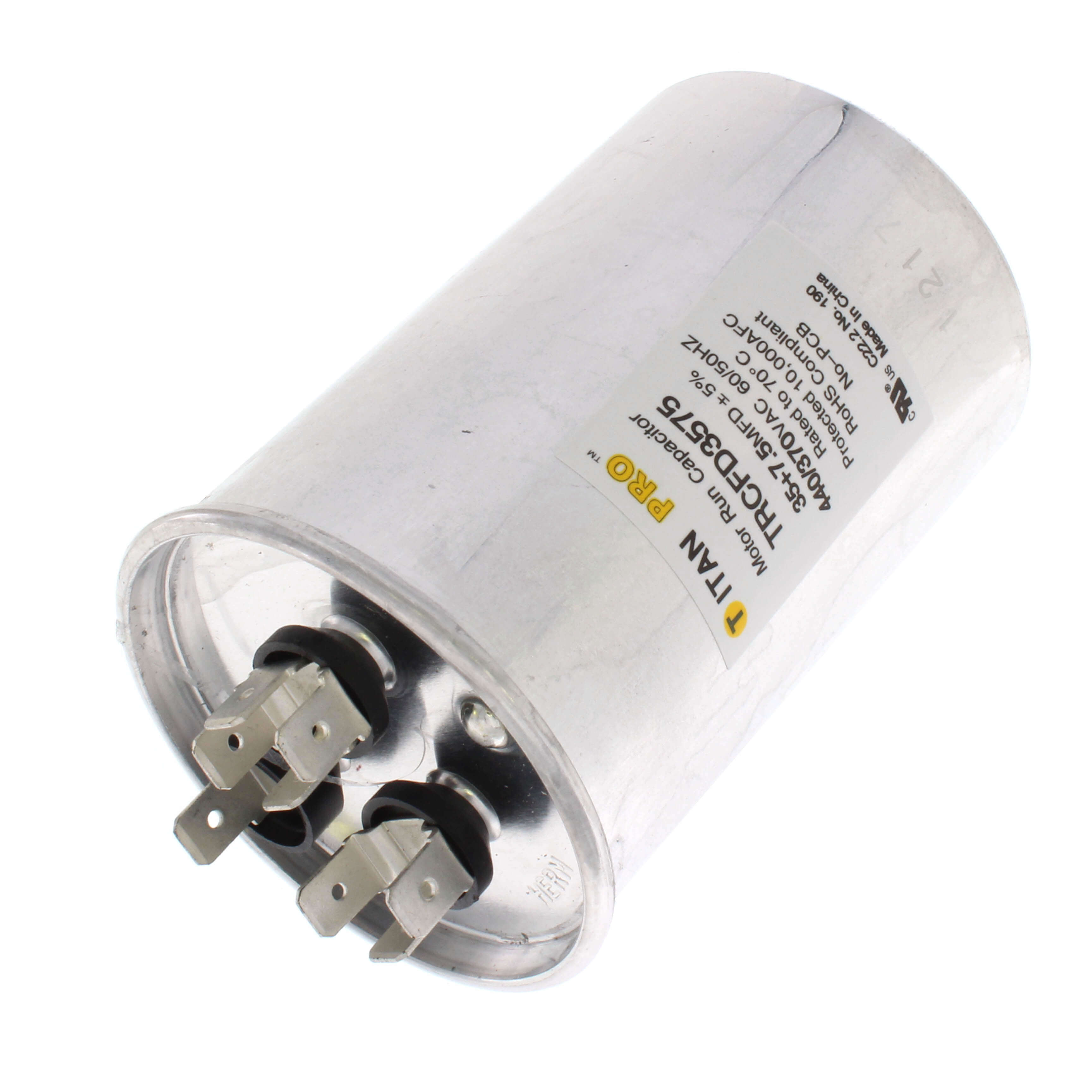

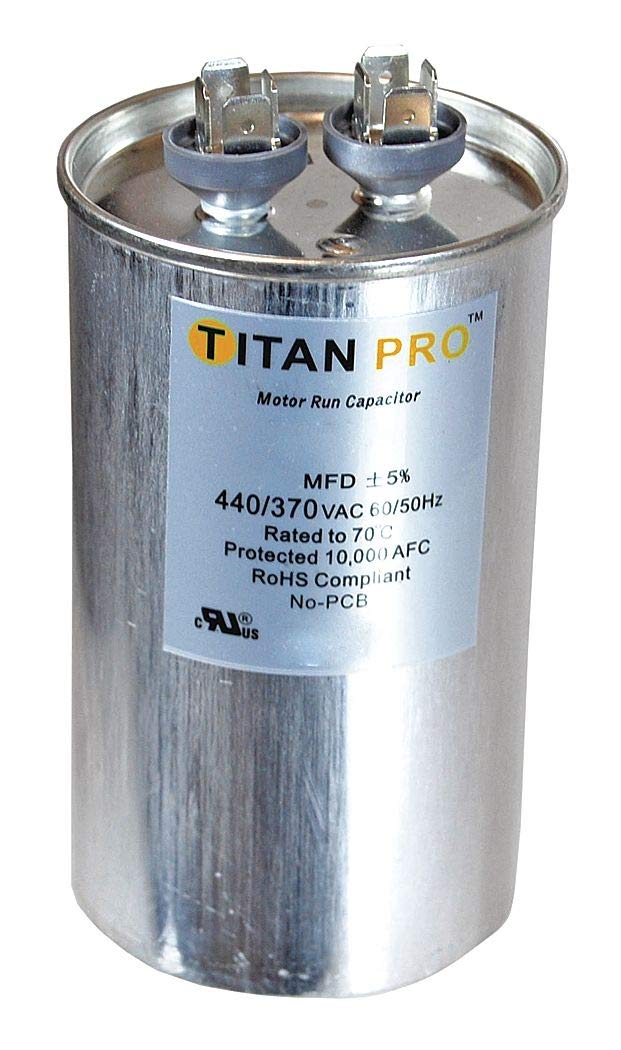

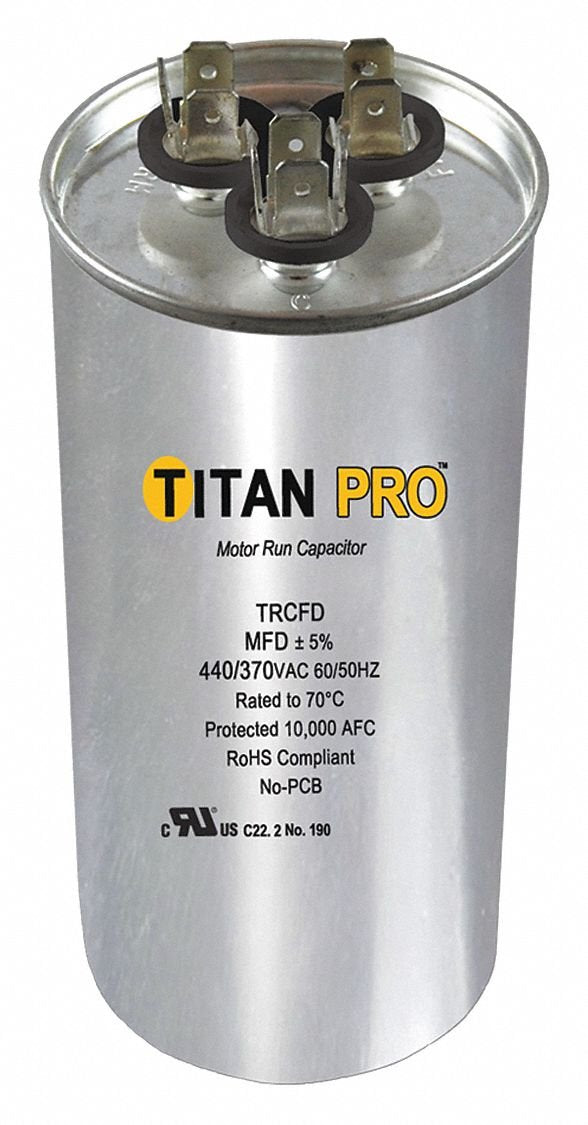

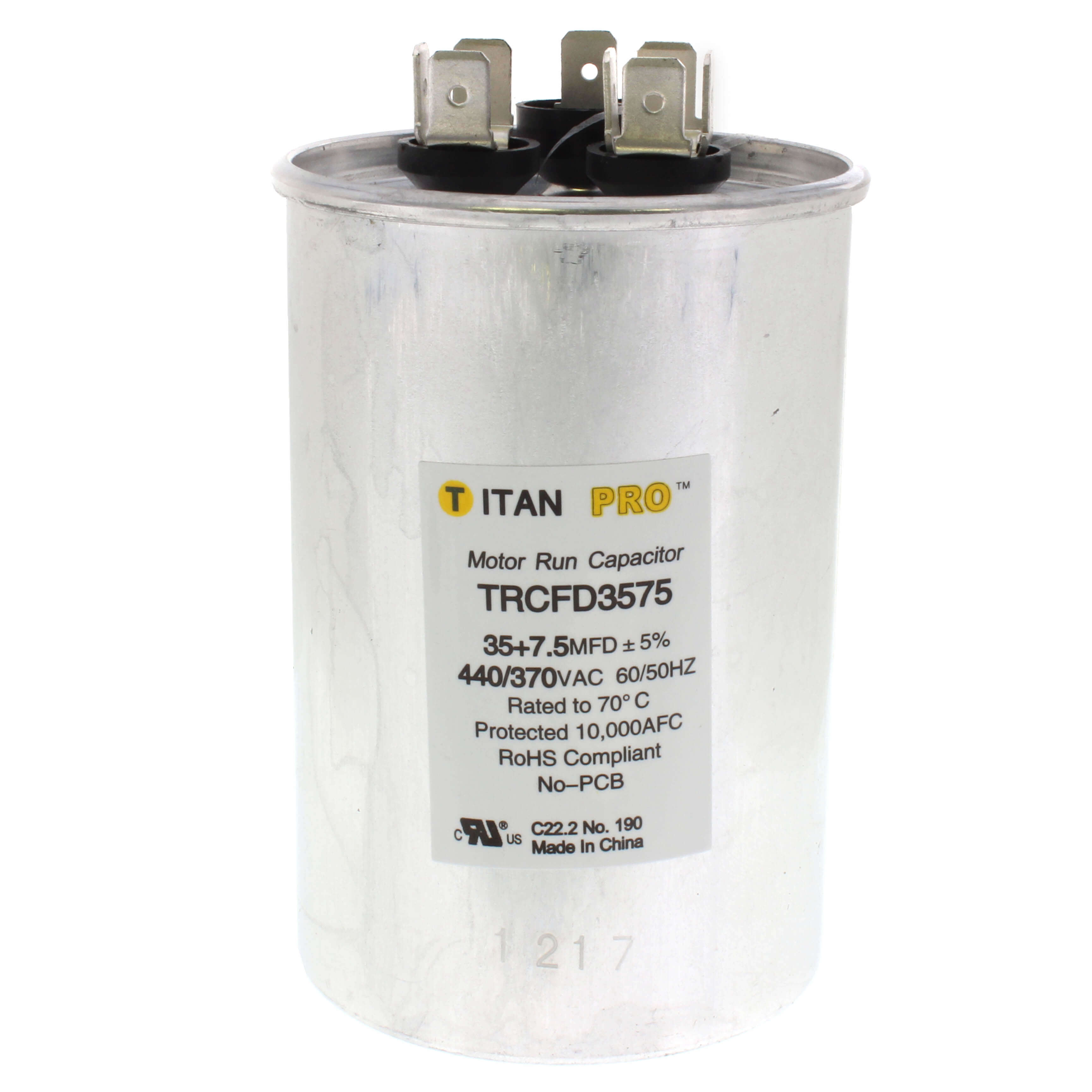

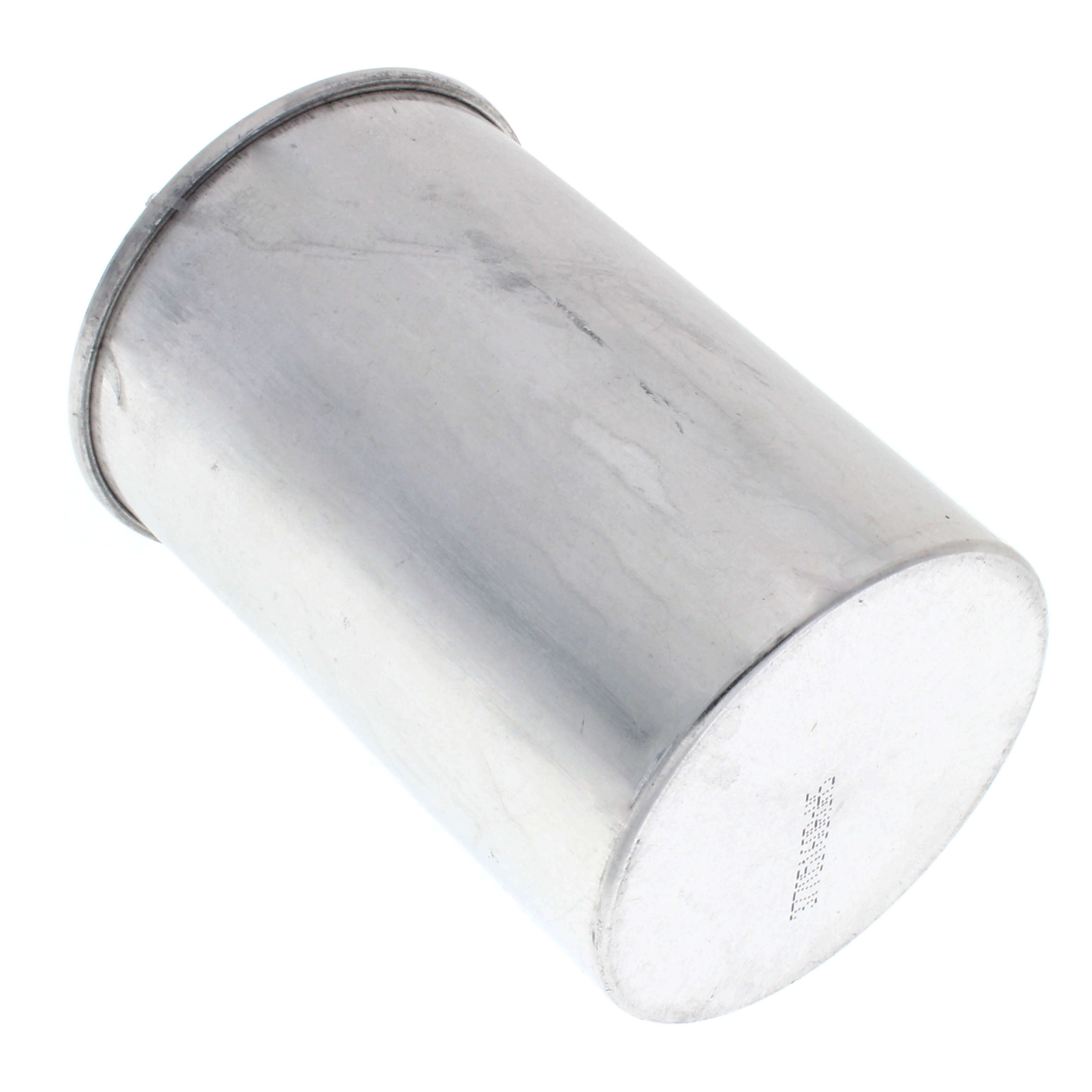

Titan Pro TRCFD3575 Motor Dual Run Cap 35/7.5 MFD 370-440V

Product Description

The TITAN PRO TRCFD3575 motor dual run capacitor features a capacitance of 35/7.5 MFD and an operating voltage of 370-440V. This capacitor is designed for use with electric motors. It has a round shape and is constructed with an aluminum case and steel cover. It operates within a temperature range of -40 Degrees to 70 Degrees C.

• Capacitance: 35/7.5 Microfarad
• Voltage: 370-440V
• Operating Temperature: -40 Degrees to 70 Degrees C

Product Highlights

The TITAN PRO TRCFD3575 is a motor dual run capacitor with a round shape, aluminum case, and steel cover, designed for reliable performance in electric motor applications.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD3575
• Country of Origin: China

Technical Specifications

• Shape: Round
• Material: Aluminum
• Capacitance: 35/7.5 Microfarad
• Operating Voltage: 440 Volts
• Item: Motor Run Capacitor
• Voltage: 440/370V
• Hz: 60/50
• Diameter: 2"
• Case Height: 4-1/8"
• Overall Height: 4-5/8"
• Overall Width: 2"
• Overall Depth: 2"
• EIA UL Base: S
• Terminal Type: 1/4" Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• Capacitor Voltage: 370-440VAC
• Motor Capacitor Type: Motor Dual Run Capacitor
• Microfarad Rating: 35/7.5
• MPN: TRCFD3575
• Manufacturer: TITAN PRO
• Brand: Titan Pro
• Product Type: Capacitor
• Frequency: 60/50 Hz
• For Use With: Electric Motors
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1.0
• Terminal Tab Width: 1/4 in
• Number of Terminals: 3.0
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
• Mfd: 35/7.5
• Volts: 440/370
