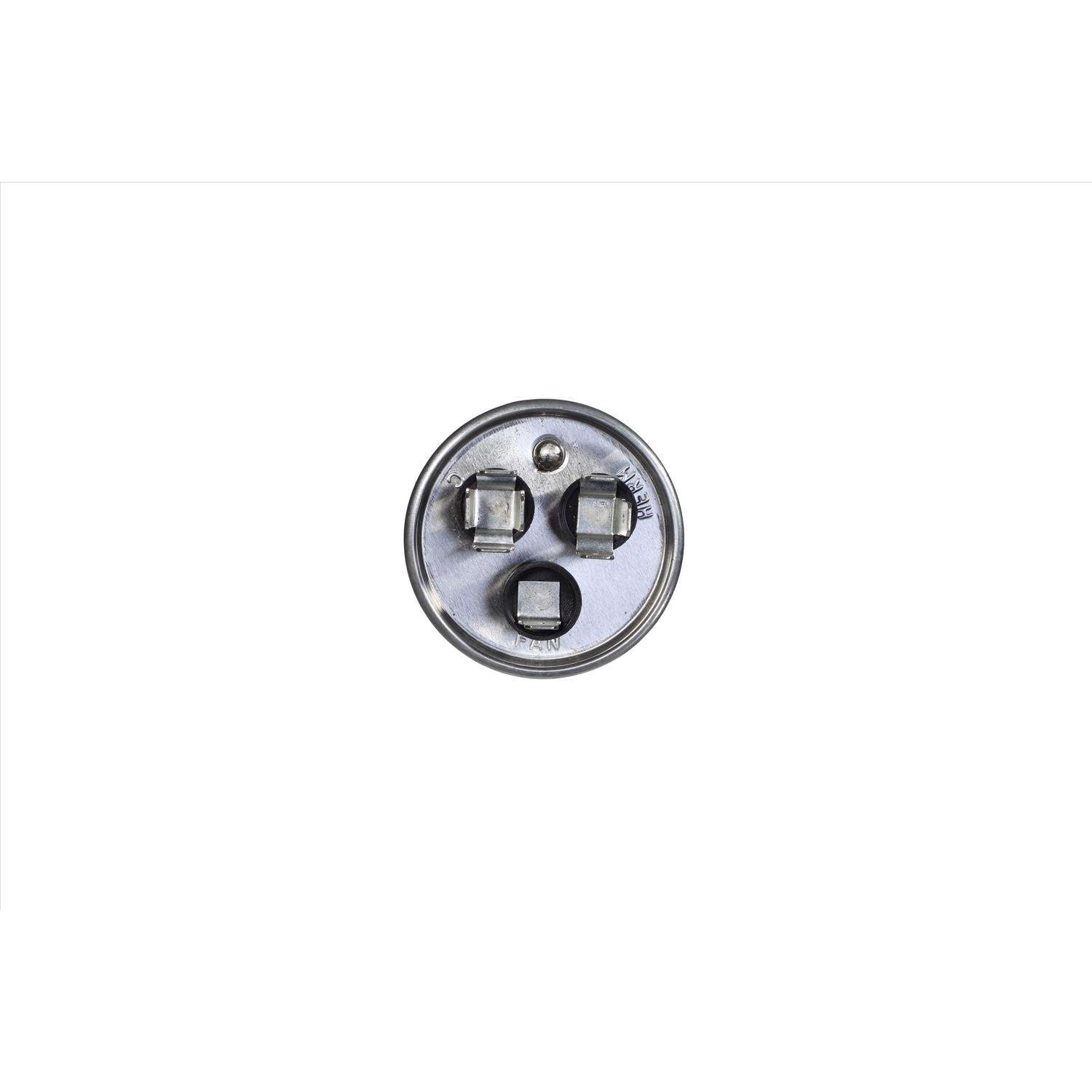

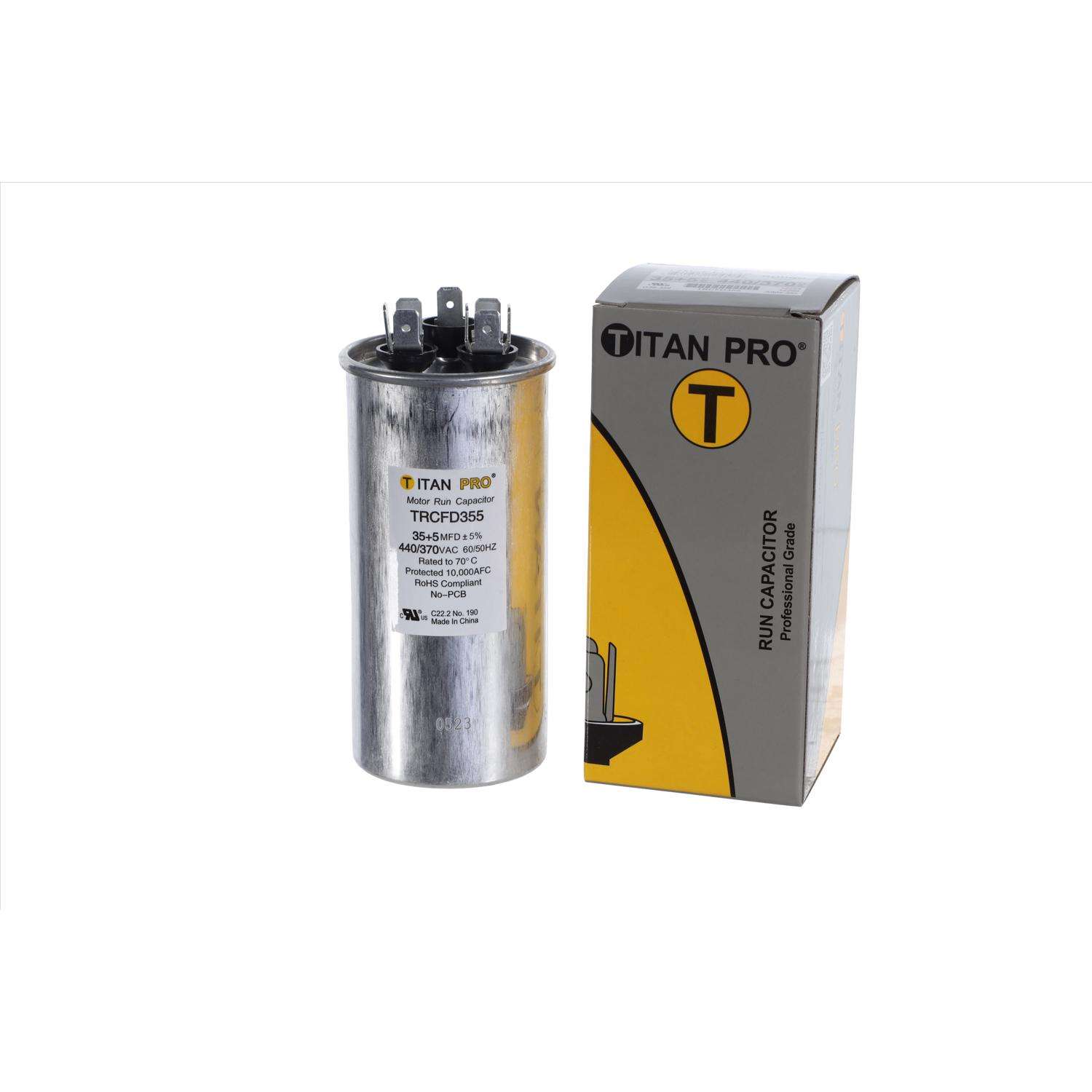

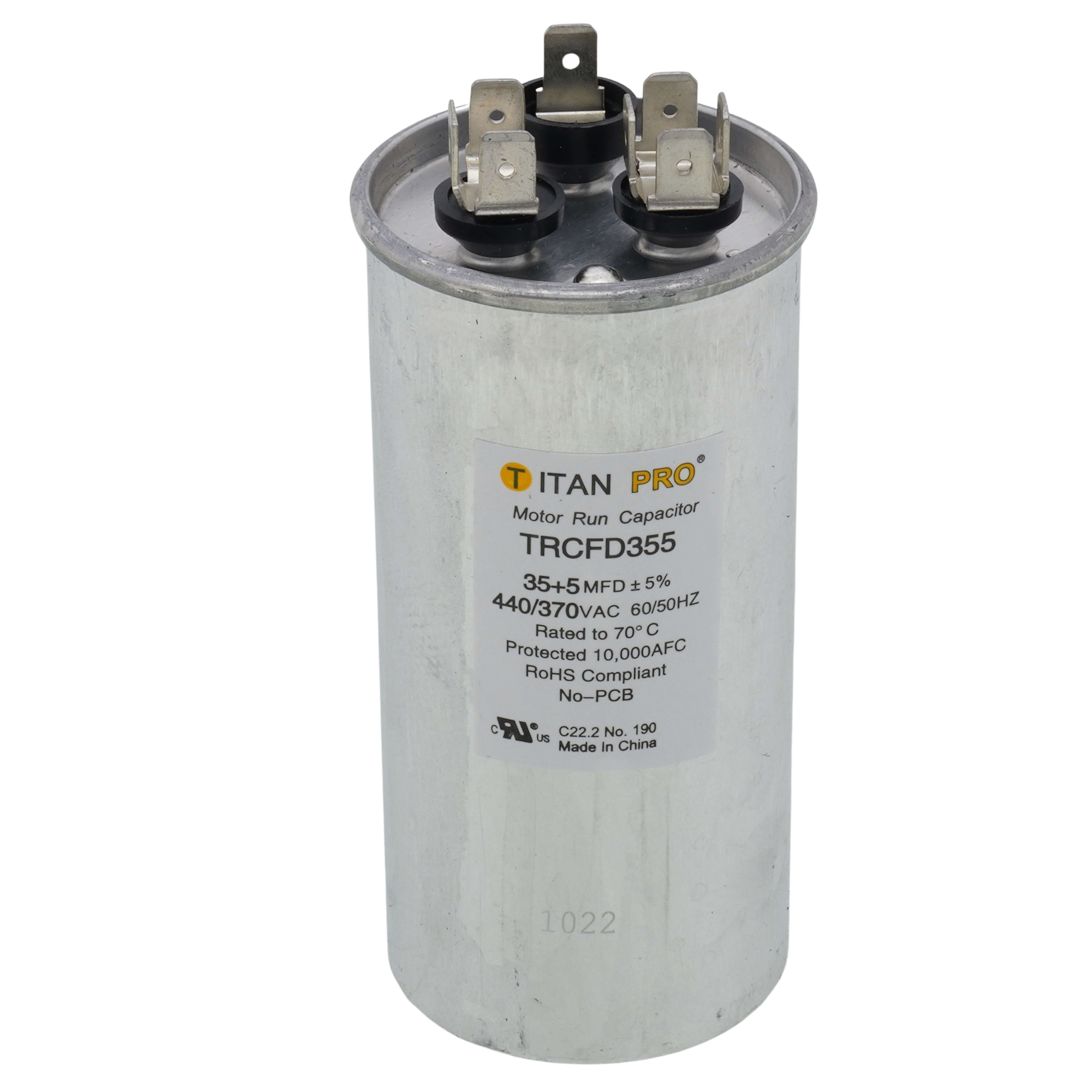

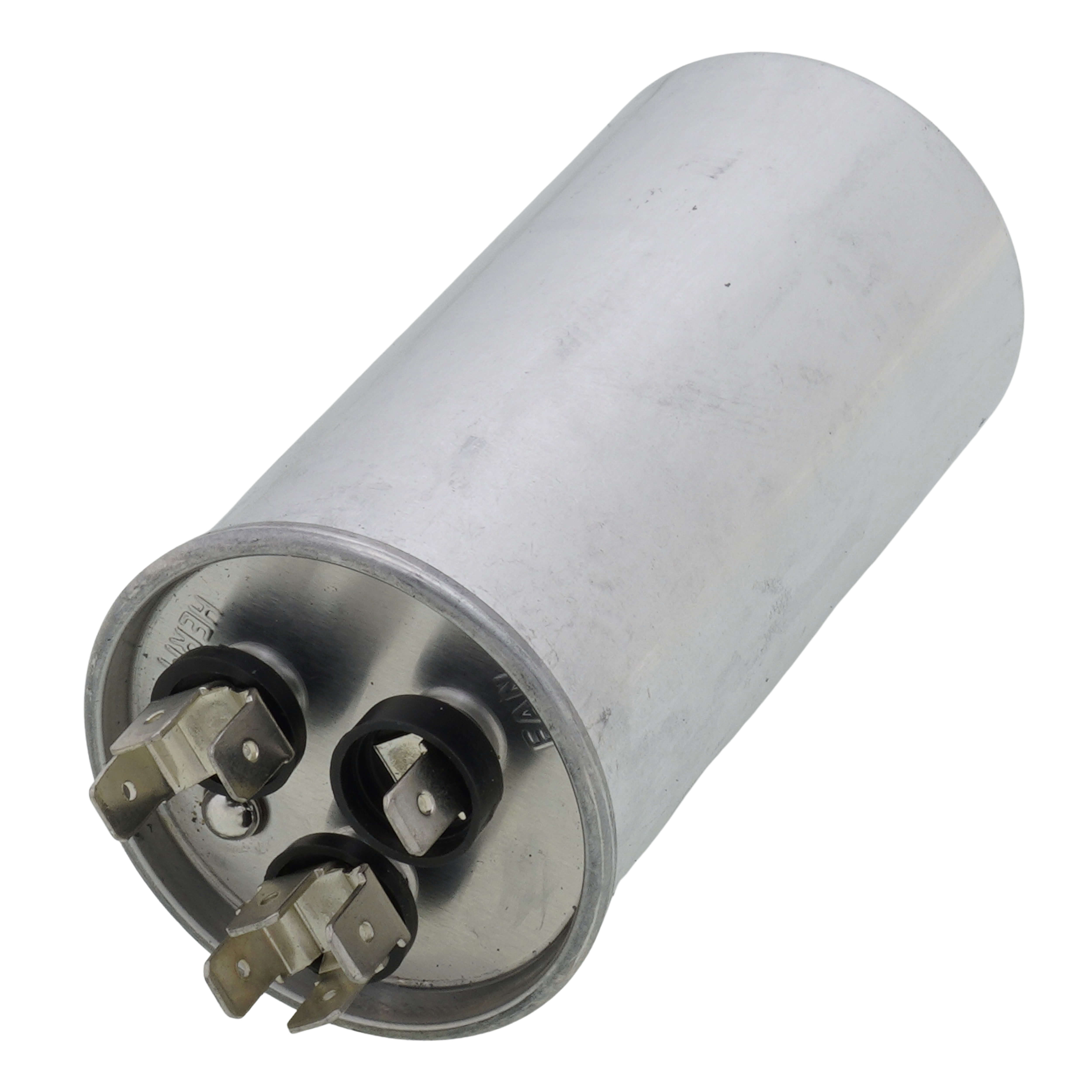

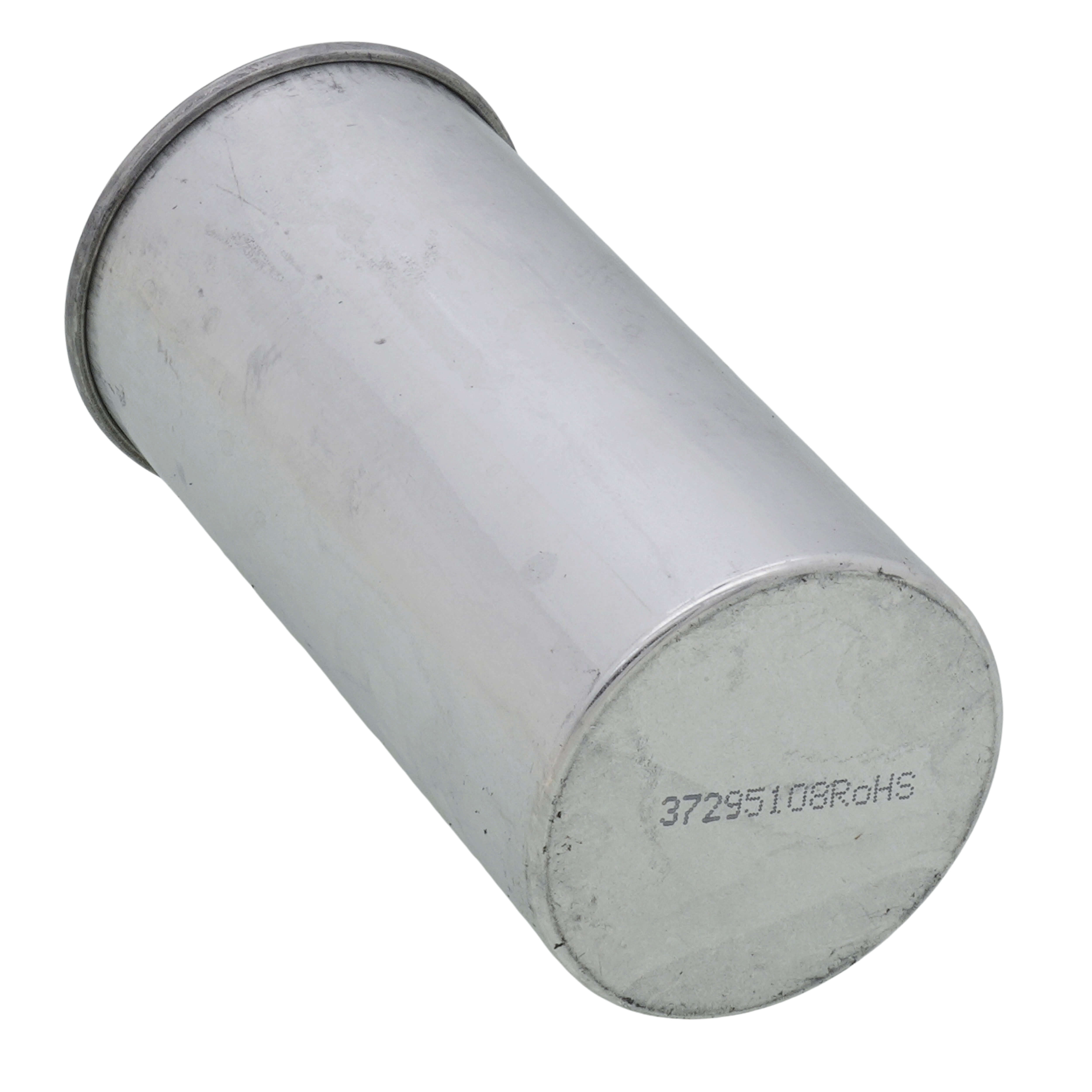

Titan Pro TRCFD355 Round Motor Dual Run Capacitor, 35/5 Microfarad Rating, 370-440VAC

Product Description

The TITAN PRO TRCFD355 round motor run capacitor features a 35/5 microfarad rating and a voltage of 370-440VAC. This dual run capacitor is designed for use with electric motors. It has a round shape, aluminum case material, and steel cover material. The capacitor is UL Recognized and operates within a temperature range of -40 Degrees to 70 Degrees C.

• Microfarad Rating: 35/5
• Voltage: 370-440V
• Terminal Type: 1/4" Male Quick-Connect

Product Highlights

This TITAN PRO capacitor ensures reliable motor performance with its robust construction and adherence to international standards.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD355
• Country of Origin: China

Technical Specifications

• Microfarad Rating: 35/5
• Voltage: 370-440V
• Frequency: 60/50 Hz
• Shape: Round
• Diameter: 2"
• Case Height: 4-1/8"
• Overall Height: 4-5/8"
• Overall Width: 2"
• Overall Depth: 2"
• EIA UL Base: S
• Terminal Type: 1/4" Male Quick-Connect
• Operating Temperature - Minimum: -40 Degrees C
• Operating Temperature - Maximum: 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• MPN: TRCFD355
• Manufacturer: TITAN PRO
• Brand: TITAN PRO
• Product Type: CAPACITOR
• Capacitor Voltage: 440/370V AC
• Item: Motor Dual Run Capacitor
• EIA Tolerance Code: A
• Number of Terminals: 3.0
• Motor Capacitor Type: Motor Dual Run Capacitor
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
• Housing Shape: Round
• Capacitance: 35/5 MFD
• Overall Diameter: 1-31/32 in
• Housing Height: 4-1/8 in
• Terminal Gender: Male
• Terminal Tab Width: 1/4 in
• Number of Pieces: 1
• Terminal Connection Type: Quick Connect
• Sub-brand: Titan Pro
• Model: TRCFD355
• Type: Run Capacitor
