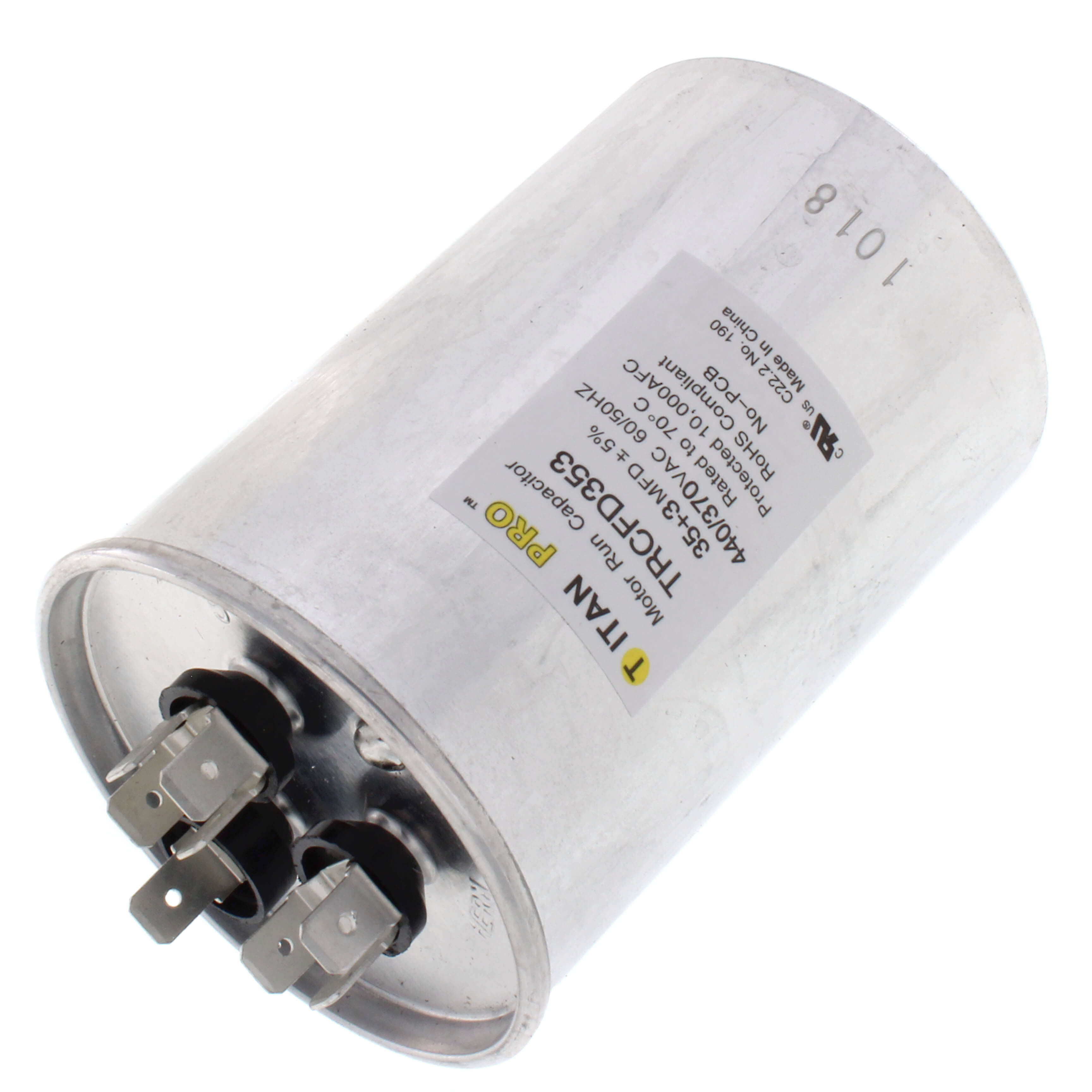

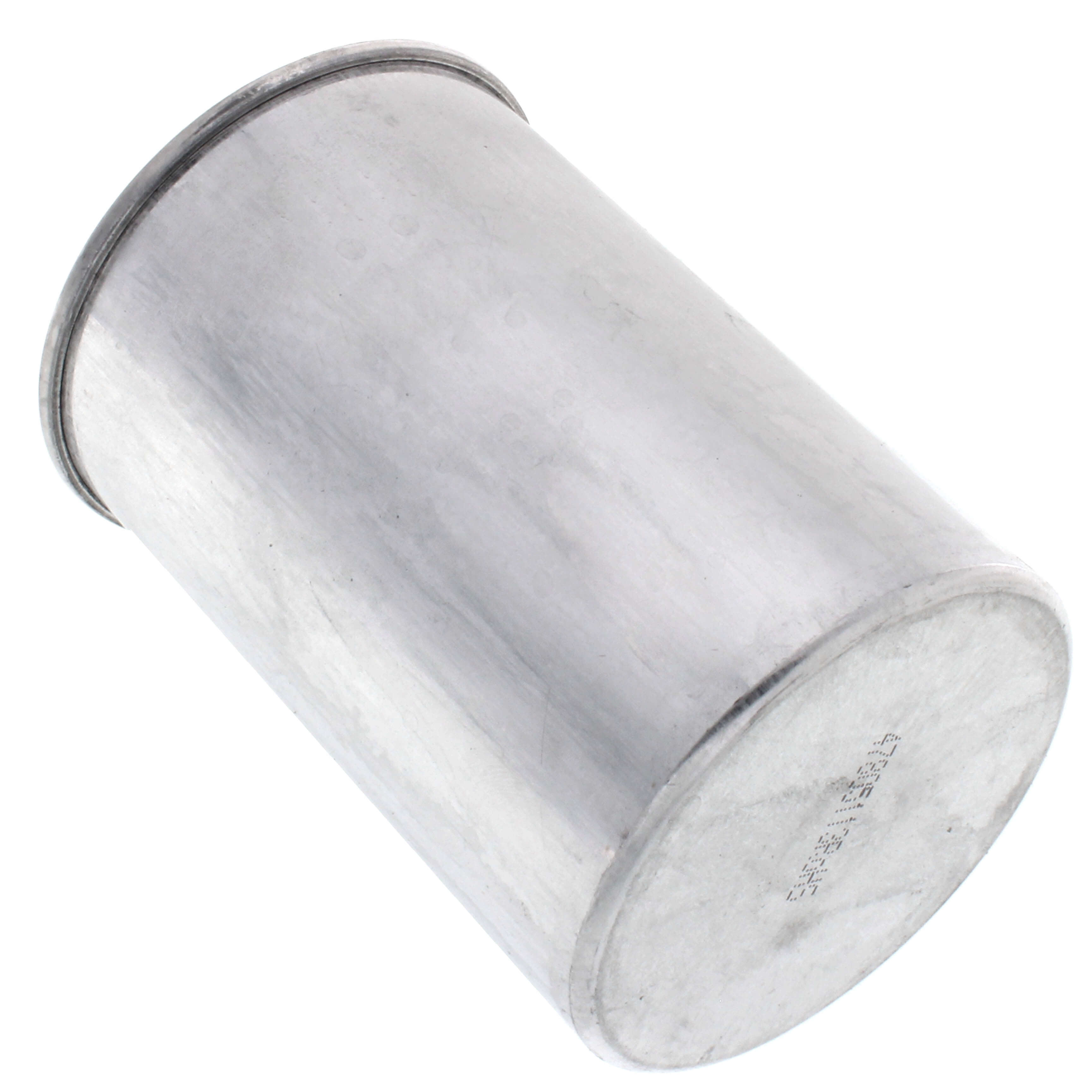

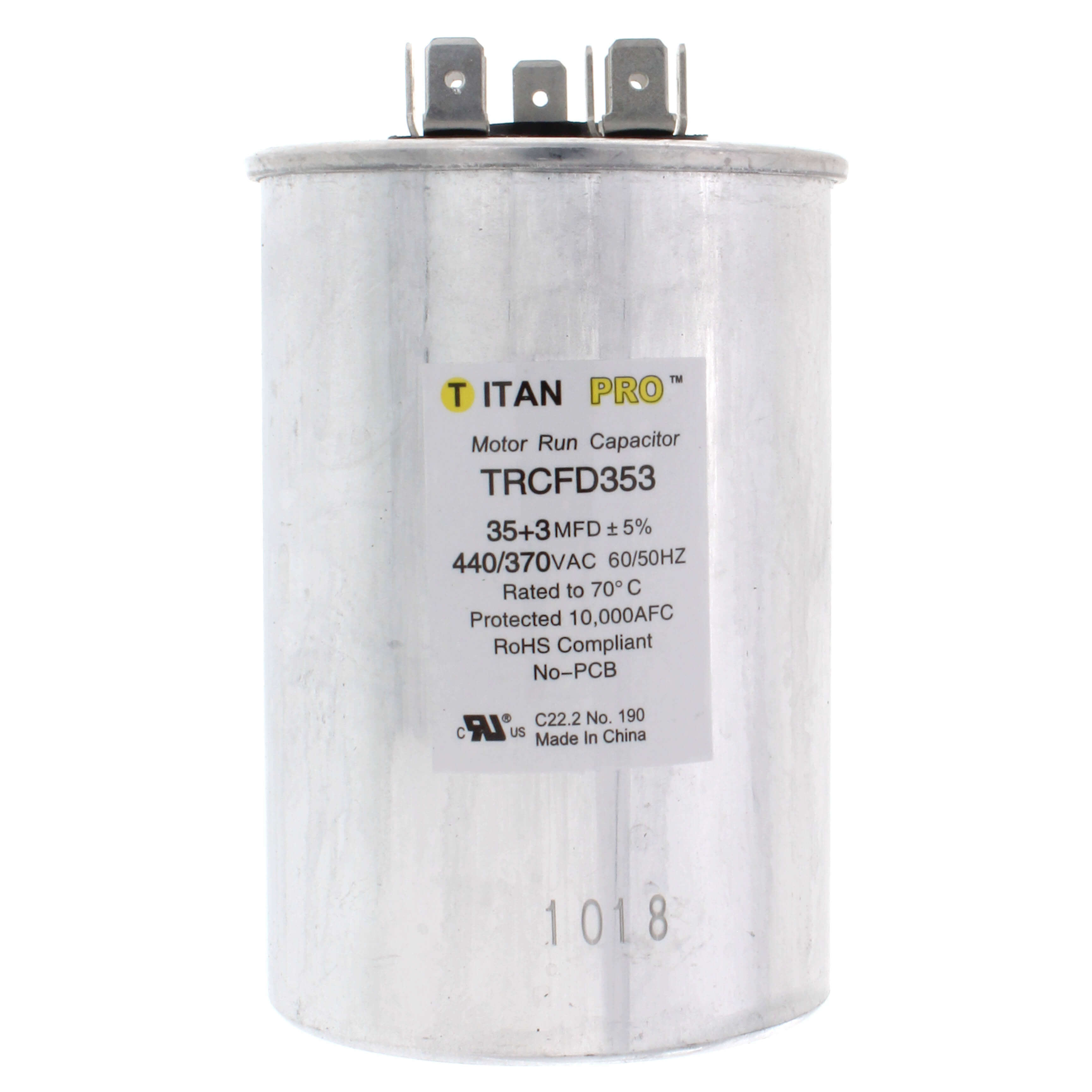

Titan Pro TRCFD353 Motor Dual Run Cap, 35/3 MFD, 370-440V REPLACEMENT 12077/12082/12977

Product Description

The TITAN PRO TRCFD353 is a motor dual run capacitor with a microfarad rating of 35/3 and a voltage of 370-440V. It features a round shape, aluminum case material and steel cover material. This capacitor is suitable for various motor applications and is UL Recognized (E185318).

• Terminal Type: 1/4" Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C
• 60,000 hours operational life

Product Highlights

This motor dual run capacitor ensures reliable performance and is built to international standards. It is 2-1/2 In. Diameter, 2-15/16 In. Case Height, 3-7/16 In. Overall Height.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD353
• Country of Origin: China

Technical Specifications

• Capacitor Voltage: 370-440VAC
• Standards: UL Recognized (E185318)
• Temp. Range: -40 Degrees to 70 Degrees C
• Terminal Type: 1/4" Male Quick-Connect
• Frequency: 60/50 Hz
• Case Material: Aluminum
• Capacitor Shape: Round
• Cover Material: Steel
• Overall Depth: 2-1/2"
• Item: Motor Dual Run Capacitor
• Motor Capacitor Type: Motor Dual Run Capacitor
• Microfarad Rating: 35/3
• Case Height: 2-15/16"
• Diameter: 2-1/2"
• Overall Width: 2-1/2"
• Overall Height: 3-7/16"
• EIA UL Base: T
• Capacitance: 35/3 uF
• Shape: Round
• Type: Dual Section
• Voltage Rating: 440 VAC
